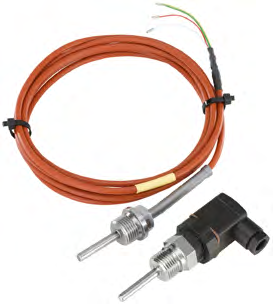

Type TST001 Resistance Thermometer
The Type TST001 resistance thermometer is designed for temperature measurement with a Pt100 probe integrated into a stainless steel tube. It is suitable for neutral and aggressive fluids and features a welded measuring unit according to DIN IEC 751 standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to dimensions section |
| Protection Tube Material | Stainless steel 1.4571 |
| Circuit Type | 2-wire circuit |
| Connection | External thread G½A |
| Output Signal | 4-20mA (0-150°C) |
| Measuring Current | Approx. 1mA |
| Measuring Range | 0-150°C |
| Accuracy | Class B (ΔT = ±0.3±0.005×T°C) |
| Protection Class | IP67 with connector |
| Electrical Connections | Lumberg connector with/without cable |
| Ambient Temperature | Max.+85°C |
