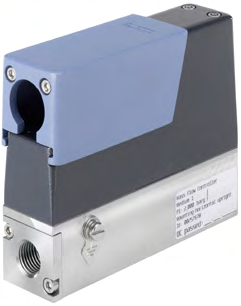

Type 8762 Electronic Pressure Controller (EPC)
The Type 8762 EPC is a precise electronic pressure controller designed for upstream pressure control in fluid systems. It is suitable for pressure control up to 4 bar abs and integrates PI control algorithms for enhanced performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 4 |
| Material | FKM or EPDM (depending on fluid) |
| Housing | Pressure-resistant |
| Base | Stainless steel 1.4401/316L |
| Materials in contact with medium | Stainless steel 1.4301/302,1.4113/434,1.4305/303,1.4404/316L |
| Weight | Approx. 500g |
| LED Indicator | RGB-LED compliant with NAMUR NE107 |
| Pressure Range | 0.4bar abs |
| Flow Range (Q) | <200l/min |
| Control Accuracy | ±0.25% |
| Repeatability | ±0.1% |
| Control Ratio | 1:50 |
| Normally Closed | Yes |
| Power Supply Voltage | 24VDC |
| Power Consumption | Max. 3.65W |
| Setpoint Error | ±2% |
| Setpoint Hysteresis | ±10% |
| Electrical Connection | M12 plug, 5-pin |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -10°C to +70°C |
| Relative Humidity | <95%, non-condensing |
| Protection Class | IP65 |
| Ambient Temperature | -10°C to +50°C |

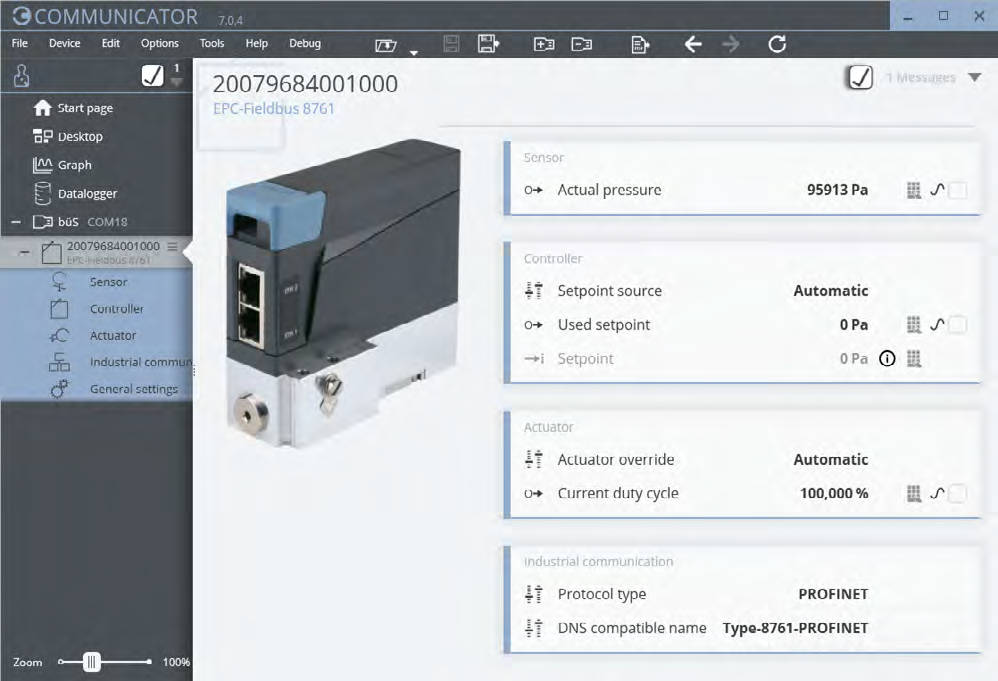

| Software | Burkert Communicator software |
