8762型Email 压力控制器 (EPC)
The 8762 Electronic Pressure Controller (EPC) is a precise fluid pressure control device designed for upstream pressure regulation. It is suitable for pressure control up to 4 bar abs and features integrated PI control algorithms for enhanced performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 4 |
| Material | FKM or EPDM (depending on fluid) |
| Pressure Rating | 0.4bar abs |
| Flow range | <200l/min |
| Control Accuracy | ±0.25% |
| Repeatability | ±0.1% |
| Control Ratio | 1:50 |
| Power Supply Voltage | 24VDC |
| Power Consumption | max. 3.65W |
| Ambient Temperature | -10°C to +70°C |
| Storage Temperature | -10°C to +70°C |
| Relative Humidity | <95%, non-condensing |
| Protection Class | IP65 |
| Weight | Approx. 500g |
| Interface Type | bus/CANopen, PROFIBUS DPV1 |
| Electrical Connection | M12 plug, 5-pin |

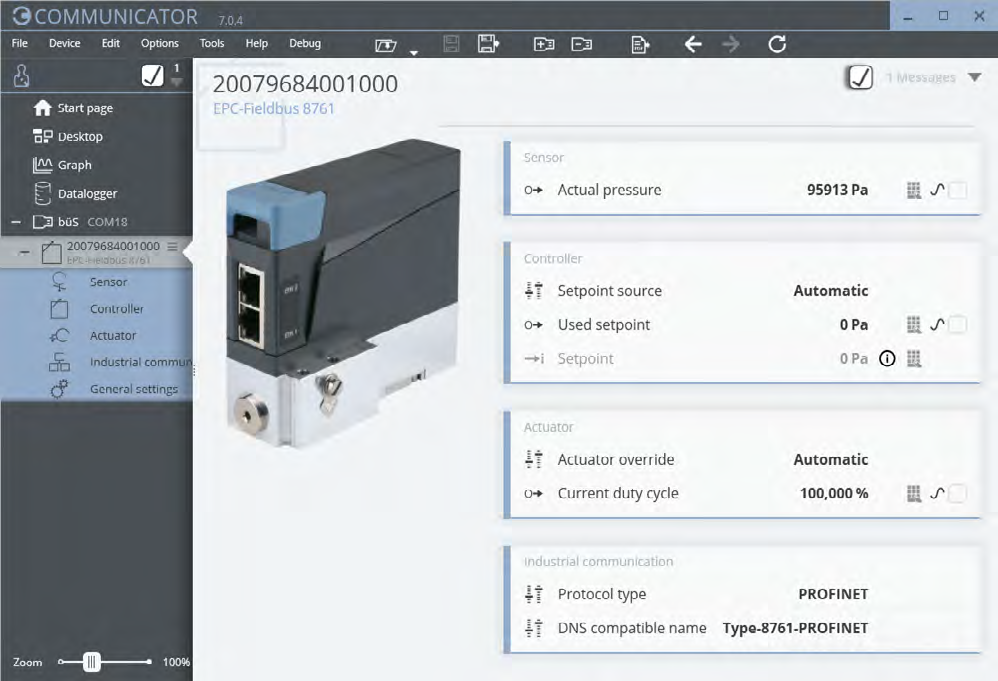

| Software | Bürkert Communicator software |
