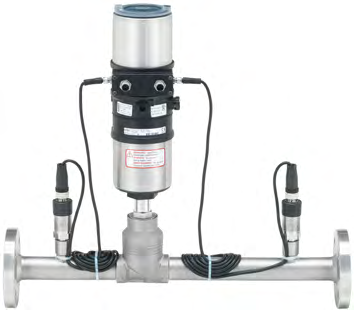

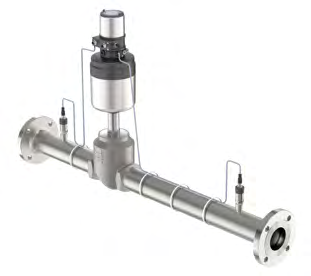

8750 Gas Flow Controller
The 8750 gas flow controller is designed for precise and automated gas flow control, ensuring stable settings unaffected by pressure fluctuations.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | DN15-DN100 |
| Material | Stainless steel |
| Material | PTFE |
| Nominal Pressure | PN25 (DIN EN 1333), Class 150 (DIN EN 1759) |
| Control Valve Pressure Range | 0-16bar |
| Operating Temperature Range | -10°C to +100°C |
| Flow Range | 0-100mbar to 0-16bar |
| Pressure Measurement Range | 0-100mbar to 0-16bar |
| Pressure Measurement Error | ≤0.5% F.S. |
| Electrical Connection | 24VDC ±10% |
| Operating Current | ≤10% |
| Interface Type | M12 connectors, PROFIBUS DPV1, Ethernet/IP, PROFINET |
| Working Medium | Air |
| Working Medium | oxygen |
| Working Medium | carbon dioxide |
| Working Medium | neutral gases |
| Working Medium | flammable gases |
| Control Signal | 4-20mA, 0-20mA, 0-10V, 0-5V |
| Ambient Temperature | -10°C to +55°C |
| Protection Class | IP65/IP67 |
| Kv Value | Varies by DN size, e.g., DN15: 2.1, DN100: 140 |
| Flange Connection | DIN EN 1092, ANSI B16.5, JIS 10K |
| Actuator Dimensions | DN15: Ø91mm, H383mm; DN100: Ø261mm, H650mm |
