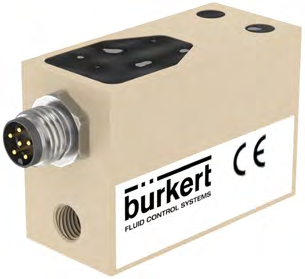

8084型液体用差压流量传感器
The 8084 model is a differential pressure-based multifunctional liquid flow sensor designed for dynamic calculation. It is particularly suitable for applications requiring high precision and reliability in liquid flow measurement.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to page 5 |
| Material | PEEK, FKM, Stainless Steel 1.4301, Rubber |
| Measuring Range | ±15±15ml/min, ±30±30ml/min, ±100±100ml/min, ±2000±2000ml/min |
| Calibration Range | ±15±15ml/min, ±30±30ml/min, ±100±100ml/min, ±2000±2000ml/min |
| Accuracy | ±2% F.S. |
| Pressure Loss | 0.1mbar, ±5mbar (±0.3% F.S.) |
| Temperature Range | 0 to +100°C |
| Temperature Accuracy | ±0.05°C |
| Electrical Voltage | 5VDC ±5% |
| Power Consumption | Max 0.5W |
| Electrical Connection | RS-232, Digital Output 5V (PWM, PPM), I²C |
| Operating Pressure | 0 to 1.8bar abs |
| Medium Viscosity | Max 10mPas |
| Connection Type | Molex, M8 |
| Environmental Rating | IP20, IP65 |
| Operating Temperature | -10 to +50°C |
| Storage Temperature | -10 to +80°C |
