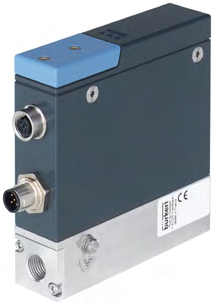

8752 Liquid Flow Controller (LFC)
The 8752 Liquid Flow Controller enables dynamic control of liquid flow rates up to 600 ml/min (36 l/h). It is designed for precise flow measurement and control in industrial applications, featuring IP65 protection and compatibility with various communication protocols.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 4 and 5 |
| Material | FKM |
| Material | EPDM |
| Material | FFKM |
| Sealing | FFKM (optional) |
| Base Body | 1.4404/316L |
| Materials in Contact with Media | 1.4404/316L, 1.4435/316L, PCTFE, Sealing |
| Weight | Approx. 1000g |
| LED Indicator | RGB-LED compliant with NAMUR NE107 standard |
| Flow Range (Qn) | 0.9-55 l/min (15-916.67 ml/min) |
| Pressure Range | Max 6 bar |
| Measurement Accuracy | ±0.5% o.r. ±0.5% f.s. (under defined conditions) |
| Repeatability | ±0.5% f.s. |
| Response Time (t95) | <500ms |
| Electrical Supply | 24V DC |
| Power Consumption | LFM: <1W, LFC: max 3-6W (depending on model) |
| Residual Ripple | ±2% |
| Electrical Connection | M12 plug, 5 pins |
| Media | Water |
| Ambient Temperature | -10°C to +40°C |
| Viscosity | 0.4 to 4mPa·s |
| Analog Interface | 0-20mA, 4-20mA, 0-10V, 0-5V |
| Digital Communication Interface | büS/CANopen, PROFIBUS DPV1, Industrial Ethernet |
| Pipeline Interface | G1/4, NPT1/4 |
| Protection Level | IP65 |
| Environmental Conditions | -10°C to +70°C, Relative Humidity: 55°C, <95%, No Condensation |
