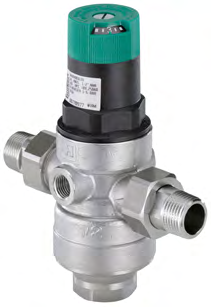

Type TFU006 Pressure Regulator for Water
The Type TFU006 pressure regulator is designed for water systems, ensuring controlled pressure reduction. It is available in brass, stainless steel, and plastic variants, suitable for various applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Seal Material | EPDM |
| Body Material | Brass DZR, Stainless Steel 1.4305, Technopolymer |
| Diaphragm Material | EPDM |
| Valve Seat Material | Stainless Steel |
| Valve Type | Single seat valve |
| Valve Type | relieved |
| Filter | Mesh-size 0.51mm |
| Inlet Pressure | Max. 25bar |
| Outlet Pressure | 1.5...6bar |
| Default Setting | 3bar |
| Flow Rate | 1.2...12m³/h |
| Noise Class | <30dB |
| Medium Temperature | +40°C to +70°C |
| Pressure Gauge Connection | G1/4 |
| Port Connections | 1/2" to 2" (threaded nozzle) |
| Installation Position | Horizontal or vertical |
| Installation Position | preferably with spring cap upright |
| Plastic Body Pressure Range | 0...4bar, 0...8bar, 0...12bar |
| Plastic Body Port Connections | G1/8 and G1/4 |
| Control Panel Nut | M30x1.5, POM |
| Mounting Bracket Dimensions | 65x38x44.4mm |
