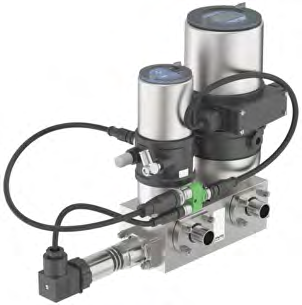

Type 8880 Vessel Pressure Controller
The Type 8880 Vessel Pressure Controller is an advanced solution designed for maintaining defined pressure in containers containing air, nitrogen, or other gases. It is ideal for hygienic applications and closed processes, ensuring product protection and process efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Pressure | -0.9...6bar(g) (PB/PT), -0.9...25bar(g) (PW), -0.9...16bar(g) (PS) |
| Pilot Pressure | 5.5...7bar |
| Operating Voltage | 24VDC±10% |
| Residual Ripple | 10%, no technical direct current |
| Power Consumption | <10W (PB/PT/PW), <15W (PS) |
| Set-point Value Signal | 0/4...20mA, 0...5/10V |
| Analog Feedback | 0/4...20mA or 0...5/10V |
| Operating Media | Air, nitrogen, CO2, and other neutral gases |
| Medium Temperature | 0°C...+80°C (PB/PT), -40°C...+230°C (PW), 0°C...+50°C (PS) |
| Control Media | Air |
| Control Media | neutral gases |
| Welded Connection | Sizes on request |
| Clamp Connection | Sizes on request |
| Flange Connection | Sizes on request |
| Threaded Connection | Sizes on request |
| Electrical Connection | M16x1.5 cable Ø5...10mm, M12, 8-pin signal exchange, M12, 4-pin power supply |
| Ambient Temperature | -10°C...+55°C |
| Installation Position | Any |
| Installation Position | preferably with tank connection downwards |
| Service Interface | Connection with PC via USB port |
| Valve Type | Hygienic bellows control valve (PB/PT), Globe control valve (PW), Solenoid valve with media separation (PS) |
| Seat Size | 1.5...20 (PB/PT), 3...25 (PW), 1.4...4 (PS) |
| Kvs Values | 0.05...6.2m³/h (PB/PT), 0.1...12m³/h (PW), 0.055...0.37m³/h (PS) |
| Degree of Protection | IP65/IP67 |
| Explosion Protection | ATEX II 3D Ex tc IIIC T135°C Dc, II 3G Ex ec IIC T4 Gc (PB/PT), ATEX II 3G Ex ec IIC T4 Gc (PW) |
| Food and Beverage/Hygiene | FDA, USP, EC Regulation 1935/2004 compliant |
