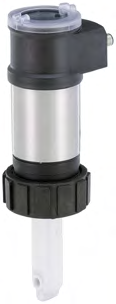

8228 Type Conductivity Sensor
The 8228 Type Conductivity Sensor is designed for industrial processes, especially for measuring the conductivity of high-viscosity liquids. It is suitable for applications such as water monitoring, industrial wastewater treatment, and CIP processes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measurement Error | ±(2%+5μS/cm) |
| Measurement Resolution | 0.1μS/cm |
| Non-linearity Error | ±2% |
| Response Time | 3s (no filter) to 40s (filtered) |
| Temperature Error | ±1°C |
| Temperature Resolution | 0.1°C |
| 4-20mA Output Deviation | ±1% |
| Operating Voltage | 12-36VDC |
| Power Consumption | ≤1W |
| Fluid Temperature Range | PP: 0-80°C, PVDF: -15-100°C, PEEK: -15-130°C |
| Liquid Pressure | PP: max PN6, PVDF: max PN10, PEEK: max PN16 |
| Connection Type | G2 threaded connection or ASME BPE clamp connection |
| Protection Rating | IP65/IP67 |
| Certification | CE, UL61010-1 |
| Ambient Temperature Range | -10-60°C |
| Relative Humidity | ≤85% |
| Maximum Altitude | 2000m |
| Pollution Degree | 2 |
| Electrical Connection | M12 plug, 5-pin |
| Sensor Material | PP |
| Sensor Material | PVDF |
| Sensor Material | PEEK |
| Pipe Diameter | DN15-DN200 |
| Measurement Range | 100μS/cm-2S/cm |
| Temperature Range | -15-130°C |
| Medium Concentration Range | Based on conductivity and temperature |
| Modular Functionality | Yes |
