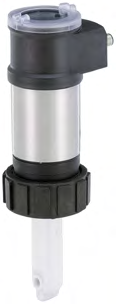

8228 Type Conductivity Sensor
The 8228 Type Conductivity Sensor is designed for industrial processes, especially for measuring the conductivity of high-viscosity liquids. It features modular design and compatibility with various communication protocols.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measurement Deviation | ±(2%+5μS/cm) |
| Measurement Resolution | 0.1μS/cm |
| Non-linearity Error | ±2% |
| Response Time t90 | 3s (no wave) to 40s (wave) |
| Temperature Deviation | ±1°C |
| Temperature Resolution | 0.1°C |
| 4-20mA Output Deviation | ±1% |
| Electrical Parameters - Operating Voltage | 12-36VDC |
| Electrical Parameters - Power Consumption | ≤1W |
| Fluid Temperature Range | PP: 0-80°C, PVDF: -15-100°C, PEEK: -15-130°C |
| Liquid Pressure | PP: max PN6, PVDF: max PN10, PEEK: max PN16 |
| Connection Type | G2 threaded connection or CIP-compliant ASME BPE clamp connection |
| Certification | CE, UL61010-1, CAN/CSA-C22.2 No. 61010-1 |
| Environmental Parameters - Operating Storage Temperature | -10-60°C |
| Environmental Parameters - Humidity | ≤85%, non-condensing |
| Environmental Parameters - Altitude | ≤2000m |
| Protection Level | IP65/IP67 |
| Sensor Material | PP |
| Sensor Material | PVDF |
| Sensor Material | PEEK |
| Pipeline Interface | DN15-DN200 |
| Display | 128x64 pixels, backlit LCD |
| Electrical Connection | M12 plug, 5-pin |
| Communication Protocol | IO-Link, Bürkert bus/CANopen |
