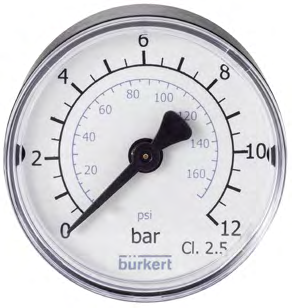

Bourdon Tube Pressure Gauge Type TAU001
The Bourdon Tube Pressure Gauge Type TAU001 is designed for measuring the pressure of neutral and aggressive gases and non-crystallizing liquids with low viscosity. It features a circular bourdon tube sensor made of alloyed copper, ensuring durability and precision.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Housing | Plastic |
| Housing | black |
| Measuring element (circular) | Copper alloy |
| Pointer | Plastic |
| Pointer | black |
| Pointer mechanism | Copper alloy |
| Pressure Connection | Copper alloy |
| Dial | White plastic with black lettering and pointer stop pin |
| Viewing window | Crystal-clear plastic, snapped into housing |
| Measuring Principle | Bourdon tube |
| Measurement Range | Vacuum...25bar |
| Accuracy class | 2.5 according to EN 837-1 |
| Display Range | According to EN 837-1 |
| Temperature behaviour | ±0.4% per 10K at +20°C |
| Load - Resting load | 75% of full scale value |
| Load - Alternating load | 67% of full scale value |
| Load - Short-term load | 100% of full scale value |
| Operating Medium | Neutral or aggressive gases or liquids of low viscosity which do not crystallize and do not damage the bourdon tube materials |
| Medium Temperature | Max.+60°C |
| Ambient Temperature | -20...+60°C |

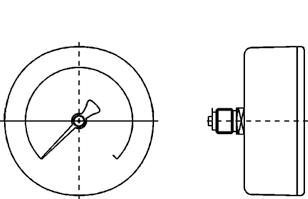

| Diameter of pressure gauge | 40mm, 50mm, 63mm |
| B1 dimension | 44mm, 47.5mm, 48mm |
| B2 dimension | 26mm, 26.5mm, 27.5mm |
| D dimension | 41mm, 49mm, 62mm |
| G dimension | G1/4 |
| Width across flats (SW) | 14mm |
| Weight | 0.063kg, 0.071kg, 0.078kg (center back mount connection); 0.06kg, 0.1kg, 0.13kg (radial lower mount connection) |
| C dimension | 8mm, 10mm, 10mm |
| H dimension | 36mm, 45mm, 53.5mm |
