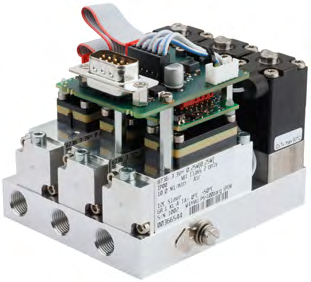

Type 8735 Multi-channel Mass Flow Controller/Meter
The Type 8735 is a modular and economical multi-channel flow control system for gases, designed for high accuracy, fast response times, and flexibility. It is ideal for applications requiring multiple control loops and high volumes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Seal Material | FKM or EPDM (depending on gas) |
| Fluidic Material | PPS, stainless steel 1.4404/316L or others |
| MFM Basic Block Material | Aluminium |
| System Basic Block Material | Aluminium or stainless steel |
| Total Weight | Approximately 750g (3-channel MFC system) |
| Nominal Flow Rate (Qn) | 0.05l/min...20l/min (N2) |
| Maximum Operating Pressure | MFM: max. 6bar |
| Measuring Accuracy | ±1.5% MV, ±0.3% FS (under calibration conditions) |
| Repeatability | ±0.15% FS |
| Turndown Ratio | 1:50 (higher on request) |
| Settling Time (t95) | <700ms (without output filter <100ms) |
| Control Valve (Proportional Valve) | Type 2871 (normally closed) |
| Operating Voltage | 24V DC (standardised electronics) |
| Power Consumption | Typically 8W (3-channel MFC system) |
| Residual Ripple | ±2% |
| Voltage Tolerance | ±10% |
| Operating Medium | Air, oxygen, nitrogen, argon, methane (≤20l/min), hydrogen, helium (≤70l/min), carbon dioxide (≤10l/min), propane (≤6l/min) |
| Calibration Medium | Operating gas or air |
| Port Connection | G1/4, NPT1/4 (others on request) |
| Digital Communication Interface | büS/CANopen, Modbus RS-485/RTU list 0 and list 1 |
| Installation Position | Horizontal or vertical |
| Degree of Protection | IP00 |

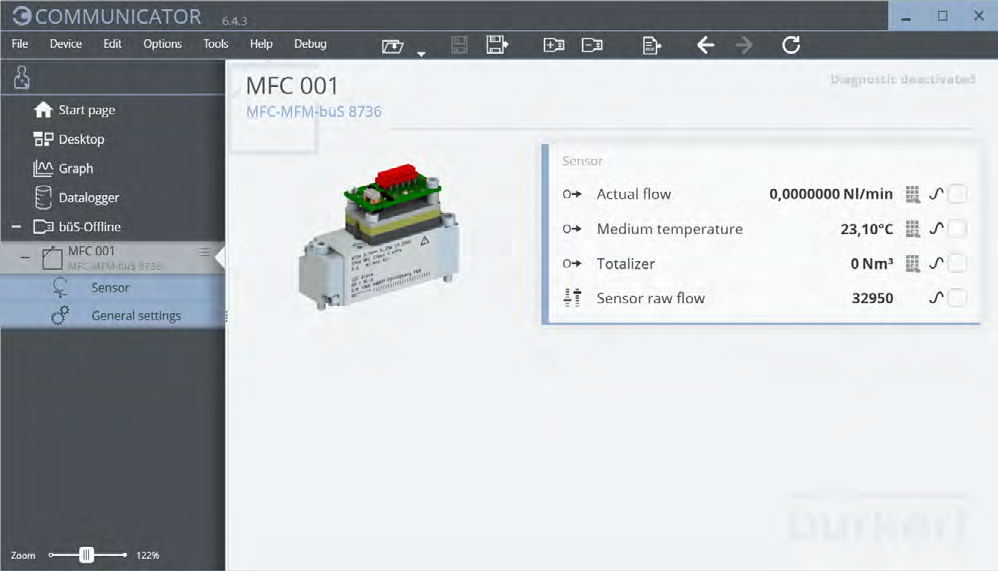

| Software | Bürkert Communicator |
