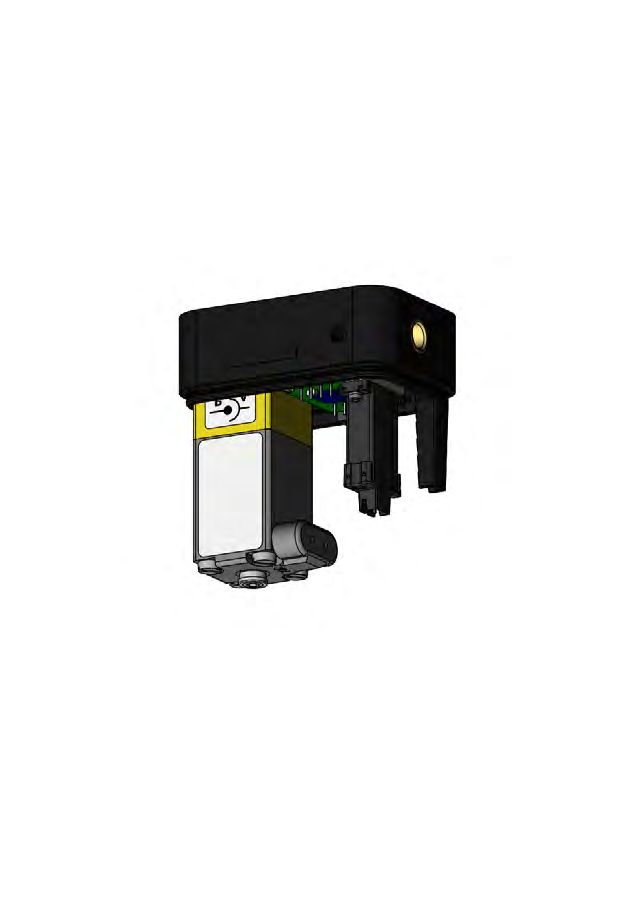

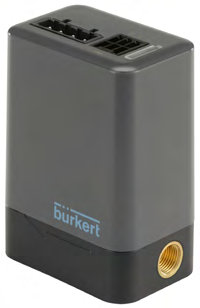

8763 Pressure Controller
The 8763 Pressure Controller is designed for precise pressure measurement and control in various applications. It ensures optimal performance with repeatable and reliable flow measurement within the range. The device is suitable for use with pressure sensors or transmitters.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 18-35VDC |
| Power Consumption | <6W (typical 24W, <12W for continuous operation) |
| Operating Medium | Non-corrosive gases (e.g., nitrogen, air) |
| Operating Temperature | +15°C to +40°C |
| Connection Type | G 1/4 threaded connection |
| Output Interface | UNF 1/4 or 28 threaded connection |
| Protection Class | IP20 |
| Ambient Temperature | +15°C to +40°C |
| Filter | 36μm inlet filter |
| Pressure Range | 0.2-5bar |
| Stability | <0.35% FS for 0.35bar version; <0.75% FS for 5bar version |

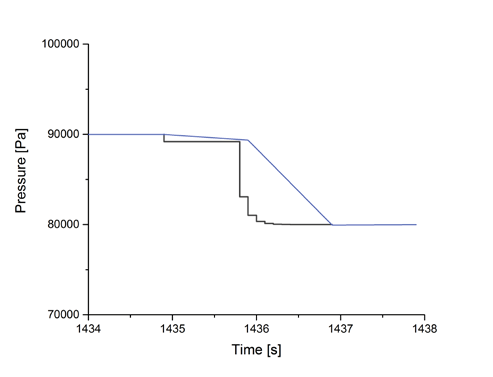

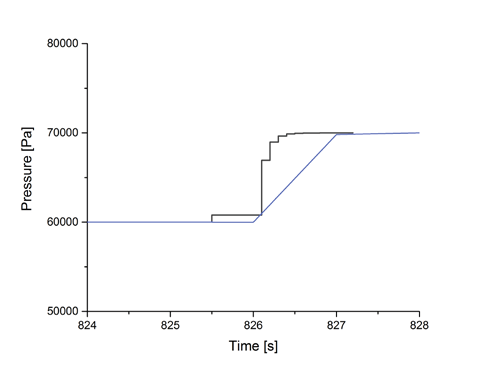

| Response Time | 50ms (typical), 500ms (maximum) |
| Flow Characteristics | Qn adjustable orifice diameter 0.1mm, 0.3mm |
| Weight | Approx. 230g |
