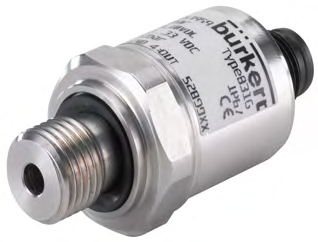

Type 8316 Pressure Measuring Device
The compact Type 8316 pressure measuring device is designed for demanding industrial applications, offering high reliability, EMC characteristics, and mechanical durability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Stainless steel 14404 (316L) |
| Non-wetted parts | Stainless steel 14404 (316L) |
| Wetted parts | Stainless steel 14404 (316L) |
| Process Connection | Thread G1/4 or NPT1/4 |
| Measuring Element | Ceramic Al2O3 (99.6%) for ≤0.6 bar, Ceramic Al2O3 (96%) for >0.6 bar and ≤60 bar, Stainless steel for 100 bar |
| Seal | FKM for ≤60 bar, None for 100 bar |
| Weight | 120g for ≤0.6 bar, 90g for >0.6 bar and ≤60 bar |
| Measurement technology | Ceramic for ≤60 bar, Metallic for 100 bar |
| Measured quantity | Relative pressure (absolute pressure on request) |
| Measuring Range | 0...0.05, 0.1, 0.25, 0.4 or 0.6 bar; 0...4, 6, 10, 16, 40, 60 bar; 0...100 bar |
| Temperature Coefficient | ±0.07% of full scale/10K for ≤0.6 bar, ±0.2% of full scale/10K for >0.6 bar |
| Measuring range resolution | <0.1% of full scale |
| Measurement Deviation | ±0.35% of full scale for ≤0.6 bar, ±0.5% of full scale for >0.6 bar |
| Response Time | <150ms for ≤0.6 bar, <2ms for >0.6 bar |
| Load cycle | <100Hz |
| Overload/bursting pressure | 2 bar for ≤0.6 bar, 3x full scale for >0.6 bar and ≤60 bar, 6x full scale for 100 bar |
| Operating Voltage | 10...33V DC for ≤0.6 bar, 7...33V DC for >0.6 bar and ≤60 bar, 12...33V DC for 100 bar |
| DC reverse polarity protection | Yes |
| Short Circuit Protection | Yes |
| Protection Class | Class III |
| Max Current Consumption | 23mA |
| Insulation Voltage | 500V DC |
| Output | 4...20mA for ≤0.6 bar, 4...20mA or 0...10V DC for >0.6 bar and ≤60 bar, 4...20mA for 100 bar |
| Fluid Temperature | -15...85°C for ≤0.6 bar, -15...125°C for >0.6 bar and ≤60 bar, -40...135°C for 100 bar |
| Ambient Temperature | -25...85°C for ≤0.6 bar, -30...85°C for >0.6 bar and ≤60 bar, -50...100°C for 100 bar |
| Degree of Protection | IP67 |
| Mounting condition | As required, with position error: ±0.01mbar for horizontal mounting |
