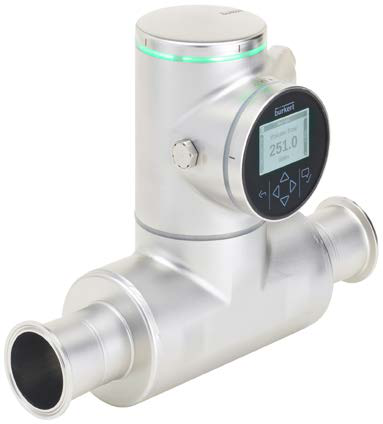

FLOWave SAW Surface Acoustic Wave Flowmeter
The FLOWave SAW flowmeter is a hygienic and efficient flow measurement device based on Surface Acoustic Wave (SAW) technology, designed for applications requiring high sanitary standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 12-35VDC |
| Power Supply (AC Range) | 100-240VAC |
| Electrical Protection Class | IEC 61010-1, SELV/PELV |
| DC Polarity Reversal Protection | Yes |
| Flow Range | 0-200m³/h |
| Liquid Temperature | -20°C to +130°C |
| Maximum Allowable Pressure | 25bar |
| Pipe Connection Size | DN08-DN80 |
| Protection Class | IP65/IP67/IP69K |
| Measurement Accuracy | ±0.4% |
| Repeatability | ±0.08% |
| Density Measurement Accuracy | ±1% |
| Ambient Temperature | -20°C to +70°C |
| Relative Humidity | ≤85% |
| Storage Temperature | -20°C to +70°C |
| Installation Height | 2000m |
| Communication Protocols | PROFINET, EtherNet/IP, Modbus-TCP, EtherCAT, IO-Link |
| Certifications | ATEX/IECEx, UL, 3-A, EHEDG, FDA, USP, CRN |
| Material | Stainless Steel 304/1.4301, 316L/1.4404, VMQ, EPDM, POM |
| Display | LCD with LED indicators |
| Weight | 1.7kg-5.7kg (depending on size) |
| Output Signal | 4-20mA, Digital Output (DO) |
| Measurement Range | 0.1-10m/s |
| Measurement Refresh Interval | 25ms-75ms |
