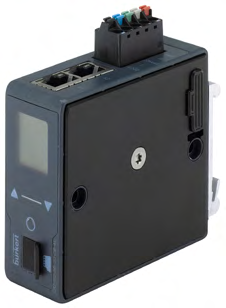

ME43 Fieldbus Gateway
The ME43 Fieldbus Gateway is a standard gateway for industrial Ethernet and fieldbus systems, capable of transmitting up to 128 input and output variables. It simplifies process control through system configuration files and supports precise control in automated systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 95.6×82.6×43.3mm |
| Weight | 0.322kg |
| Material | PC (polycarbonate) |
| Housing | RGB-LED compliant with NAMUR NE107 standard |
| Equipped Memory | Micro SD card |
| Electrical Parameters - Supply Voltage | 24V DC±10% |
| Electrical Parameters - Power Consumption | 2W |
| Electrical Parameters - Maximum Current Consumption | 3.2A at 24V |
| Electrical Parameters - Minimum Current Consumption | 400mA at 3.3V or 5V |
| Communication Interface | PROFINET, PROFINET S2, EtherNet/IP, Modbus TCP, PROFIBUS DPV1, EtherCAT, CC-Link, CC-Link IE Field Basic |
| Ambient Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +80°C |
| Protection Level | IP20 |
| Maximum Altitude | 2000m |
| Certification - Explosion Proof | ATEX |
| Certification - Explosion Proof | IECEx |
| Certification - Explosion Proof | UL Listed |
| Certification - Standards | ATEX II 3G Ex ec IIC T4 Gc, IECEx Ex ec IIC T4 Gc, UL Zone 2 AEx ec IIC Gc |
| Connection Method | CANopen, PROFINET, PROFIBUS DPV1, CC-Link |
| Product Features | Micro SD card slot |
| Product Features | NAMUR LED |
| Product Features | Display screen |
| Product Features | Fieldbus interface |
| Product Features | buS interface |
| Product Features | Mounting bracket |
