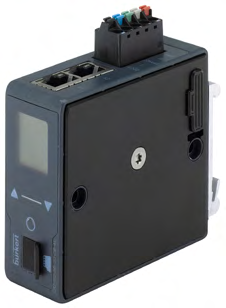

ME43 Fieldbus Gateway
The ME43 Fieldbus Gateway is a central control unit for Burkert products, enabling seamless communication and integration with industrial networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 95.6x82.6x43.3mm |
| Weight | 0.322kg |
| Material | PC (polycarbonate) |
| Housing | RGB-LED compliant with NAMUR NE107 standard |
| Equipped Memory | Micro SD card |
| Electrical Parameters-Operating Voltage | 24V DC±10% |
| Electrical Parameters-Power Consumption | 2W |
| Electrical Parameters-Maximum Current Consumption | 3.2A at 24V |
| Electrical Parameters-Minimum Current Consumption | 400mA at 3.3V or 5V |
| Communication Interface | PROFINET, PROFINET S2, EtherNet/IP, Modbus TCP, PROFIBUS DPV1, EtherCAT, CC-Link, CC-Link IE Field Basic |
| Ambient Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +80°C |
| Protection Class | IP20 |
| Maximum Altitude | 2000m |
