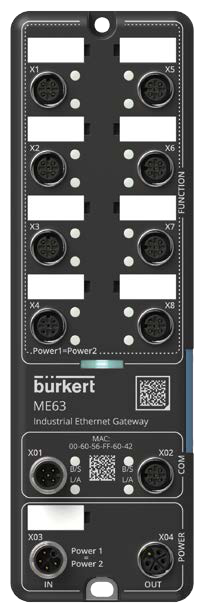

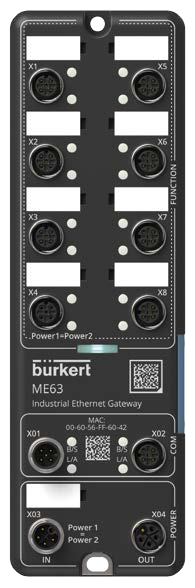

ME63 Industrial Ethernet Gateway
The ME63 Industrial Ethernet Gateway is designed for industrial Ethernet standards, including OPC UA, and is suitable for environments requiring high protection levels. It supports up to 128 input variables and 128 output variables, enabling precise fluid control in batch processes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 210mm×65mm×18mm |
| Weight | 400g |
| Material | PC (polycarbonate) |
| Housing | RGB-LED compliant with NAMUR NE107 standard |
| Configuration Information Storage | Micro SD card |
| Operating Voltage | 24VDC±10% |
| Module Power Consumption | 3.6W |
| Maximum Input Current | 32A |
| Maximum output current | 4A |
| Communication Interface | PROFINET, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic, OPC UA |
| Ambient Temperature | -20°C to +60°C |
| Protection Rating | IP65/IP67/IP69K |
| Altitude | ≤2000m |
| Electrical Connection | M12 connectors (A, D, L types) |
| Bus Communication | büs/CANopen |
