Optical Lens
This optical lens is designed for precision light manipulation and is made from high-quality optical-grade materials such as BK7 and quartz. It features excellent surface quality and precise tolerances, making it ideal for various optical applications.
Save to Favorites
Overview

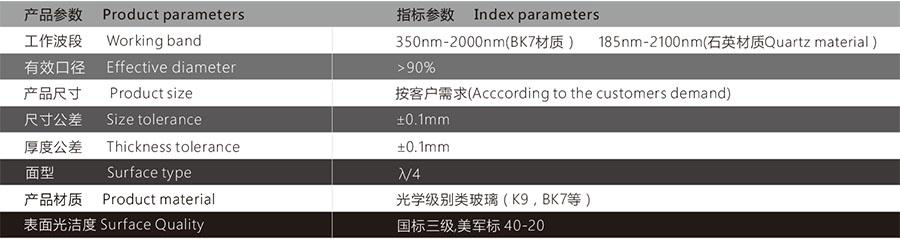

Specifications
| Parameter | Value |
|---|---|
| Working Band BK7 | 350nm-2000nm |
| Working Band Quartz | 185nm-2100nm |
| Effective diameter | >90% |
| Product size | According to the customers demand |
| Size Tolerance | ±0.1mm |
| Thickness Tolerance | ±0.1mm |
| Surface type | λ/4 |
| Product material | Optical-grade glass (K9, BK7, etc.) |
| Surface Quality | 40-20 (International military standard) |
Applications
Key Features
Datasheet
