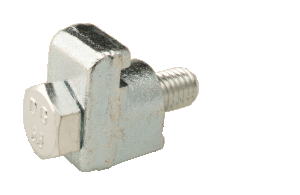

Base plate claw ring with sealing groove - Steel
This product is designed to meet ISO 1609, DIN 28404, and Pneurop 6606 standards, ensuring compatibility with vacuum and high-pressure pipeline applications. It features precision engineering and has passed leakage rates as low as 1×10⁻⁹ mbar l/s.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Specification A DN 63-100 ISO-K | 18.6 |
| Specification A DN 160-250 ISO-K | 19 |
| Specification A DN 320-500 ISO-K | 31 |
| Specification A DN 630 ISO-K | 36.5 |
| Specification B DN 63-100 ISO-K | 30 |
| Specification B DN 160-250 ISO-K | 35 |
| Specification B DN 320-500 ISO-K | 45 |
| Specification B DN 630 ISO-K | 50 |
| Specification C DN 63-100 ISO-K | 10 |
| Specification C DN 160-250 ISO-K | 10 |
| Specification C DN 320-500 ISO-K | 15 |
| Specification C DN 630 ISO-K | 20.6 |
| Clamp ring and bolt DN 63-100 ISO-K | Steel zinc plated 1045/- |
| Clamp ring and bolt DN 160-250 ISO-K | Steel zinc plated 1045/- |
| Clamp ring and bolt DN 320-500 ISO-K | Steel zinc plated 1045/- |
| Clamp ring and bolt DN 630 ISO-K | Steel zinc plated 1045/- |
| Thread size DN 63-100 ISO-K | M8 |
| Thread size DN 160-250 ISO-K | M10 |
| Thread size DN 320-500 ISO-K | M12 |
| Thread size DN 630 ISO-K | M12 |
| Set DN 63-100 ISO-K | 4 pcs |
| Set DN 160-250 ISO-K | 4 pcs |
| Set DN 320-500 ISO-K | 4 pcs |
| Set DN 630 ISO-K | 4 pcs |
