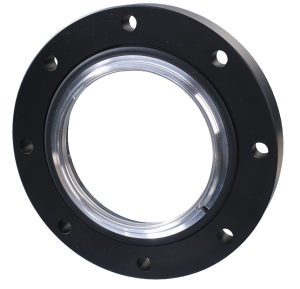

DN63-DN160 ISO-F Viewport
INFICON provides a variety of high-quality internal viewports suitable for all applications requiring viewports. The offered viewport material is borosilicate glass, compatible with ISO-KF, ISO-K, ISO-F, and CF designs.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Type DN63 ISO-F | DN63 ISO-F |
| Type DN100 ISO-F | DN100 ISO-F |
| Type DN160 ISO-F | DN160 ISO-F |
| Vacuum Connection DN63 ISO-F | DN63 ISO-F |
| Vacuum Connection DN100 ISO-F | DN100 ISO-F |
| Vacuum Connection DN160 ISO-F | DN160 ISO-F |
| Window Material | borosilicate glass |
| Seal Material | FPM |
| Flange Material | black anodized aluminum 6082 |
| Intermediate Ring Material | aluminum 6082 |
| Lower Ring Material | stainless steel 304/1.4301 |
| Bakeout Temperature (°C) | 150 |
| Leak Rate (mbar·L/s) | 1×10⁻⁹ |
| Pressure (absolute) | 1×10⁻⁶mbar…2bar |
| Pressure at 150°C | 1bar |
| Window Thickness (mm) | 7.5 |
| Protection Glass Thickness (mm) | 2.3 |
| Weight (kg) DN63 ISO-F | 0.8 |
| Weight (kg) DN100 ISO-F | 1.4 |
| Weight (kg) DN160 ISO-F | 3.3 |
