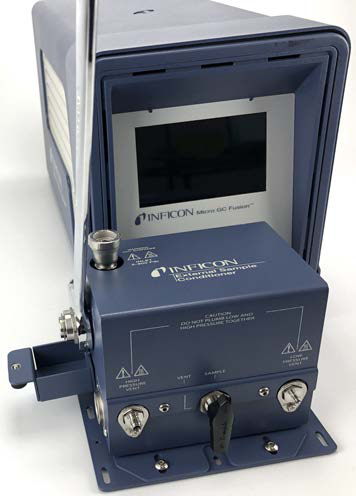

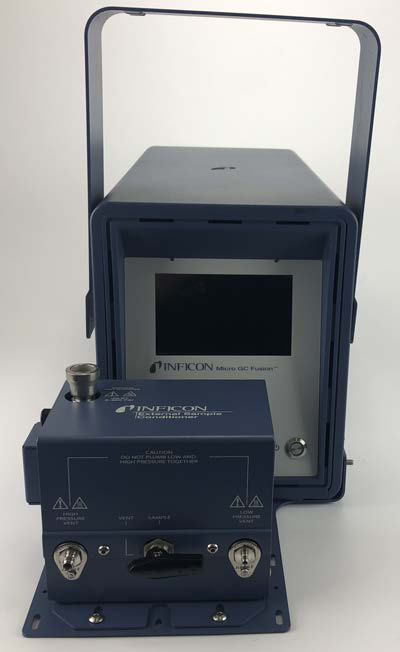

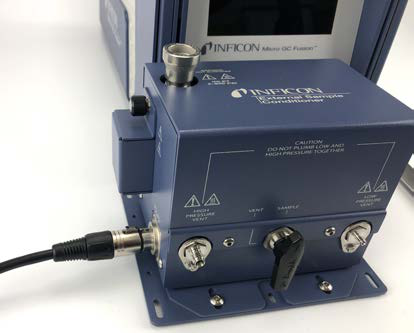

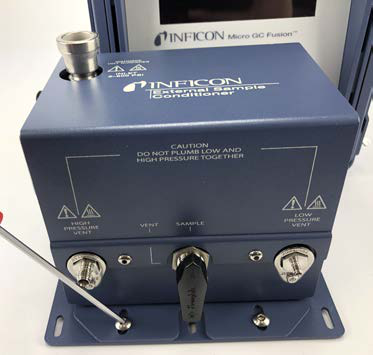

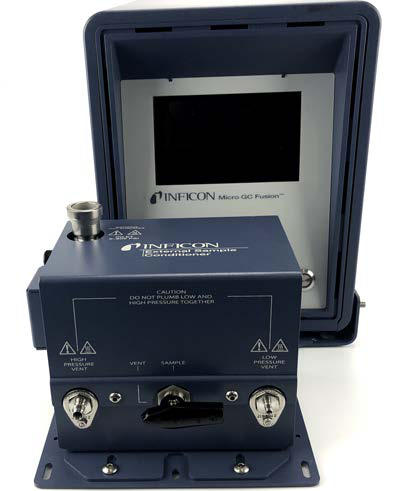

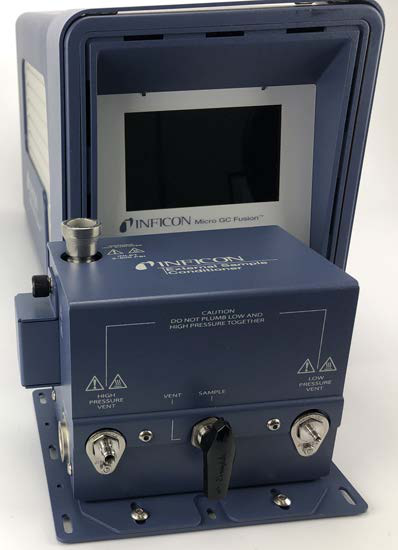

Micro GC Fusion® External Sample Conditioner
The Micro GC Fusion® External Sample Conditioner is designed to maintain sample integrity by reducing pressure and preventing contamination before introducing samples to the Micro GC Fusion system.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

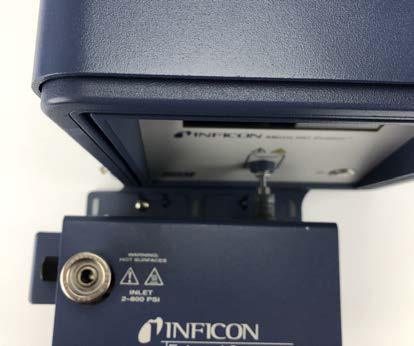

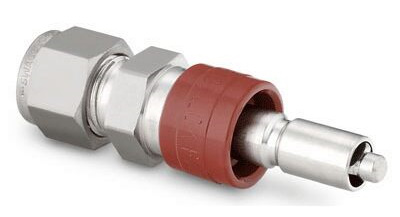

| ESC Sample Inlet Connection | 1/4in.Swagelok®femalequickconnect |
| Sample Output Temp to Micro GC Fusion | >50°C(122°F) |
| Maximum Sample Pressure | 5516kPa(800psi) |
| Minimum Sample Pressure | 14kPa(2psi) |
| Sample Output Pressure to Micro GC Fusion | 0-172kPa(0-25psi) |

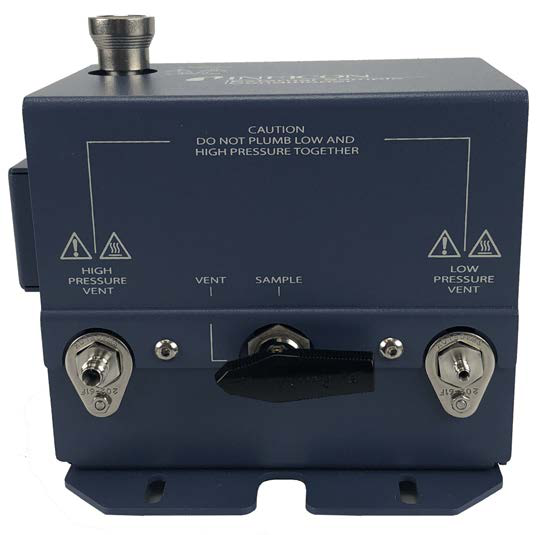

| High Pressure Venting Connector | 1/8in.Swagelok |
| Low Pressure Venting Connector | 1/16in.Swagelok |

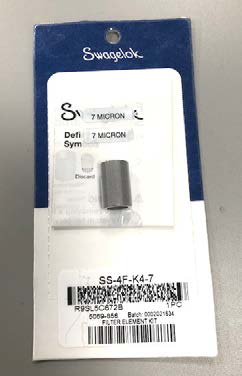

| Filter | 7μm |
| Power Input | 85to264V(ac),47to63Hz |

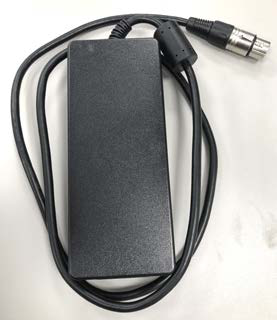

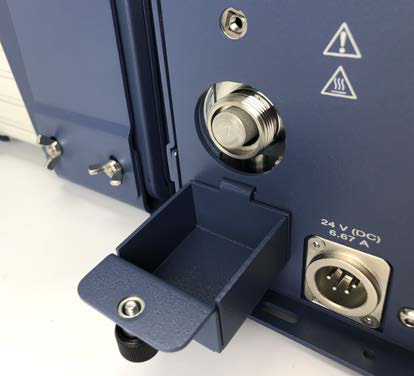

| Power Output | 24V(dc),6.67A,160Wattsmaximum |
| Storage Temperature | -20°Cto60°C(-4°Fto140°F)ambient |
| Relative Humidity | 5to95%(non-condensing) |
| Altitude | 2000m(6,562ft) |
| Pollution Degree | 2perEN611010 |
| Installation (Overvoltage) | CategoryIIperIEC60664 |
| Cleaning | Useamild,non-abrasivecleanerordetergent.Ensurethecleanerdoesnotentertheunit. |
