1 in. (25.4 mm) Diameter Research Crystals
INFICON's 1-inch diameter AT-cut research crystals are designed for use in research applications, offering superior mechanical and piezoelectric properties. These crystals are optimized for in-situ monitoring of deposited films or liquids and are compatible with INFICON's rugged crystal holders.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequencies | 5MHz and 9MHz |
| Frequency Range | 4.976–5.020MHz, 8.976–9.036MHz |
| Resistance | 5MHz, ~10Ohms; 9MHz, ~7Ohms |
| Crystal Diameter | 1in. (25.4mm) |
| Crystal Contour | Plano-Plano |

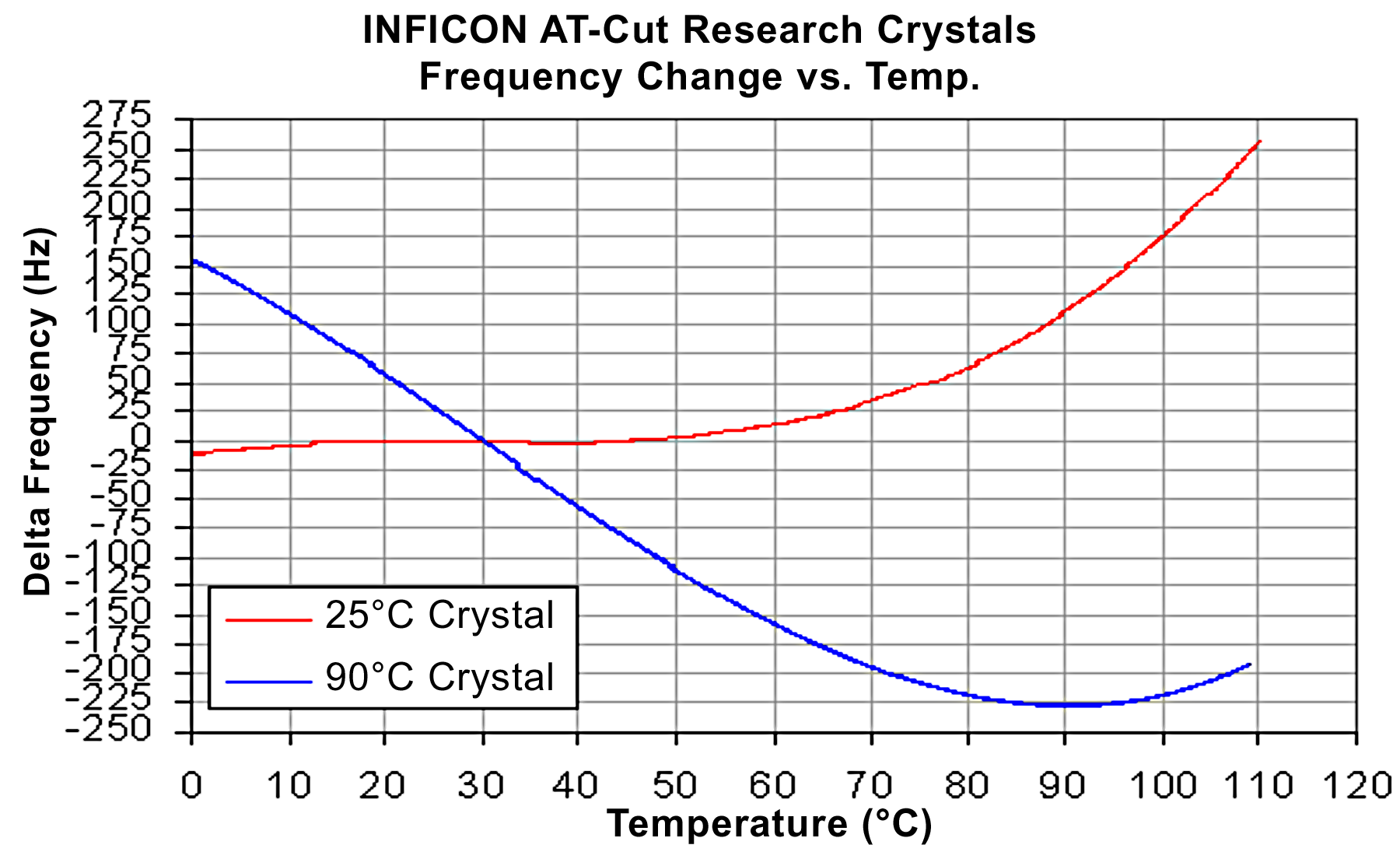

| Crystal Orientation | AT-Cut, for frequency stability over temperature |
| Compatibility | INFICON/Maxtek liquid probes and crystal holders |

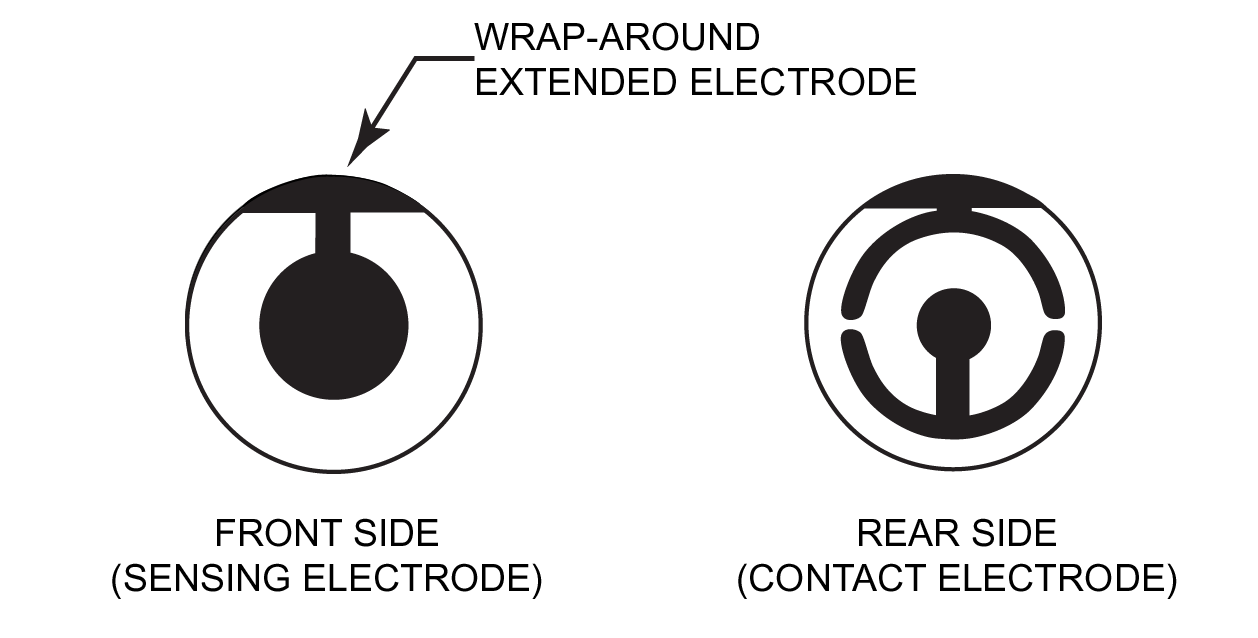

| Front Electrode Diameter | 0.5in. (12.7mm) |
| Packaging | Individually packaged/sold |
| Crystal Thickness | 5MHz, 0.013in. (333μm); 9MHz, 0.007in. (185μm) |
| Surface Roughness | 50Å (polished) |
