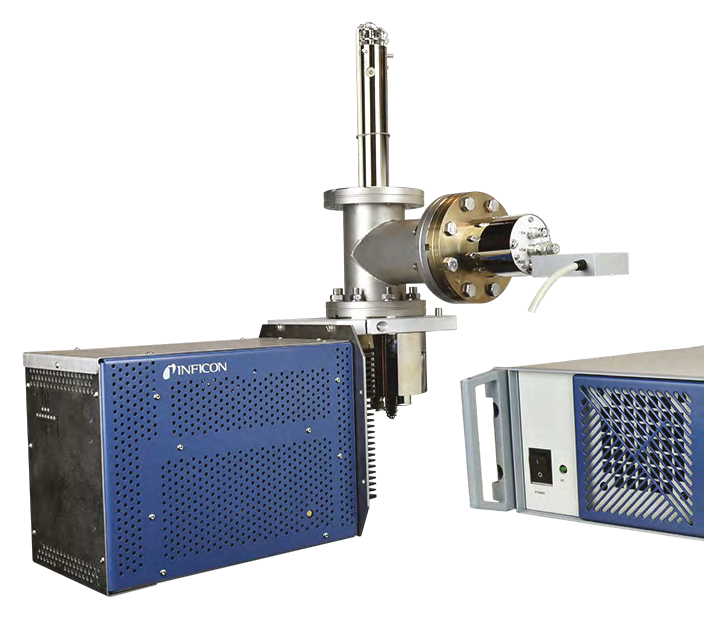

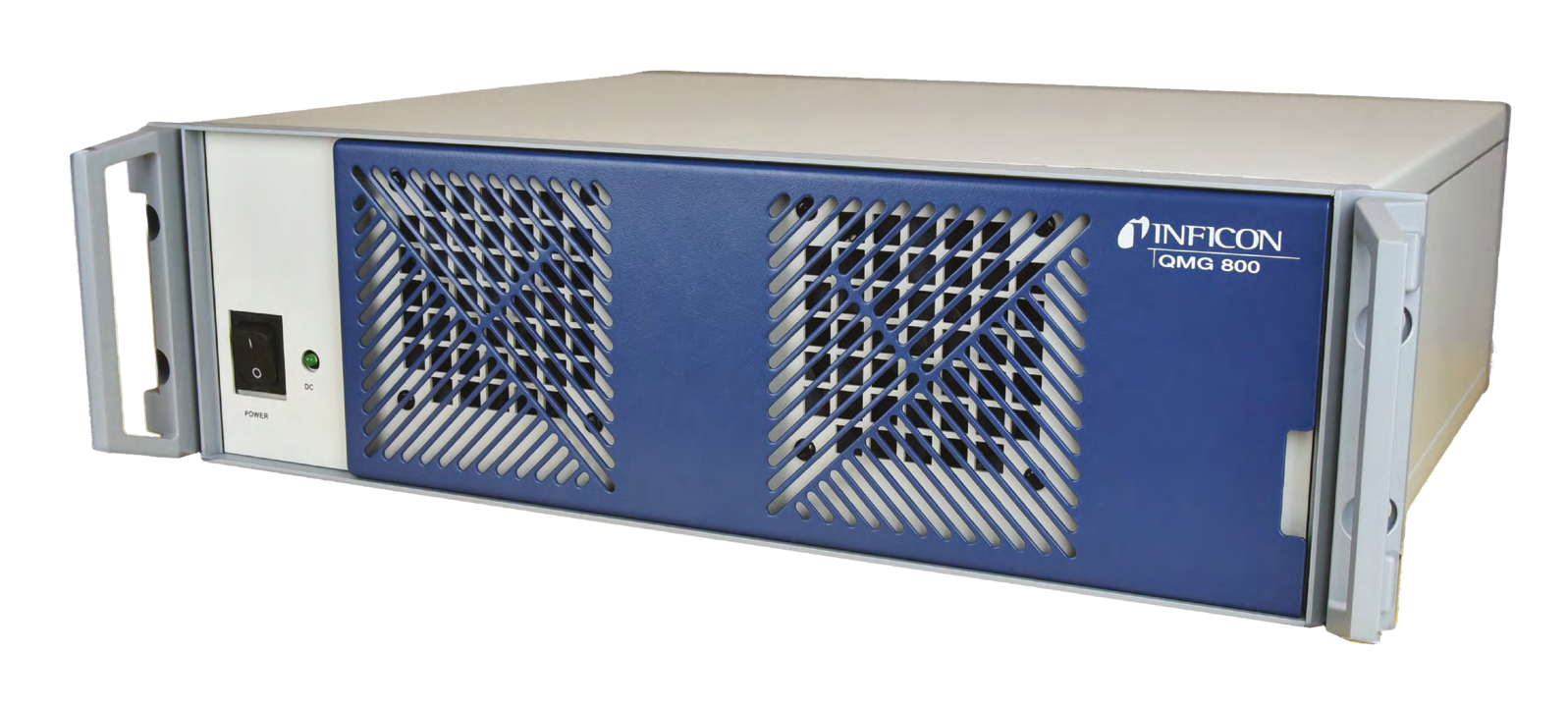

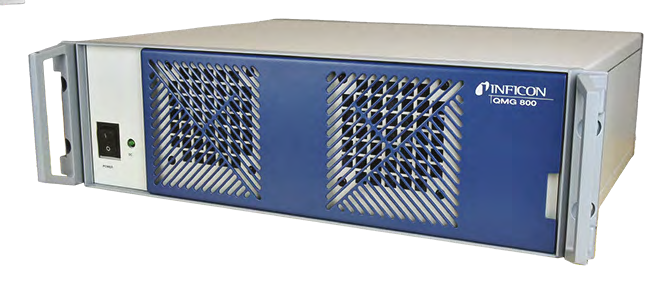

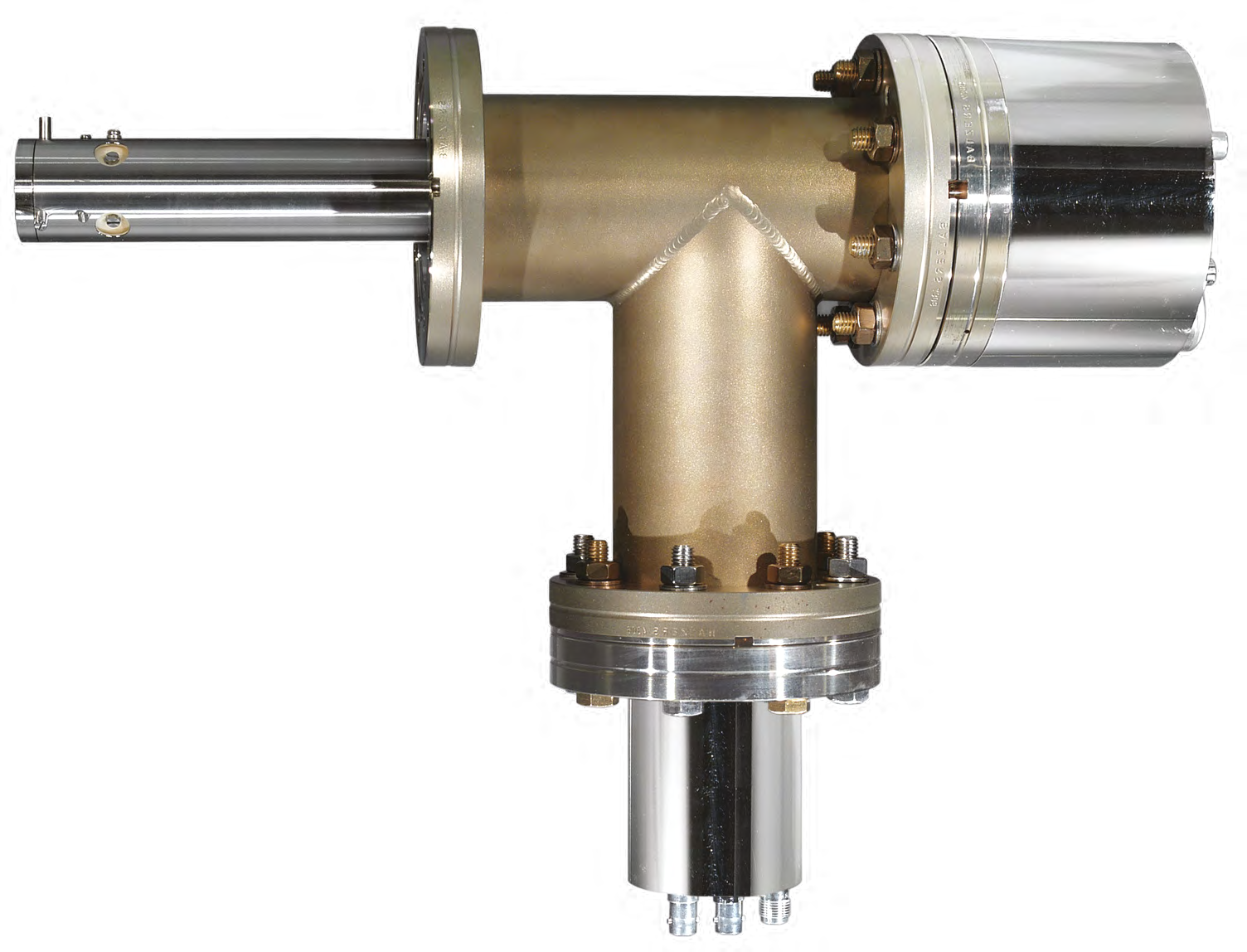

QMG 800 Analytical Mass Spectrometer
The QMG 800 Analytical Mass Spectrometer is a next-generation device designed for unmatched sensitivity, precision, and analytical capabilities. It offers advanced process control, real-time fault detection, and statistical process control, making it ideal for various industrial and research applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Mass Range QMA 430 | 1-300AMU |
| Mass Range QMA 400 | 1-512AMU |
| Rod Material QMA 430 | Stainless Steel |
| Rod Material QMA 400 | Molybdenum |
| Maximum Operating Pressure | 1E-5mbar (1E-3Pa) |

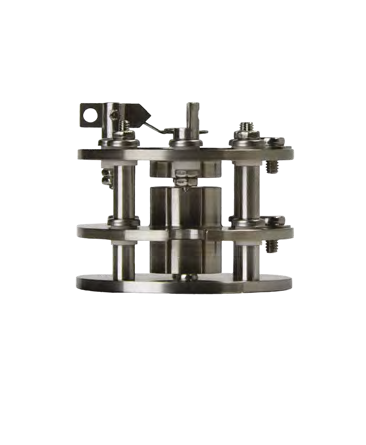

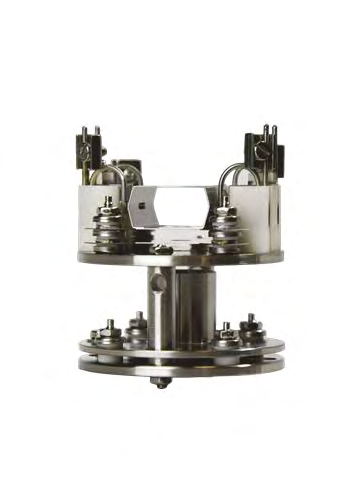

| Faraday Sensitivity Axial Ion Source | 2E-4A/mbar (2E-6A/Pa) |

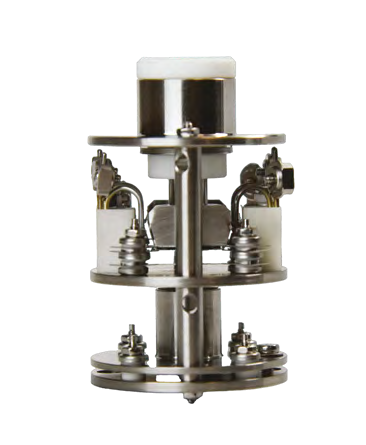

| Faraday Sensitivity Cross-Beam Ion Source | 8E-5A/mbar (8E-7A/Pa) |
| Faraday Sensitivity Cross-Beam Gas-Tight Ion Source | 8E-5A/mbar (8E-7A/Pa) |

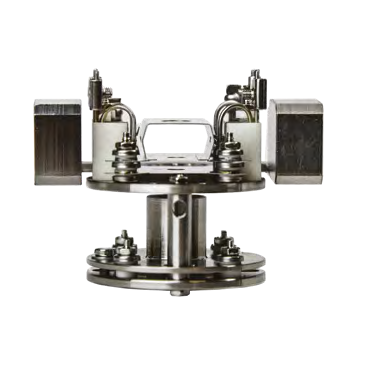

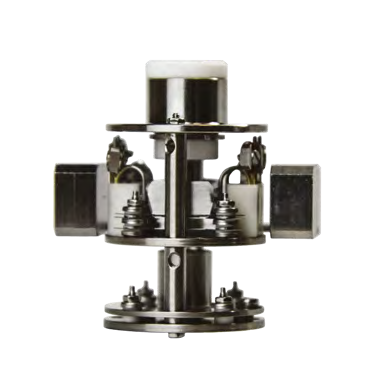

| Faraday Sensitivity Cross-Beam Ion Source with Magnets | 7E-4A/mbar (7E-6A/Pa) |
| Faraday Sensitivity Cross-Beam Gas-Tight Ion Source with Magnets | 7E-4A/mbar (7E-6A/Pa) |
| Faraday Sensitivity Grid Ion Source | 2E-4A/mbar (2E-6A/Pa) |
| Resolution | 0.3-7.0AMU |
| Minimum Detectable Partial Pressure QMA 430 | 2E-15mbar (2E-13Pa) |
| Minimum Detectable Partial Pressure QMA 400 | 1E-15mbar (1E-13Pa) |

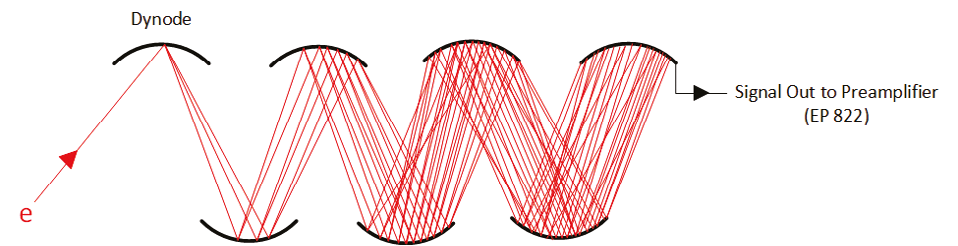

| Partial Pressure Ratio with Electron Multiplier QMA 430 | <1ppb |
| Partial Pressure Ratio with Electron Multiplier QMA 400 | <0.5ppb |
| Maximum Operating Temperature | 40°C |
| Maximum Bakeout Temperature (Electronics Removed) | 400°C |
| Measurement Speed | 125μs |
