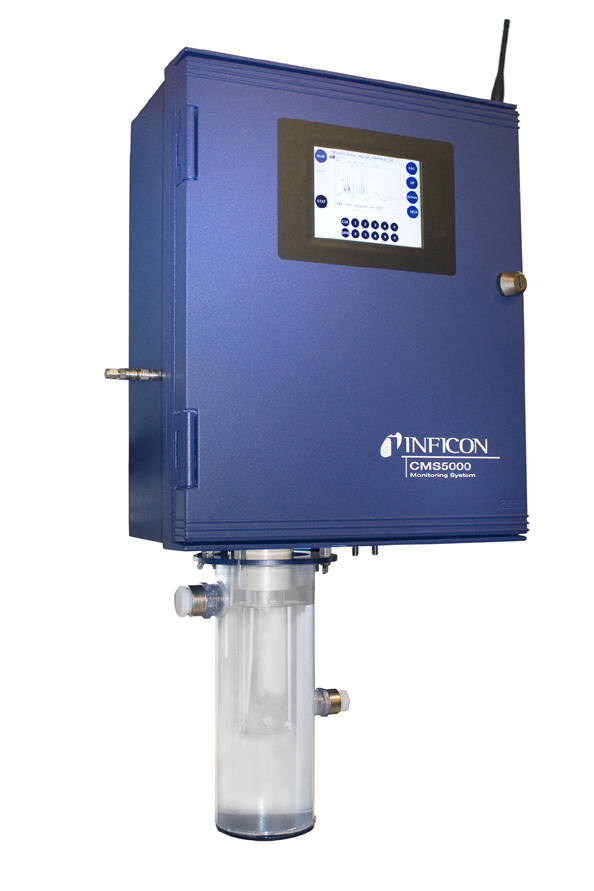

CMS5000 Monitoring System
The CMS5000 Monitoring System employs gas chromatograph technology (GC) with a Micro Argon Ionization Detector (MAID) to analyze and quantify volatile organic compounds in air or water. Designed as a stationary instrument, the CMS5000 is ideal for long-term, unattended VOC monitoring.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Requirement | 120-240VAC |
| Weight | 55.1lbs (25kg) without sampling vessel |
| Dimensions | 16.9"x32.7"x10.2" (43cmx83cmx26cm) |
| Operating Temperature | 5-45°C, 95% RH (non-condensing) |
| Ionization Source | 2.4mCi Ni-63 Micro Argon Ionization Detector (MAID) |
| Storage | Should be mounted under a covered shelter if installed outdoors |
| Regulator Specification | M3300 regulator with CGA, quick connect, needle valve, pre-set to 90psi (IPN 935-412-P1) |
| Required Flow Rate Through Water Vessel | 1liter/min |
| Integration | TCP/IP-based; USB for local diagnostics, 19pin I/O relay contacts |
| Recommended Tubing for Water Monitoring | Copper or stainless steel tubing |
| Recommended Tubing for Air Monitoring | Copper or stainless steel tubing |
| Carrier Gas Requirement | Ultra-high purity Argon (99.999%) |
| Carrier Gas Line | Stainless steel |
| Consumables | Tri-Bed concentrator (IPN 930-716-G1), Argon gas (Sourced from local gas distributor), GC column (HP-1, 0.32mm id, 30M, 0.4μm df or equivalent) (IPN 930-489-G14), Toluene Permeation Tube (IPN 935-213-G1) |
| Maintenance | Water vessel and air sampling tube must be kept free of debris; Toluene permeation tube needs replacement every 8 years; Argon tank replaced as needed |
