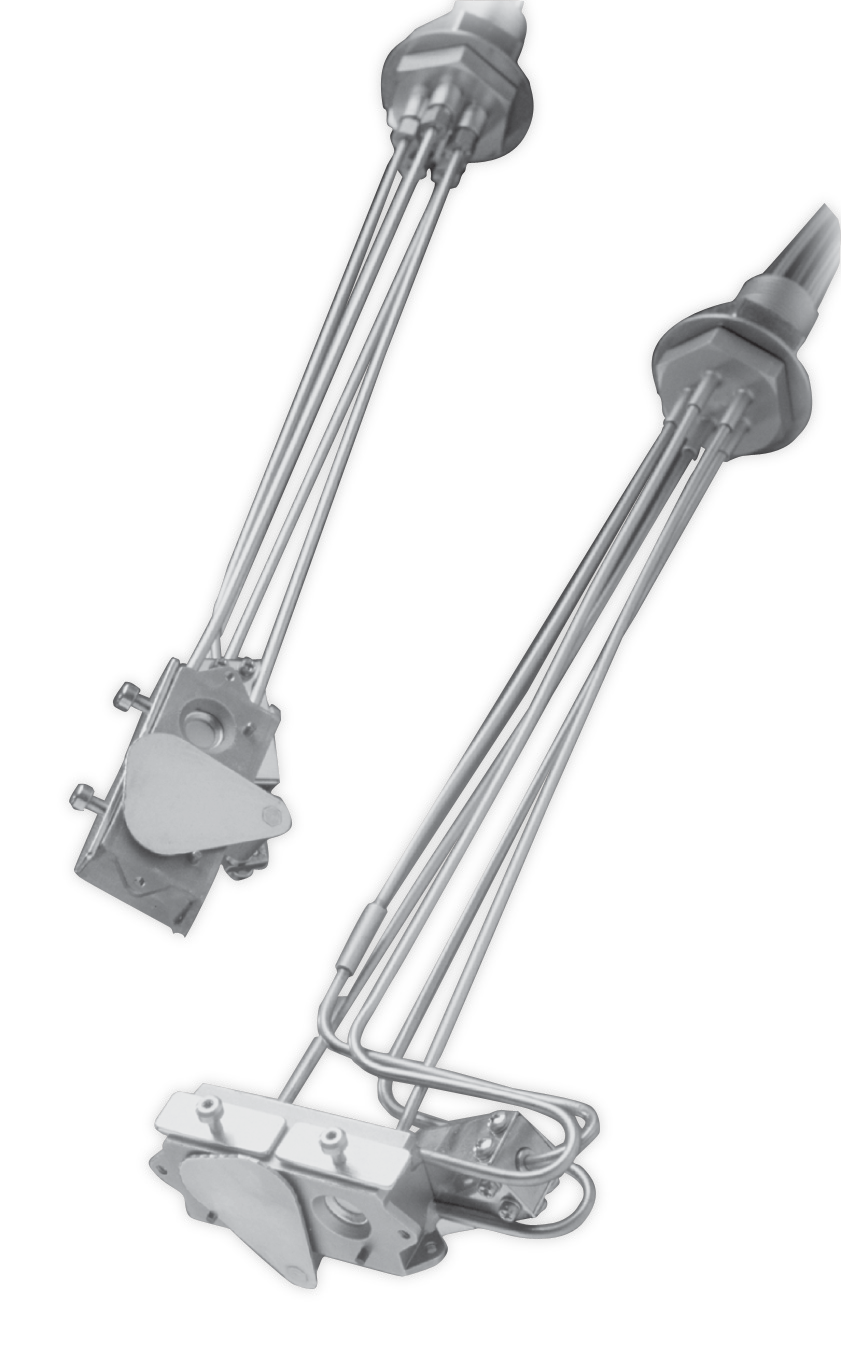

Cool Drawer Dual Sensor
The Cool Drawer Dual Sensor is designed for critical processes requiring a second crystal in the vacuum chamber. It features a water-cooled, cast stainless steel sensor body, dual Cool Drawer crystal holders, and a pneumatic shutter for enhanced reliability and ruggedness.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Finish | Stainless steel |
| Finish | gold plated Cool Drawer |
| Cooling Water | 0.2GPM using 1/4in. O.D. tube, 30°C max |
| Crystal | Industry standard 0.550in. diameter |
| Air Supply | 55-60PSI regulated |
| Electrical Connection | Two standard female BNCs on atmosphere side |
| 1in. Bolt and Compression Fitting Sealed Terminations Materials | 304 stainless steel, Teflon®, ceramic, beryllium nickel, VITON® |
| 1in. Bolt and Compression Fitting Sealed Terminations Temperature | Operational environment to 300°C with water cooling or 165°C without |
| 1in. Bolt and Compression Fitting Sealed Terminations Mounting | 1.015in. ±0.010in. diameter aperture |
| CF40 Welded Terminations Materials | 304 stainless steel, ceramic, beryllium nickel |
| CF40 Welded Terminations Temperature | Operational environment to 450°C with water cooling or 200°C without |
| CF40 Welded Terminations Mounting | Mates with 2¾in. ConFlat® type flanges |
