Front Load Dual Sensor
The Front Load Dual Sensor offers proven reliability and durability, featuring dual crystals for backup and a pneumatically driven shutter for easy crystal replacement. It is designed for applications requiring precise deposition rate monitoring in vacuum systems.
Save to Favorites
Overview

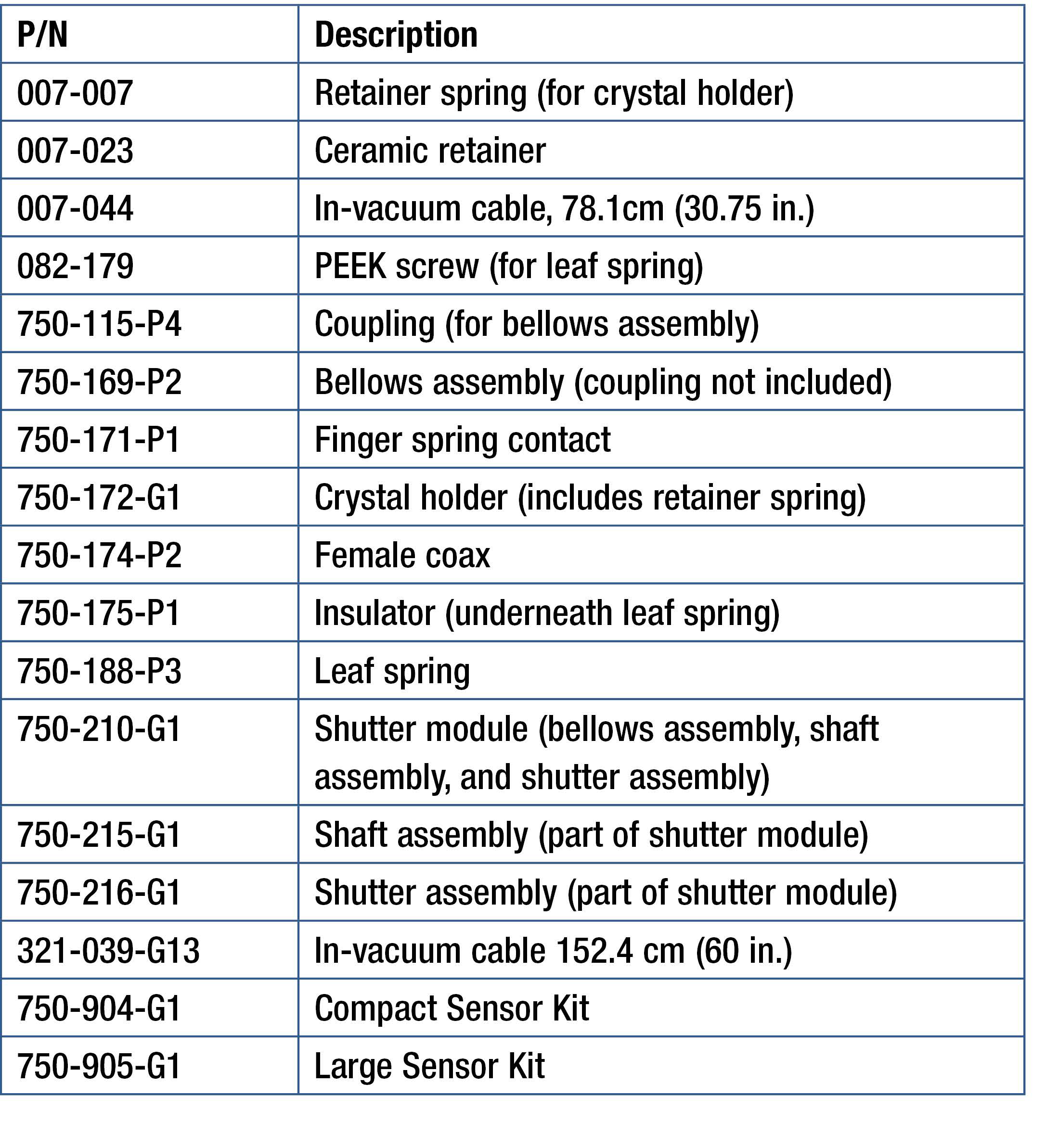

Specifications
| Parameter | Value |
|---|---|
| Maximum Bakeout Temperature | 130°C |
| Maximum Operating Isothermal Environment Temperature | 400°C |
| Size (maximum envelope without shutter) | 39.12×82.04×49.54mm (1.54×3.23×1.95in) |
| Water Tube and Coax Length | 762mm (30in) |
| Crystal exchange | Front-loading, self-contained package |
| Mounting | Two #4-40 tapped holes on the back of the sensor body |
| Materials - Body and Holder | 304 Type Stainless Steel |
| Materials - Springs | Au Plated Be-Cu |
| Materials - Water Tubes | S-304, 3.175mm (0.125in) OD×0.381mm (0.015in) Wall Thickness Seamless Stainless Steel Tubing |
| Materials - Connector | Stainless Steel |
| Materials - Connector | Teflon |
| Materials - Connector | and Glass Insulated |
| Materials - Insulators | >99% Al₂O₃ |
| Materials - Wire | Teflon Insulated Copper |
| Materials - Other Mechanical Parts | 304 or 18-8 Stainless Steel |
| Materials - Braze | Vacuum Process High Temperature Ni-Cr Alloy |
| Crystal Diameter | 0.550in (13.97mm) |
| 1-Inch Bolt and Ultra-Torr Compression Fitting Materials | 304 Stainless Steel, Teflon, Ceramic, Beryllium Nickel, VITON |
| 1-Inch Bolt and Ultra-Torr Compression Fitting Temperature | 300°C with water cooling or 165°C without |
| CF40 Welded Terminations Materials | 304 Stainless Steel, Teflon, Ceramic, Beryllium Nickel |
| CF40 Welded Terminations Temperature | 450°C with water cooling or 165°C without |
