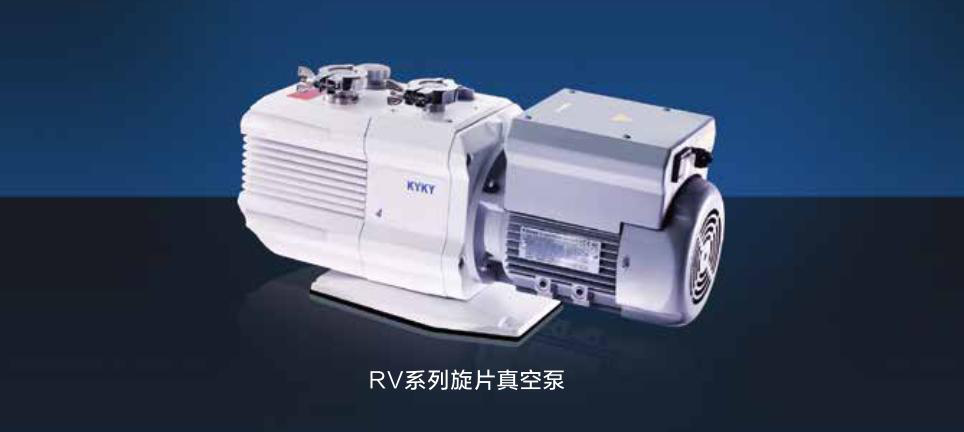

RV Series Rotary Vane Vacuum Pump
The RV series rotary vane vacuum pump is a high-performance device designed for efficient vacuum generation in various industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Pumping Speed (L/s) 50Hz RV2 | 2 |
| Pumping Speed (L/s) 50Hz RV4 | 4 |
| Pumping Speed (L/s) 50Hz RV6 | 6 |
| Pumping Speed (L/s) 50Hz RV8 | 8 |
| Pumping Speed (L/s) 50Hz RV14 | 14 |
| Pumping Speed (L/s) 50Hz RV18 | 18 |
| Pumping Speed (L/s) 50Hz RV24 | 24 |
| Pumping Speed (L/s) 60Hz RV2 | 2.4 |
| Pumping Speed (L/s) 60Hz RV4 | 4.8 |
| Pumping Speed (L/s) 60Hz RV6 | 7.2 |
| Pumping Speed (L/s) 60Hz RV8 | 9.6 |
| Pumping Speed (L/s) 60Hz RV14 | 16.8 |
| Pumping Speed (L/s) 60Hz RV18 | 21.6 |
| Pumping Speed (L/s) 60Hz RV24 | 28.8 |
| Ultimate Pressure (Pa) | 4×10⁻² |
| Gas Ballast Closed | 4×10⁻² |
| Gas Ballast Open | 4×10⁻¹ |
| Oil Capacity (L) RV2 | 1.1 |
| Oil Capacity (L) RV4 | 1.2 |
| Oil Capacity (L) RV6 | 2.0 |
| Oil Capacity (L) RV8 | 2.3 |
| Oil Capacity (L) RV14 | 4.5 |
| Oil Capacity (L) RV18 | 4.5 |
| Oil Capacity (L) RV24 | 6.5 |
| Inlet Port (DN) RV2 | 25KF |
| Inlet Port (DN) RV4 | 25KF |
| Inlet Port (DN) RV6 | 25KF/40KF |
| Inlet Port (DN) RV8 | 25KF/40KF |
| Inlet Port (DN) RV14 | 40KF |
| Inlet Port (DN) RV18 | 40KF |
| Inlet Port (DN) RV24 | 40KF |
| Exhaust Port (DN) RV2 | 25KF |
| Exhaust Port (DN) RV4 | 25KF |
| Exhaust Port (DN) RV6 | 25KF |
| Exhaust Port (DN) RV8 | 25KF |
| Exhaust Port (DN) RV14 | 40KF |
| Exhaust Port (DN) RV18 | 40KF |
| Exhaust Port (DN) RV24 | 40KF |
| Motor Power (kW) RV2 | 0.55 (Single/Three Phase) |
| Motor Power (kW) RV4 | 0.55 (Single/Three Phase) |
| Motor Power (kW) RV6 | 0.75 (Single/Three Phase) |
| Motor Power (kW) RV8 | 0.75 (Single/Three Phase) |
| Motor Power (kW) RV14 | 1.5 (Three Phase) |
| Motor Power (kW) RV18 | 1.5 (Three Phase) |
| Motor Power (kW) RV24 | 2.2 (Three Phase) |
| Speed (RPM) 50Hz | 1420 |
| Speed (RPM) 60Hz | 1710 |
| Noise (Gas Ballast Closed) (dB) RV2 | 50 |
| Noise (Gas Ballast Closed) (dB) RV4 | 50 |
| Noise (Gas Ballast Closed) (dB) RV6 | 52 |
| Noise (Gas Ballast Closed) (dB) RV8 | 52 |
| Noise (Gas Ballast Closed) (dB) RV14 | 56 |
| Noise (Gas Ballast Closed) (dB) RV18 | 58 |
| Noise (Gas Ballast Closed) (dB) RV24 | 58 |
| Weight (kg) RV2 | 27 |
| Weight (kg) RV4 | 28 |
| Weight (kg) RV6 | 35 |
| Weight (kg) RV8 | 37 |
| Weight (kg) RV14 | 66 |
| Weight (kg) RV18 | 75 |
| Weight (kg) RV24 | 85 |
