Vacuum Pump Series
The vacuum pump series is designed for high-performance applications requiring precise pressure control and efficient cooling methods.
Save to Favorites
Overview
Specifications

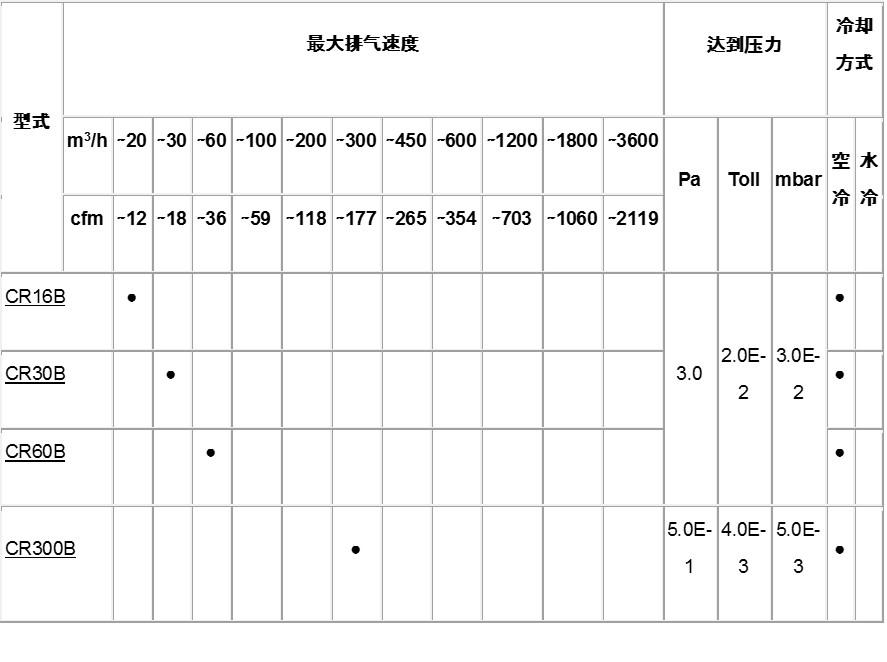

| Parameter | Value |
|---|---|
| Maximum Exhaust Speed (m³/h) CR16B | ~20 |
| Maximum Exhaust Speed (m³/h) CR30B | ~30 |
| Maximum Exhaust Speed (m³/h) CR60B | ~60 |
| Maximum Exhaust Speed (m³/h) CR300B | ~300 |
| Maximum Exhaust Speed (m³/h) GR60A | ~60 |
| Maximum Exhaust Speed (m³/h) GR90A | ~90 |
| Maximum Exhaust Speed (m³/h) GR180A | ~180 |
| Maximum Exhaust Speed (m³/h) LR60 | ~60 |
| Maximum Exhaust Speed (m³/h) LR90 | ~90 |
| Maximum Exhaust Speed (m³/h) LR180 | ~180 |
| Maximum Exhaust Speed (m³/h) LR421 | ~421 |
| Maximum Exhaust Speed (m³/h) LR300 | ~300 |
| Maximum Exhaust Speed (m³/h) LR600 | ~600 |
| Maximum Exhaust Speed (m³/h) LR1200 | ~1200 |
| Maximum Exhaust Speed (m³/h) LR1800 | ~1800 |
| Maximum Exhaust Speed (m³/h) LR3601 | ~3600 |
| Maximum Exhaust Speed (m³/h) HR60 | ~60 |
| Maximum Exhaust Speed (m³/h) HR90 | ~90 |
| Maximum Exhaust Speed (m³/h) HR300 | ~300 |
| Maximum Exhaust Speed (m³/h) HR600 | ~600 |
| Maximum Exhaust Speed (m³/h) HR1200 | ~1200 |
| Achieved Pressure (Pa) CR30B | 3.0 |
| Achieved Pressure (Pa) CR300B | 5.0 |
| Achieved Pressure (Pa) GR90A | 5.0 |
| Achieved Pressure (Pa) LR90 | 5.0 |
| Achieved Pressure (Pa) LR600 | 6.7 |
| Achieved Pressure (Pa) HR90 | 5.0 |
| Achieved Pressure (Pa) HR600 | 6.7 |
| Cooling Method CR30B | Air |
| Cooling Method CR300B | Water |
| Cooling Method GR90A | Air |
| Cooling Method LR90 | Air |
| Cooling Method LR600 | Water |
| Cooling Method HR90 | Air |
| Cooling Method HR600 | Water |
