PGT-3F/PGT-6F Titanium Sublimation Pump
The PGT-3F/PGT-6F Titanium Sublimation Pump is a high-performance vacuum pump designed for ultra-high vacuum applications. It is equipped with titanium filaments and offers excellent pumping speeds for various gases, ensuring efficient and reliable operation.
Save to Favorites
Overview
Specifications

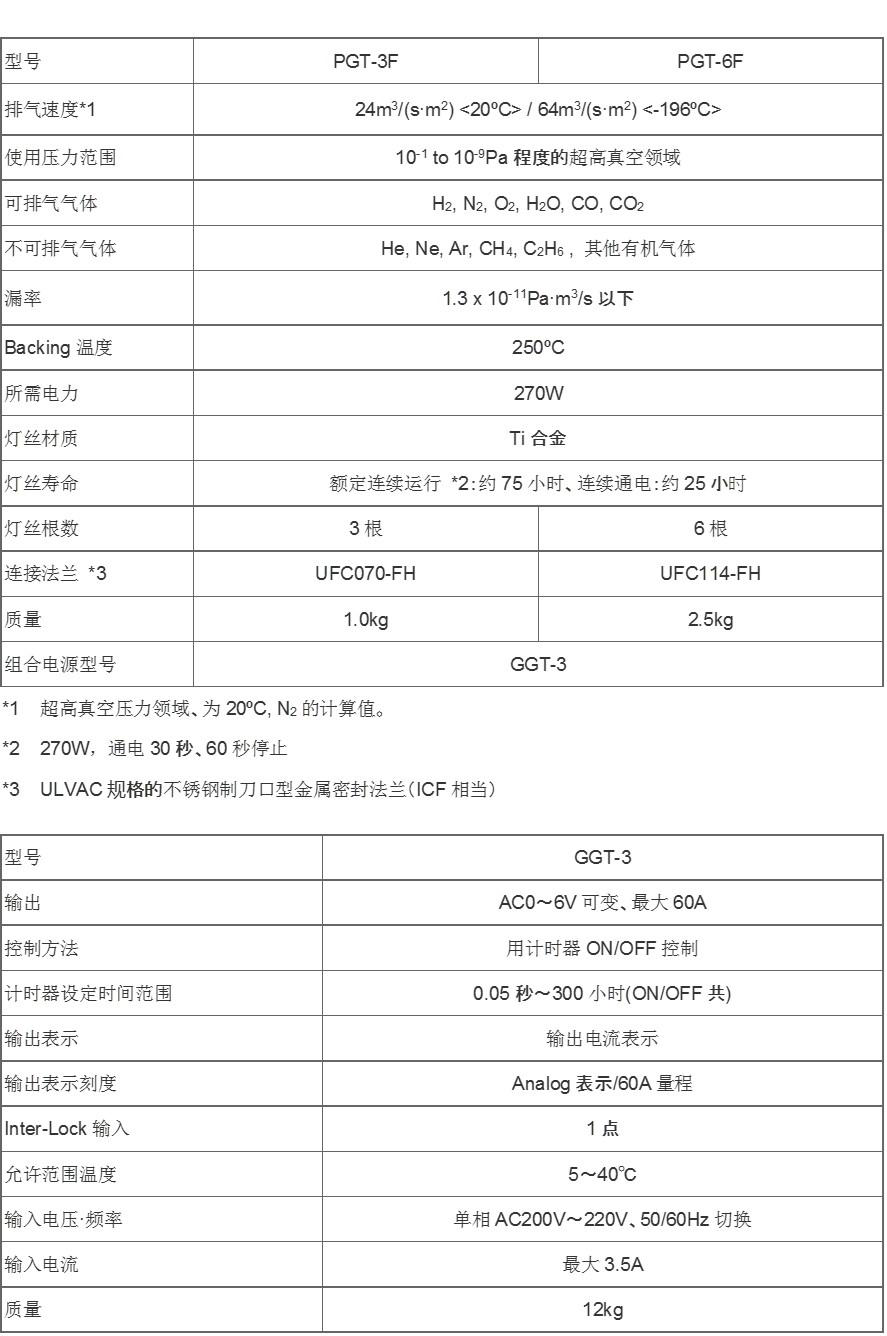

| Parameter | Value |
|---|---|
| Pumping Speed PGT-3F <20°C | 24m³/(s·m²) |
| Pumping Speed PGT-6F <-196°C | 64m³/(s·m²) |
| Operating Pressure Range | 10⁻¹ to 10⁻⁹Pa |
| Pumped Gases | H₂, N₂, O₂, H₂O, CO, CO₂ |
| Non-pumped Gases | He, Ne, Ar, CH₄, C₂H₆, other organic gases |
| Leak Rate | 1.3×10⁻¹¹Pa·m³/s or less |
| Backing Temperature | 250°C |
| Required Power | 270W |
| Filament Material | Ti alloy |
| Filament Lifetime | Approx. 75 hours continuous operation, approx. 25 hours continuous current |
| Number of Filaments PGT-3F | 3 |
| Number of Filaments PGT-6F | 6 |
| Connection Flange PGT-3F | UFC070-FH |
| Connection Flange PGT-6F | UFC114-FH |
| Weight PGT-3F | 1.0kg |
| Weight PGT-6F | 2.5kg |
| Model | GGT-3 |
| Output | AC0~6V, max 60A |
| Control Method | Timer ON/OFF control |
| Timer Setting Time Range | 0.05s~300s (ON/OFF total) |
| Output Display | Output current display |
| Output Display Scale | Analog display/60A range |
| Inter-Lock Input | 1 point |
| Permissible Ambient Temperature | 5~40°C |
| Input Voltage and Frequency | Single-phase AC200V~220V, 50/60Hz switchable |
| Input Current | Max 3.5A |
| Weight | 12kg |
