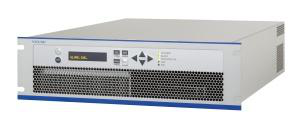

DC-P Series Power Supply
The DC-P series power supply is designed for high-performance applications requiring precise control and reliable operation.
Save to Favorites
Overview

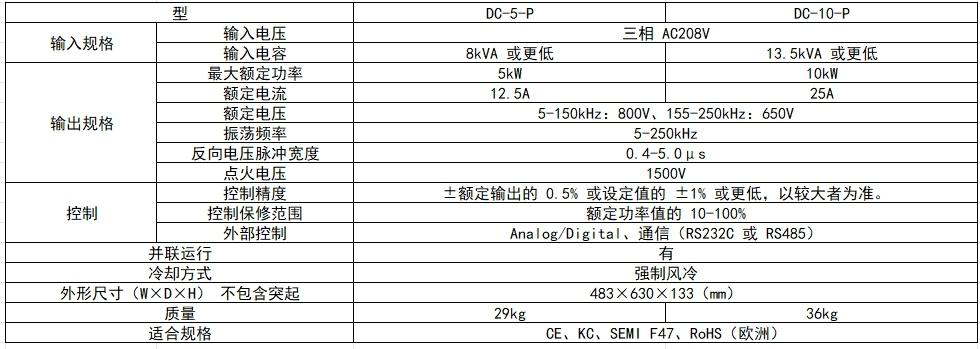

Specifications
| Parameter | Value |
|---|---|
| Input Voltage DC-5-P | 8kVA or lower |
| Input Voltage DC-10-P | 13.5kVA or lower |
| Maximum Rated Power DC-5-P | 5kW |
| Maximum Rated Power DC-10-P | 10kW |
| Rated Current DC-5-P | 12.5A |
| Rated Current DC-10-P | 25A |
| Rated Voltage DC-5-P | 5-150kHz: 800V, 155-250kHz: 650V |
| Rated Voltage DC-10-P | 5-150kHz: 800V, 155-250kHz: 650V |
| Oscillation Frequency DC-5-P | 5-250kHz |
| Oscillation Frequency DC-10-P | 5-250kHz |
| Reverse Voltage Pulse Width DC-5-P | 0.4-5.0μs |
| Reverse Voltage Pulse Width DC-10-P | 0.4-5.0μs |
| Ignition Voltage DC-5-P | 1500V |
| Ignition Voltage DC-10-P | 1500V |
| Control Accuracy DC-5-P | ±0.5% of rated output or ±1% of set value, whichever is larger |
| Control Accuracy DC-10-P | ±0.5% of rated output or ±1% of set value, whichever is larger |
| Control Warranty Range DC-5-P | 10-100% of rated power |
| Control Warranty Range DC-10-P | 10-100% of rated power |
| External Control DC-5-P | Analog/Digital, Communication (RS232C or RS485) |
| External Control DC-10-P | Analog/Digital, Communication (RS232C or RS485) |
| Cooling Method DC-5-P | Forced air cooling |
| Cooling Method DC-10-P | Forced air cooling |
| Dimensions (W×D×H) DC-5-P | 483×630×133mm |
| Dimensions (W×D×H) DC-10-P | 483×630×133mm |
| Weight DC-5-P | 29kg |
| Weight DC-10-P | 36kg |
| Applicable Standards DC-5-P | CE, KC, SEMI F47, RoHS (Europe) |
| Applicable Standards DC-10-P | CE, KC, SEMI F47, RoHS (Europe) |
