ScopeCorder Plug-in Modules

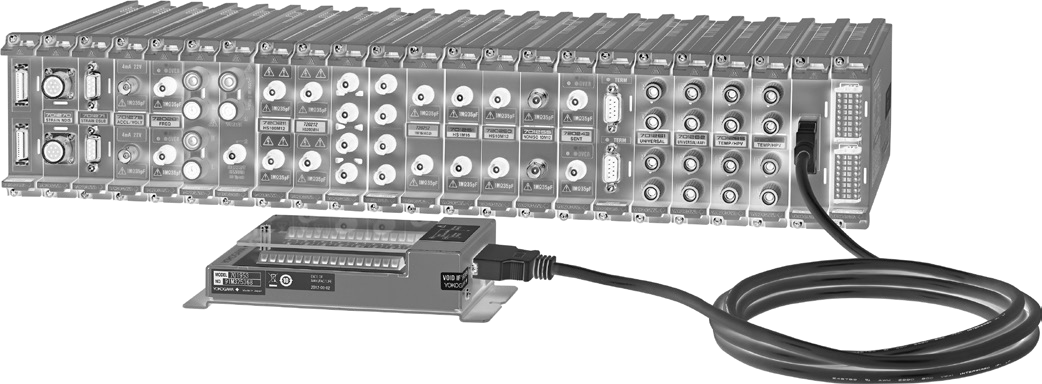

The ScopeCorder plug-in modules are versatile and high-performance modules designed for precise data acquisition and analysis in various applications. These modules are compatible with the DL950, SL2000, DL850E, DL850EV, DL350, and SL1000 main units, offering a wide range of measurement capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Input Channels | Varies by model (2, 4, 16) |
| Input Type | Isolated/Non-isolated |
| Input Coupling | AC |
| Input Coupling | DC |
| Input Coupling | GND |
| Input Connector | BNC, Binding post, or Plug-in terminal |
| Input Impedance | Varies by model (e.g., 1MΩ, 2MΩ) |
| Maximum Sample Rate | Varies by model (e.g., 200MS/s, 100MS/s, 10MS/s, 1MS/s) |
| Frequency Range (-3dB) | Varies by model (e.g., DC to 40MHz, DC to 3MHz) |
| A/D Conversion Resolution | Varies by model (e.g., 14-bit, 16-bit, 12-bit) |
| Voltage-Axis Sensitivity Setting | Varies by model (e.g., 1mV/div to 20V/div) |
| Maximum Input Voltage | Varies by model (e.g., 1000V DC, 600V DC, 42V DC) |
| Maximum Rated Voltage to Earth | Varies by model (e.g., 1000V DC, 600V DC) |
| Common Mode Rejection Ratio | 80dB or more (typ.) |
| Temperature Coefficient | Varies by model (e.g., ±0.01% of rdg/°C) |
| Bandwidth Limit | Varies by model (e.g., Full/40kHz/4kHz/400Hz) |
| Weight | Varies by model (e.g., Approx. 270g, 280g) |
