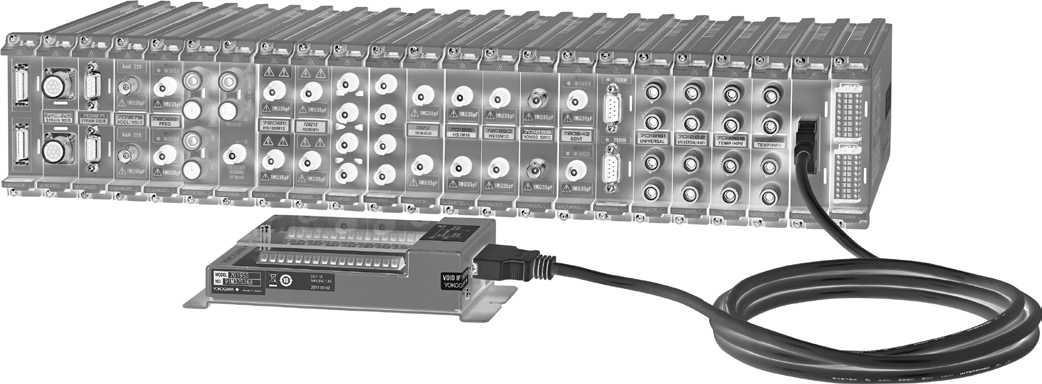

Acceleration/Voltage Module (with Anti-Aliasing Filter)
This module accepts direct input from built-in amp type acceleration sensors to measure acceleration. It also supports charge output type acceleration sensors via a charge converter. The module features low noise and anti-aliasing characteristics, making it suitable for FFT analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Input Type | Isolated unbalanced |
| Input Coupling | AC, DC, ACCL (Acceleration), and GND |
| Input Connector | BNC connector (metallic type) |
| Input Impedance | 1MΩ±1%, approx. 35pF |
| Common Mode Rejection Ratio | 80dB (50/60Hz or more) |
| Maximum Sample Rate | 100kS/s |
| Frequency Range (-3dB) | Acceleration: 0.4Hz to 40kHz; Voltage: 5mV/div to 10V/div (1-25 steps) |
| A/D Conversion Resolution | 16-bit (2400LSB/div) |
| Maximum Input Voltage (1kHz or less) | 42V DC or ACpeak |
| Maximum Rated Voltage to Earth (1kHz or less) | 42V DC or ACpeak (CAT II, 30Vrms) |
| Temperature Coefficient | Zero point: ±0.05% of rdg/°C; Gain: ±0.05% of rdg/°C |
| Bandwidth Limit | Full/40Hz/440Hz/4kHz/40kHz |
| Anti-Aliasing Filter (AAF) | Cutoff frequency: 1Hz to 40kHz; Filter slope: -12dB/oct |
| Sensor Supply Voltage | OFF/4mA±10%, approx. 22VDC |
| Applicable Acceleration Sensor | Kistler, PiezoTron; PCB; PiezoTech; Endevco; Isotron, etc. |
| Weight | Approx. 270g |
