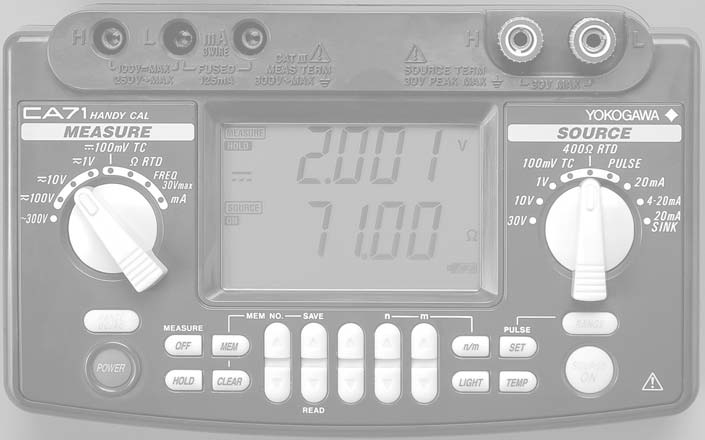

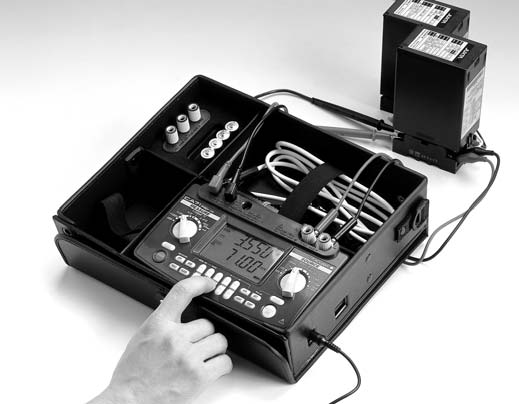

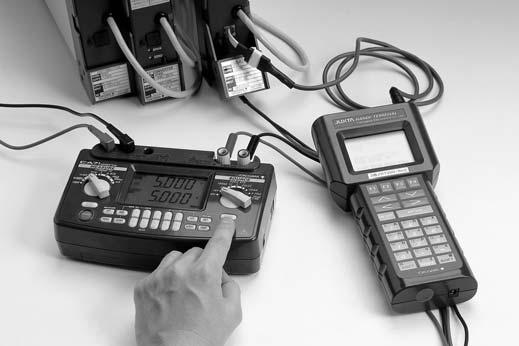

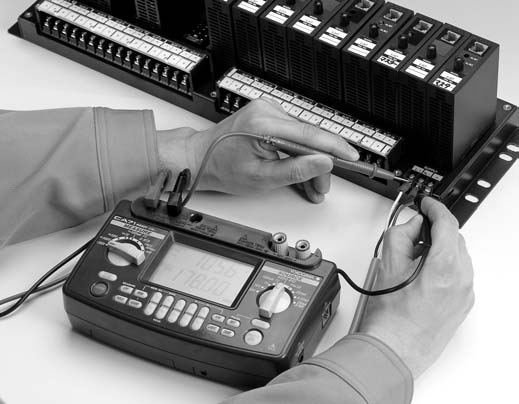

CA51/CA71 Handy Calibrators
The CA51/CA71 Handy Calibrators are compact, lightweight, multifunctional devices designed for calibration and measurement tasks. They can simultaneously source and measure voltage, current, resistance, thermocouple (TC), resistance temperature detector (RTD), frequency, and pulse signals.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Signal Sourcing Output Range DC Voltage | 0-110V |
| Signal Sourcing Output Range DC Current | 0-20mA |
| Signal Sourcing Output Range Resistance | 0-4000Ω |
| Signal Sourcing Output Range TC | K |
| Signal Sourcing Output Range TC | T |
| Signal Sourcing Output Range TC | E |
| Signal Sourcing Output Range TC | J |
| Signal Sourcing Output Range TC | R |
| Signal Sourcing Output Range TC | S |
| Signal Sourcing Output Range TC | B |
| Signal Sourcing Output Range RTD | Pt100, JPt100 |
| Signal Sourcing Output Range Frequency | 500Hz-5000Hz |
| Signal Sourcing Output Range Pulse | 0.01-99.99CPM |
| Measurement Range DC Voltage | 0-110V |
| Measurement Range DC Current | 0-20mA |
| Measurement Range Resistance | 0-4000Ω |
| Measurement Range AC Voltage | 0-110V |
| Measurement Range Frequency | 10Hz-10000Hz |
| Measurement Range Pulse | 0.01-99.99CPM |
| Measurement Range Temperature (CA71 only) | K, T, E, J, R, S, B, Pt100, JPt100 |
| Accuracy DC Voltage | ±0.05% |
| Accuracy DC Current | ±0.05% |
| Accuracy Resistance | ±0.1% |
| Accuracy AC Voltage | ±0.5% |
| Accuracy Frequency | ±0.01% |
| Accuracy Pulse | ±0.01% |
| Accuracy Temperature (CA71 only) | ±1°C |
| Power Supply | Four AA alkaline batteries or external power supply |
| Dimensions | 190×130×55mm |
| Weight | Approx. 980g |
| Memory Function | Up to 50 value sets |
| Interface | RS-232C (CA71 only) |
