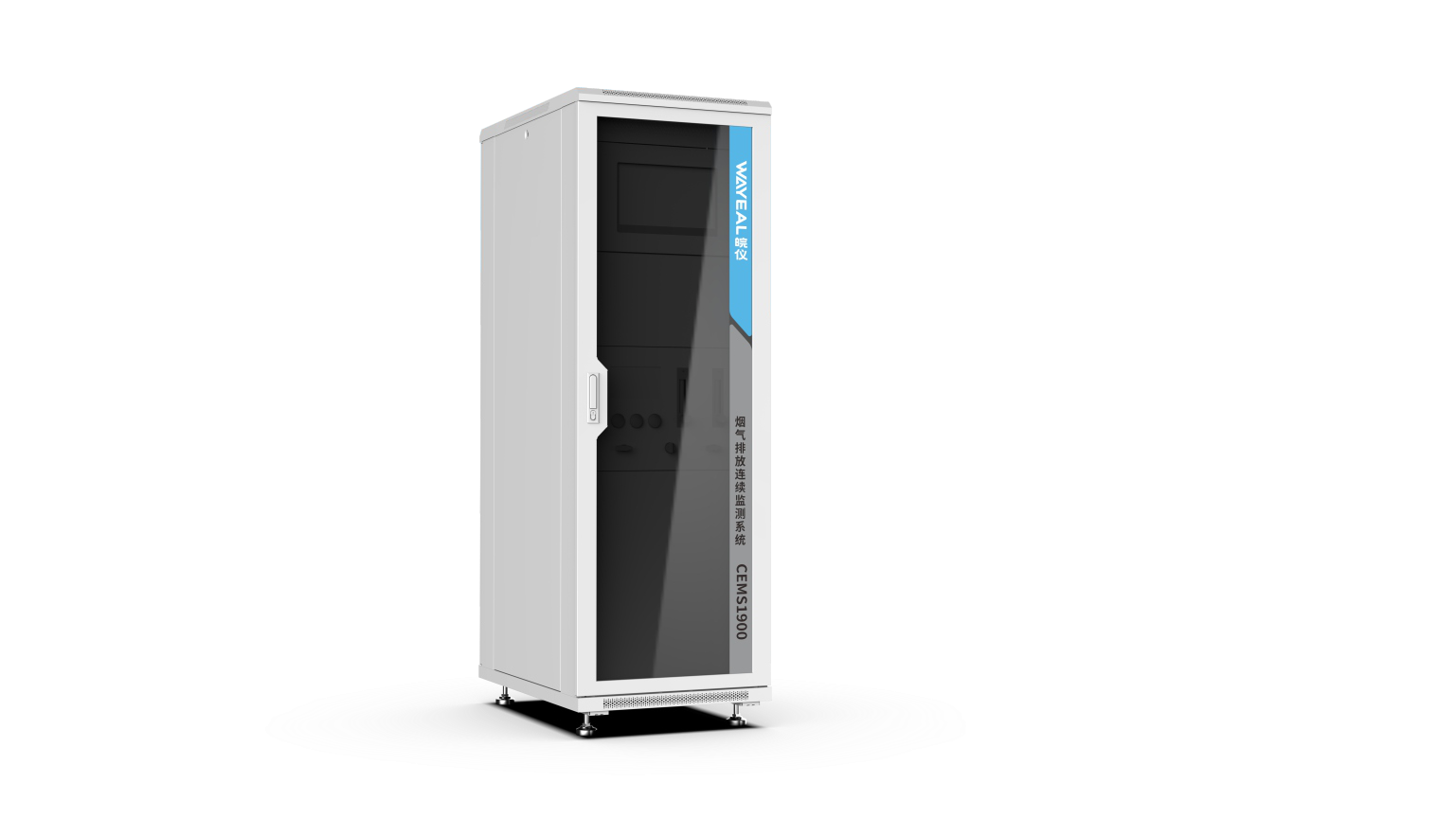

CEMS1900烟气排放监测系统
CEMS1900 is an advanced flue gas emission monitoring system designed for fixed pollution sources. It utilizes tunable infrared absorption technology to measure multiple gas components with high precision.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| SO2 Measurement Range | 0-750mg/m³ |
| NO Measurement Range | 0-2000mg/m³ |
| NO2 Measurement Range | 0-200mg/m³ |
| NH3 Measurement Range | 0-100mg/m³ |
| HCl Measurement Range | 0-100mg/m³ |
| HF Measurement Range | 0-50mg/m³ |
| CO Measurement Range | 0-2000mg/m³ |
| H2O Measurement Range | 0-40% |
| Measurement Accuracy | ±2% |
| Measurement Temperature | ≤200°C |
| Ambient Temperature | -20°C-45°C |
| Ambient Humidity | ≤90% |
| Heating Temperature | +200°C |
