M6 Fusion Splicer
The M6 Fusion Splicer is a high-performance optical fiber splicing device designed for efficient and precise fiber optic connections.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Applicable Fiber | SMF(G.652)/MMF(G.651)/DSF(G.653)/NZDSF(G.655) |
| Fiber Diameter | 包层:80-150um;涂覆层:0.1-3mm |
| Splicing Loss | 0.02dB(SMF)/0.01dB(MMF)/0.04dB(DSF/NZDSF) |
| Alignment Method | 纤芯, 包层 |
| Focusing Method | 六马达自动聚焦 |
| Splicing Method | 自动/半自动/手动 |
| Splicing Time | 6秒(SMF典型值) |
| Tensile Test | 1.96-2.25N |
| Image Display | 电容式4.3寸触摸液晶屏 |
| Magnification | 300(X/Y)/150(X/Y同步) |
| Splicing Records | 10000组数据, 2000张或1000张Image |
| Typical Heating Time | 16S(时间可选0-60S) |
| Heating Mode Groups | 200 |
| Splicing Mode Groups | 200 |
| Local OPM | 范围(dBm):-70~+6/波长(nm):850-1625nm/不Confirm度:±5% |
| Red Light (VFL) | >10mW |
| Operation Interface | GUI图形化用户操作界面 |
| Other Functions | 支持绑定手机, 下载APP连接蓝牙(选配) |
| Electrode Life | 3000次 |
| Battery Capacity | 5200mAh(熔接 and 加热≥180次) |
| Input Voltage | DC11.1V |
| Charging Input | AC100-240V, 50/60Hz |
| Charging Output | DC13.5V/5A |
| USB Output | 5V/500mA |
| Charging Time | ≤3.5小时 |
| Lighting Method | 自动/手动 |

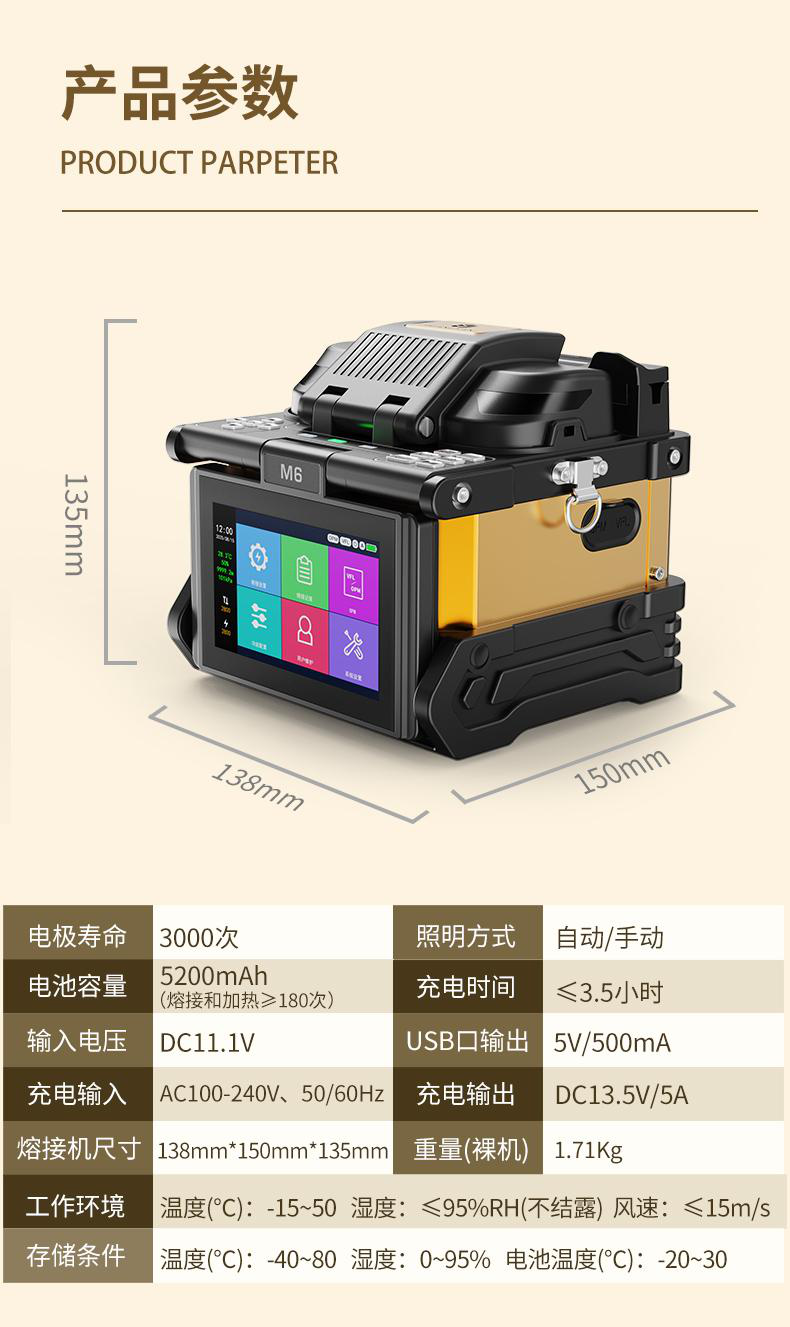

| Splicer Dimensions | 138mm*150mm*135mm |
| Weight (Net) | 1.71Kg |
| Working Environment | 温度(℃):-15~50 湿度:≤95%RH(不结露) 风速:≤15m/s |
| Storage Conditions | 温度(℃):-40~80 湿度:0~95% 电池温度(℃):-20~30 |
