Fiber Optic Fusion Splicer
A high-performance fiber optic fusion splicer designed for precise and efficient fiber optic splicing, suitable for various fiber types and applications.
Save to Favorites
Overview

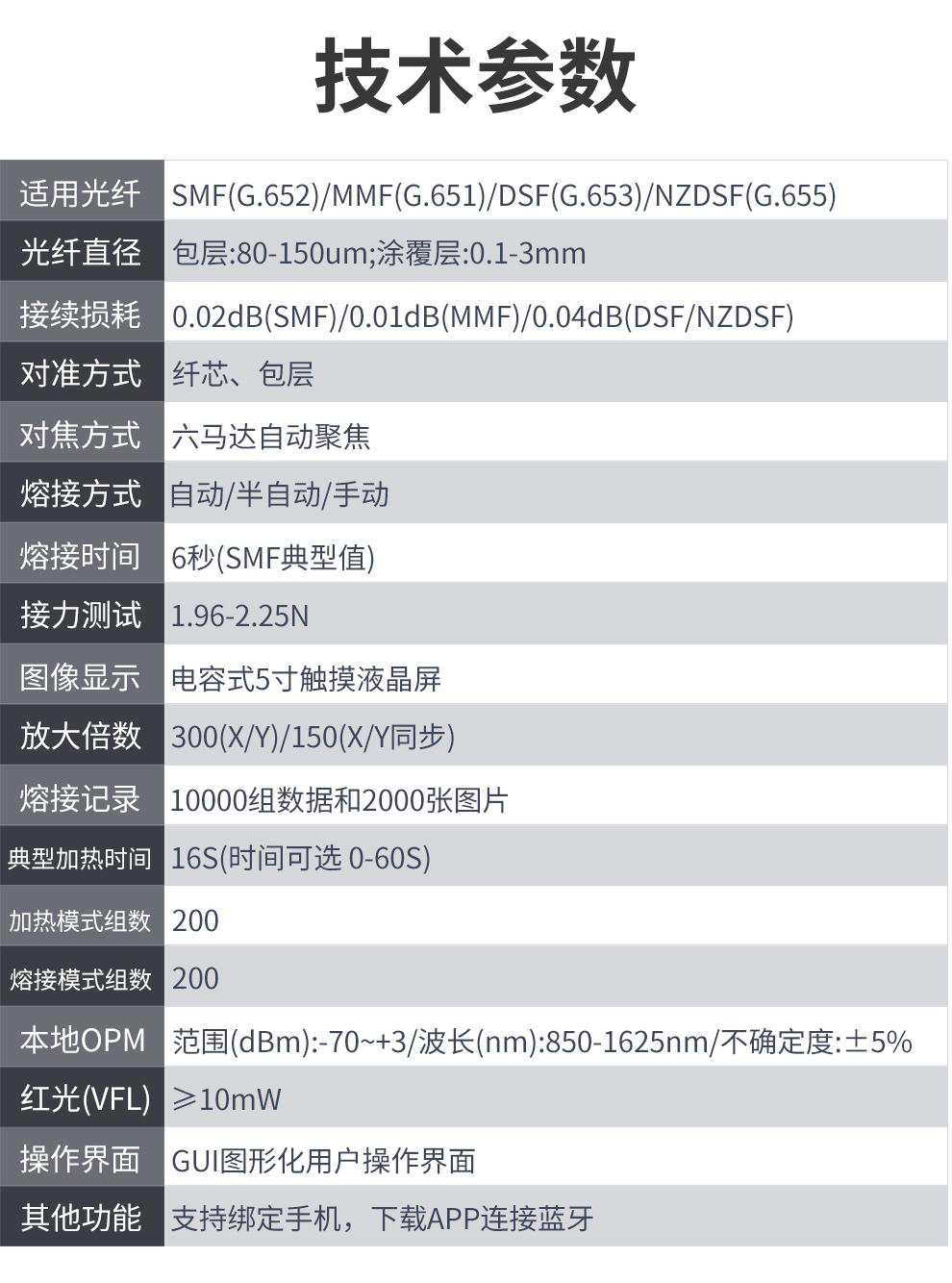

Specifications
| Parameter | Value |
|---|---|
| Electrode Life | 3000次 |
| Battery Capacity | 7800mAh(熔接 and 加热240次) |
| Input Voltage | DC11.1V |
| Charging Input | AC100-240V,50/60Hz |
| Charging Time | ≤3.5小时 |
| USB Output | 5V/500mA |
| Charging Output | DC13.5V/5A |
| Splicer Dimensions | 201mm×148mm×119mm |
| Toolbox Dimensions | 342mm×280mm×187mm |
| Weight (Bare Machine) | 1.81KG |
| Weight (With Accessories) | 4.58KG |
| Working Environment | 温度(°C):-15~50 湿度:≤95%RH(不结露) 风速:≤15m/s |
| Storage Conditions | 温度(°C):-40~80 湿度:0~95% 电池温度(°C):-20~30 |
| Applicable Fiber | SMF(G.652)/MMF(G.651)/DSF(G.653)/NZDSF(G.655) |
| Fiber Diameter | 包层:80-150um;涂覆层:0.1-3mm |
| Splicing Loss | 0.02dB(SMF)/0.01dB(MMF)/0.04dB(DSF/NZDSF) |
| Alignment Method | 纤芯,包层 |
| Focusing Method | 六马达自动聚焦 |
| Splicing Method | 自动/半自动/手动 |
| Splicing Time | 6秒(SMF典型值) |
| Tensile Test | 1.96-2.25N |
| Image Display | 电容式5寸触摸液晶屏幕 |
| Magnification | 300(X/Y)/150(X/Y同步) |
| Splicing Records | 10000组数据 and 20000张Image |
| Typical Heating Time | 16S(时间可选0-60S) |
| Heating Mode Groups | 200 |
| Splicing Mode Groups | 200 |
| Local OPM | 范围(dBm):-70~+3/波长(nm):850-1625nm/不Confirm度:±5% |
| Red Light (VFL) | >10mW |
| Operation Interface | GUI图形化用户操作界面 |
| Other Functions | 支持绑定手机,下载APP连接蓝牙 |
