Fiber Fusion Splicer
A high-performance fiber fusion splicer designed for precise and efficient fiber optic splicing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Electrode Life | 3000次 |
| Battery Capacity | 7800mAh (焊接 and 加热240次) |
| Input Voltage | DC11.1V |
| Charging Input | AC100-240V, 50/60Hz |
| Charging Time | ≤3.5小时 |
| USB Output | 5V/500mA |
| Charging Output | DC13.5V/4A |
| Splicer Dimensions | 191*141*119mm |
| Toolbox Dimensions | 5V/500mA |
| Weight (Bare Machine) | 1.62KG (含电池) |
| Weight (With Accessories) | 4.58KG |
| Working Environment Temperature (℃) | -15~50 |
| Working Environment Humidity | ≤95%RH (不结露) |
| Working Environment Wind Speed | ≤15m/s |
| Storage Conditions Temperature (℃) | -40~80 |
| Storage Conditions Humidity | 0~95% |
| Storage Conditions Battery Temperature (℃) | -20~30 |

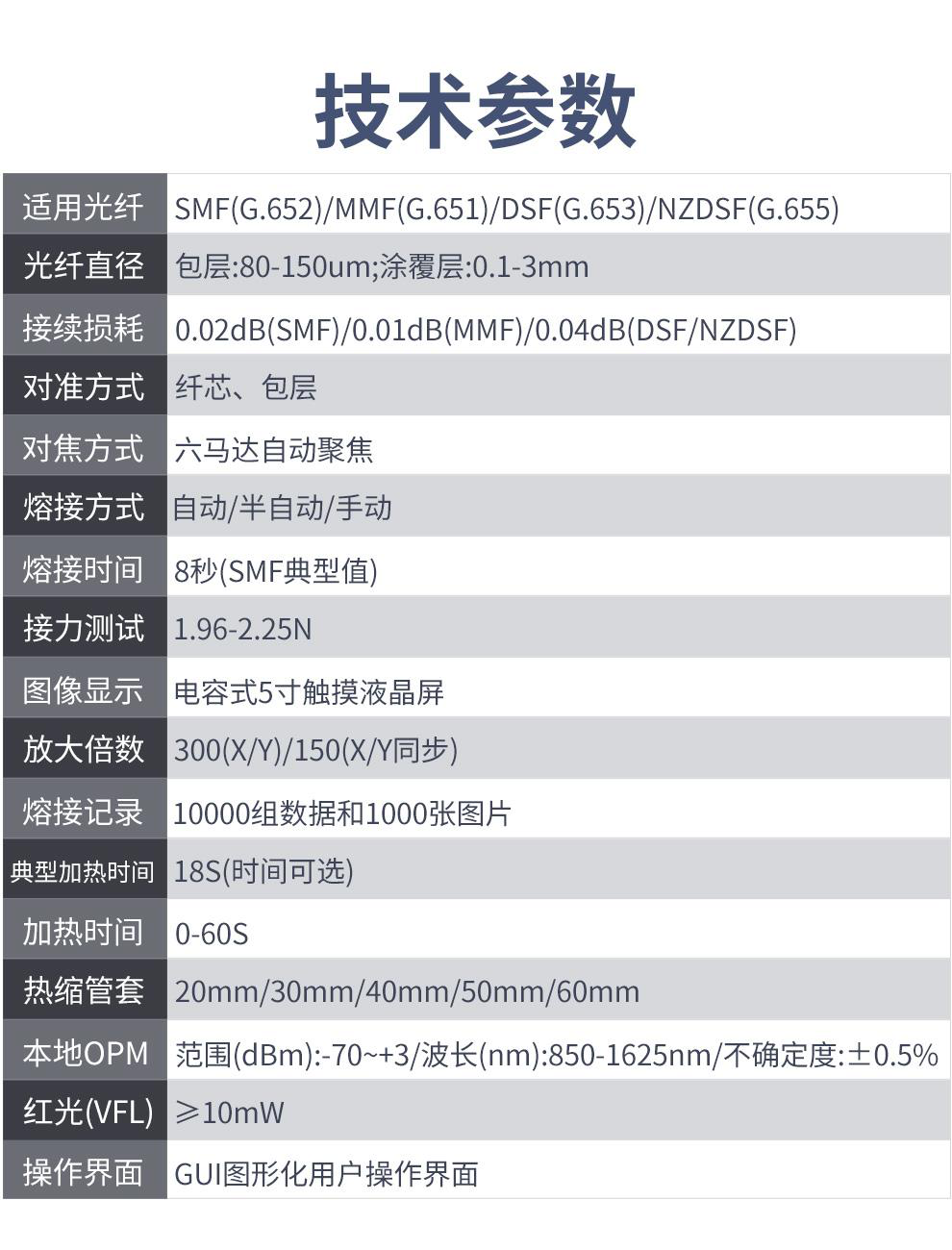

| Applicable Fiber | SMF(G.652)/MMF(G.651)/DSF(G.653)/NZDSF(G.655) |
| Fiber Diameter | 包层:80-150um;涂覆层:0.1-3mm |
| Splicing Loss | 0.02dB(SMF)/0.01dB(MMF)/0.04dB(DSF/NZDSF) |
| Alignment Method | 纤芯, 包层 |
| Focusing Method | 六点达自动聚焦 |
| Splicing Method | 自动/半自动/手动 |
| Splicing Time | 8秒(SMF典型值) |
| Tensile Test | 1.96-2.25N |
| Image Display | 电容式5寸触摸液晶屏 |
| Magnification | 300(X/Y)/150(X/Y同步) |
| Splicing Records | 10000组数据 and 10000张Image |
| Typical Heating Time | 18S(时间可选) |
| Heating Time | 0-60S |
| Heat Shrink Tubes | 20mm/30mm/40mm/50mm/60mm |
| Local OPM | 范围(dBm):-70~+3/波长(nm):850-1625nm/不Confirm度:±0.5% |
| Red Light (VFL) | >10mW |
| Operation Interface | GUI图形化用户操作界面 |
