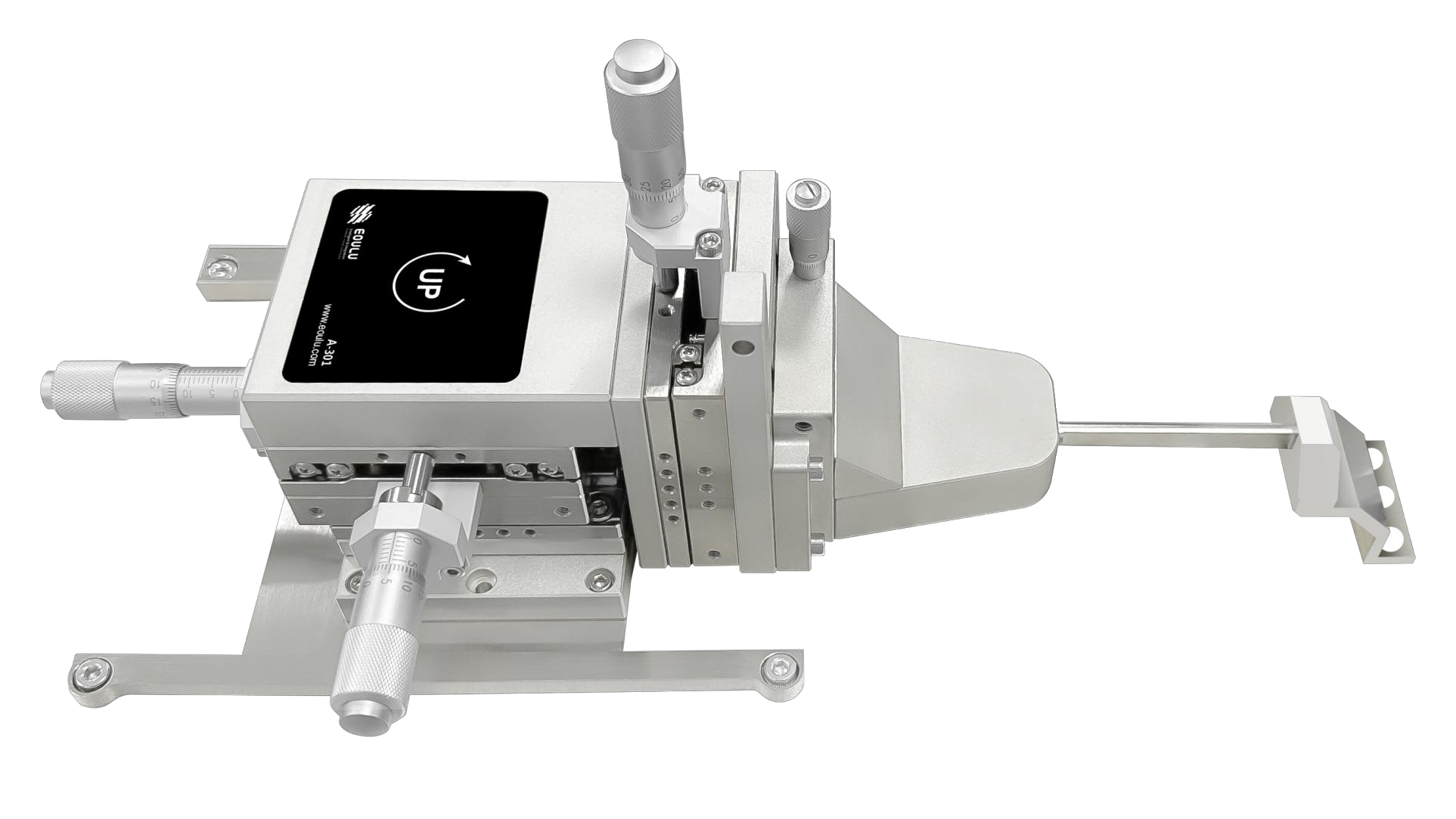

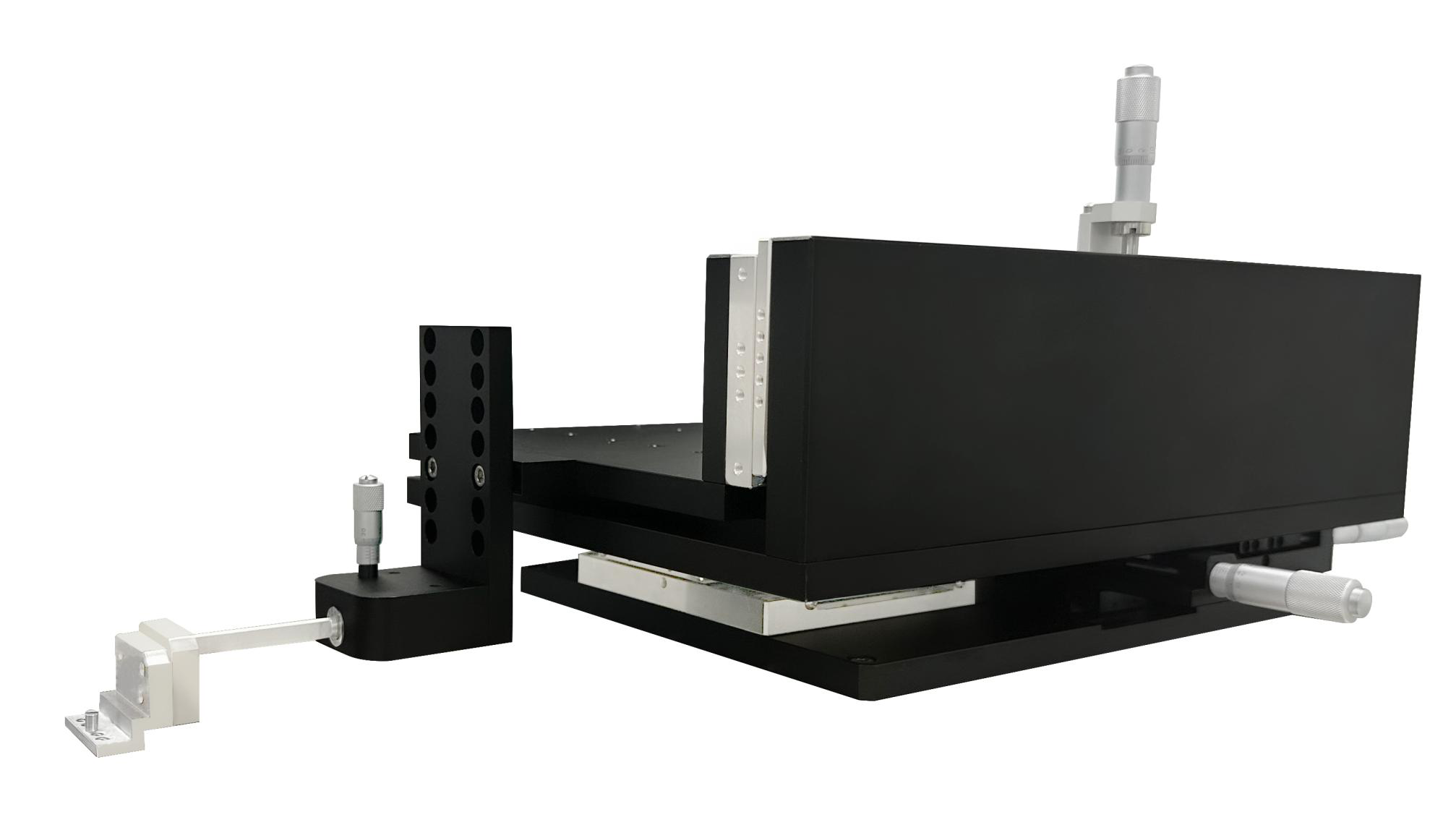

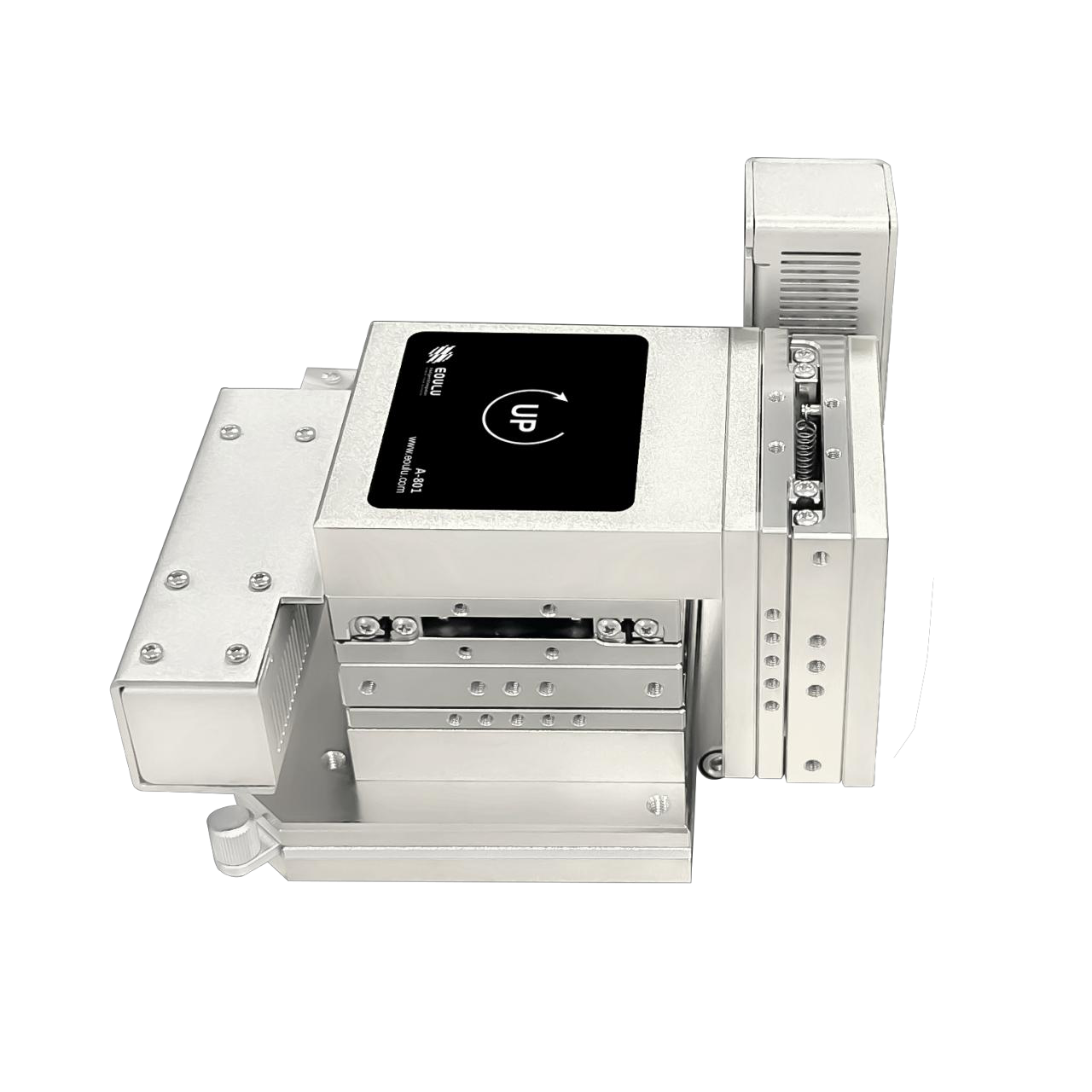

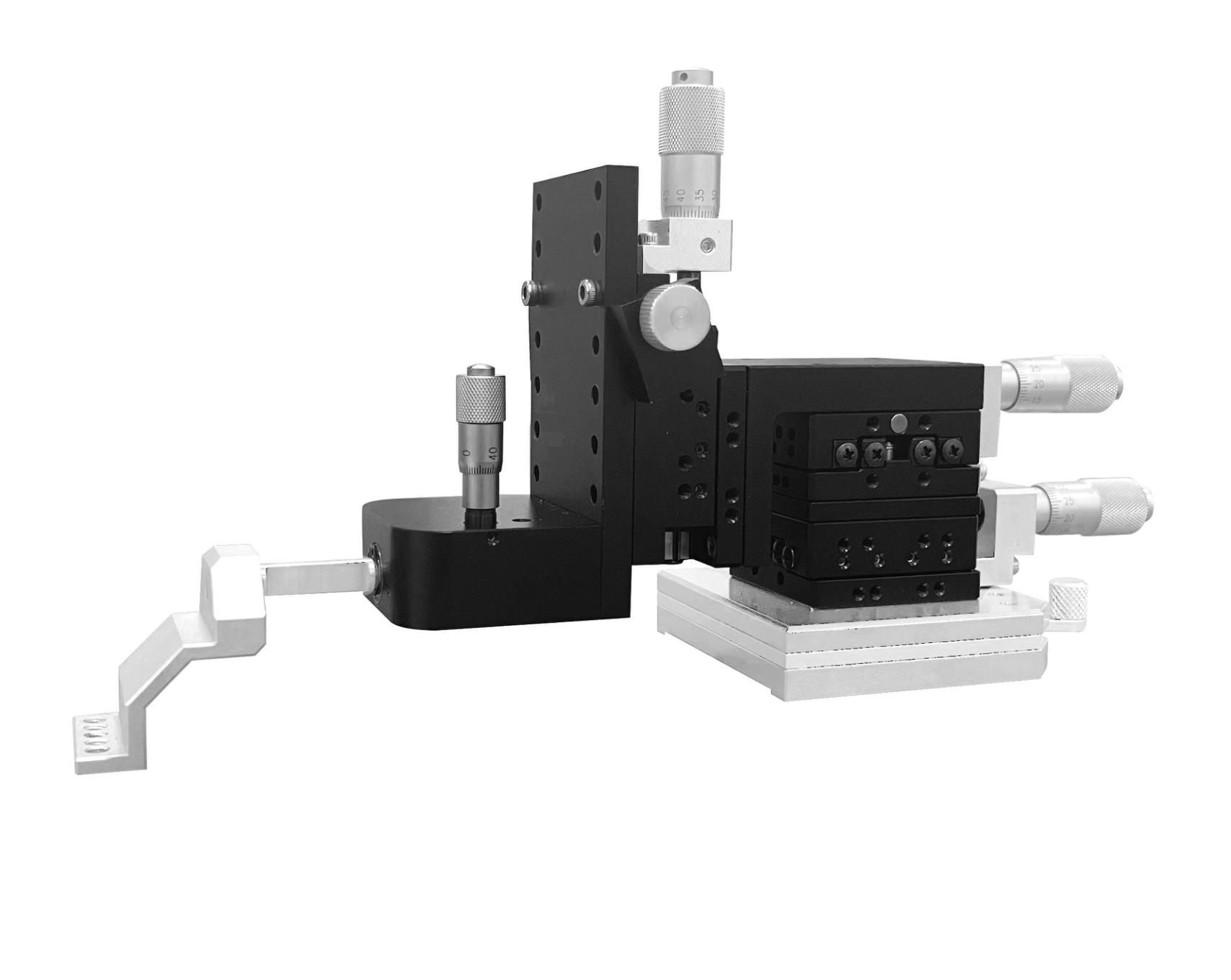

Positioner Series

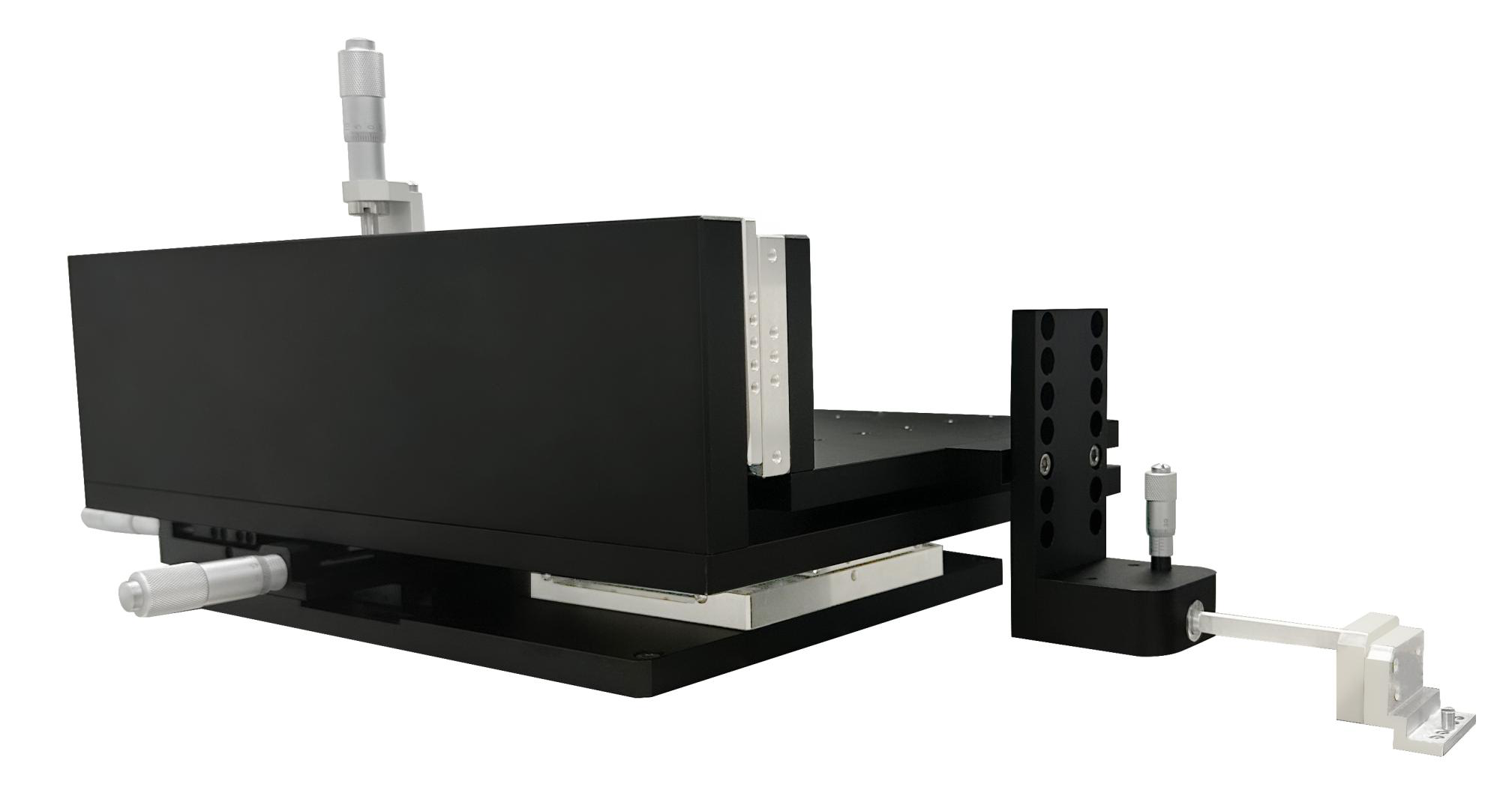

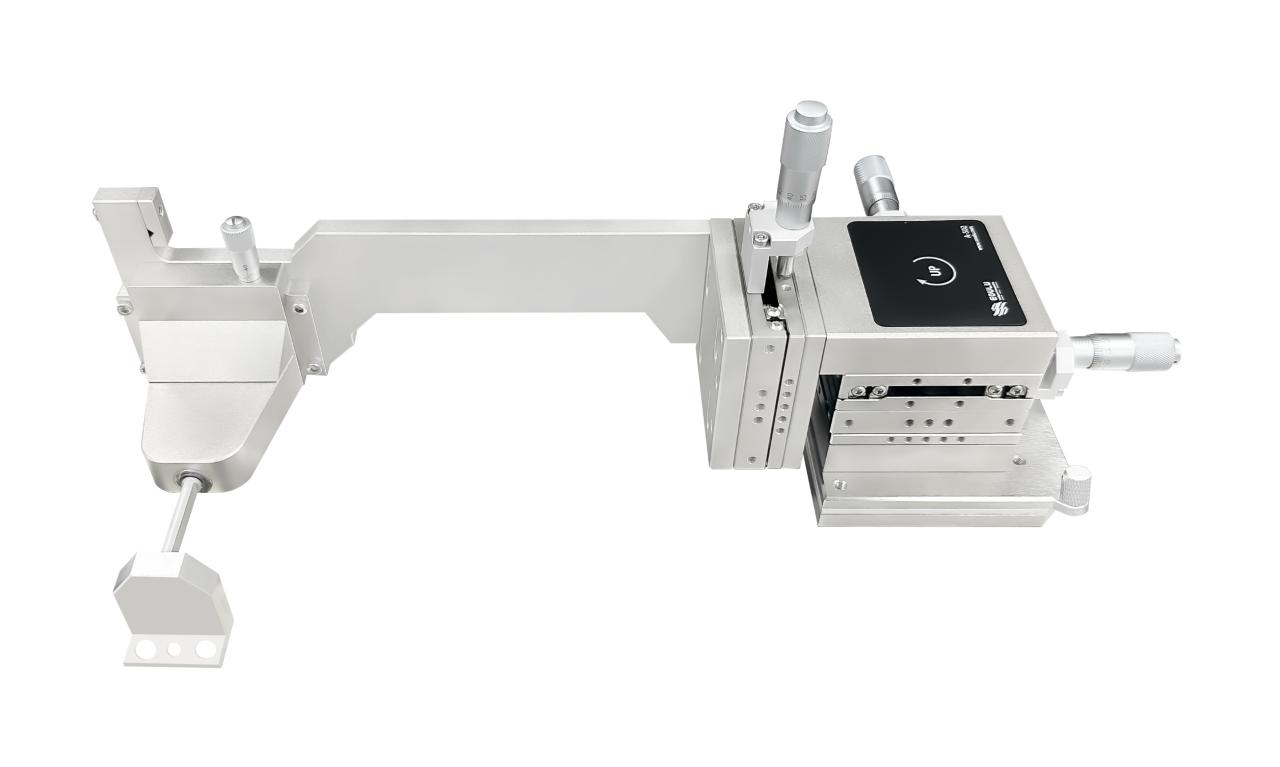

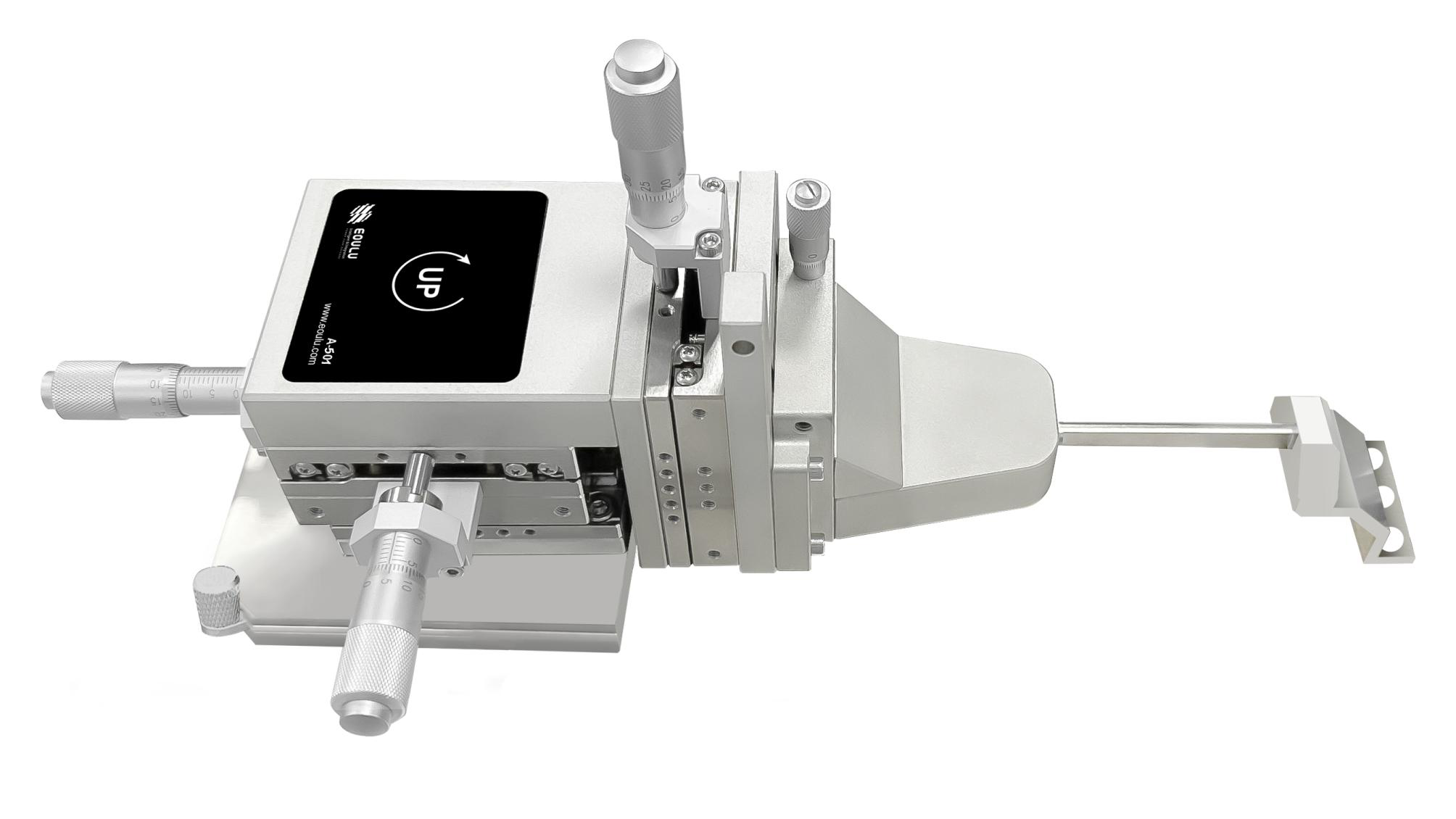

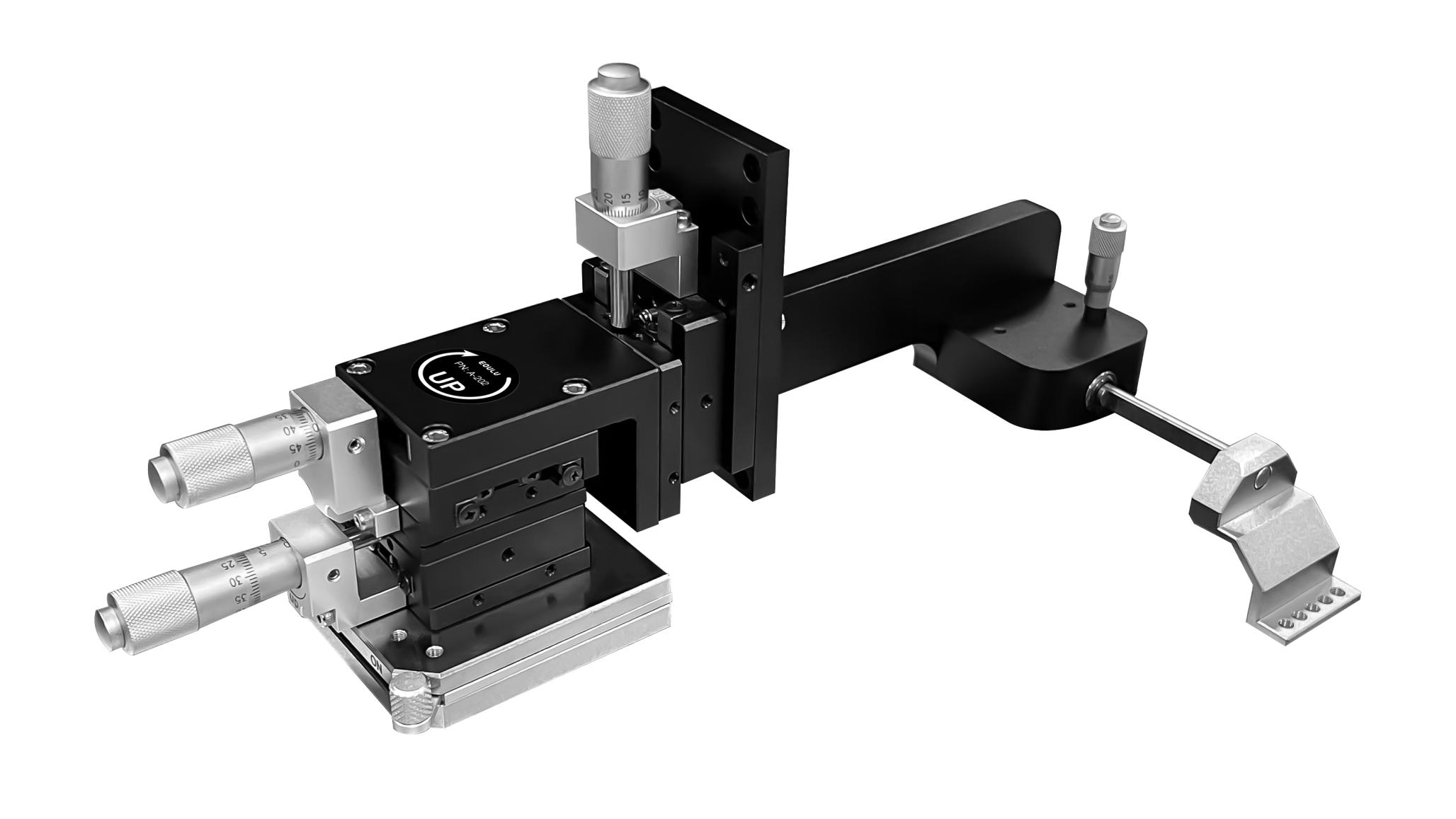

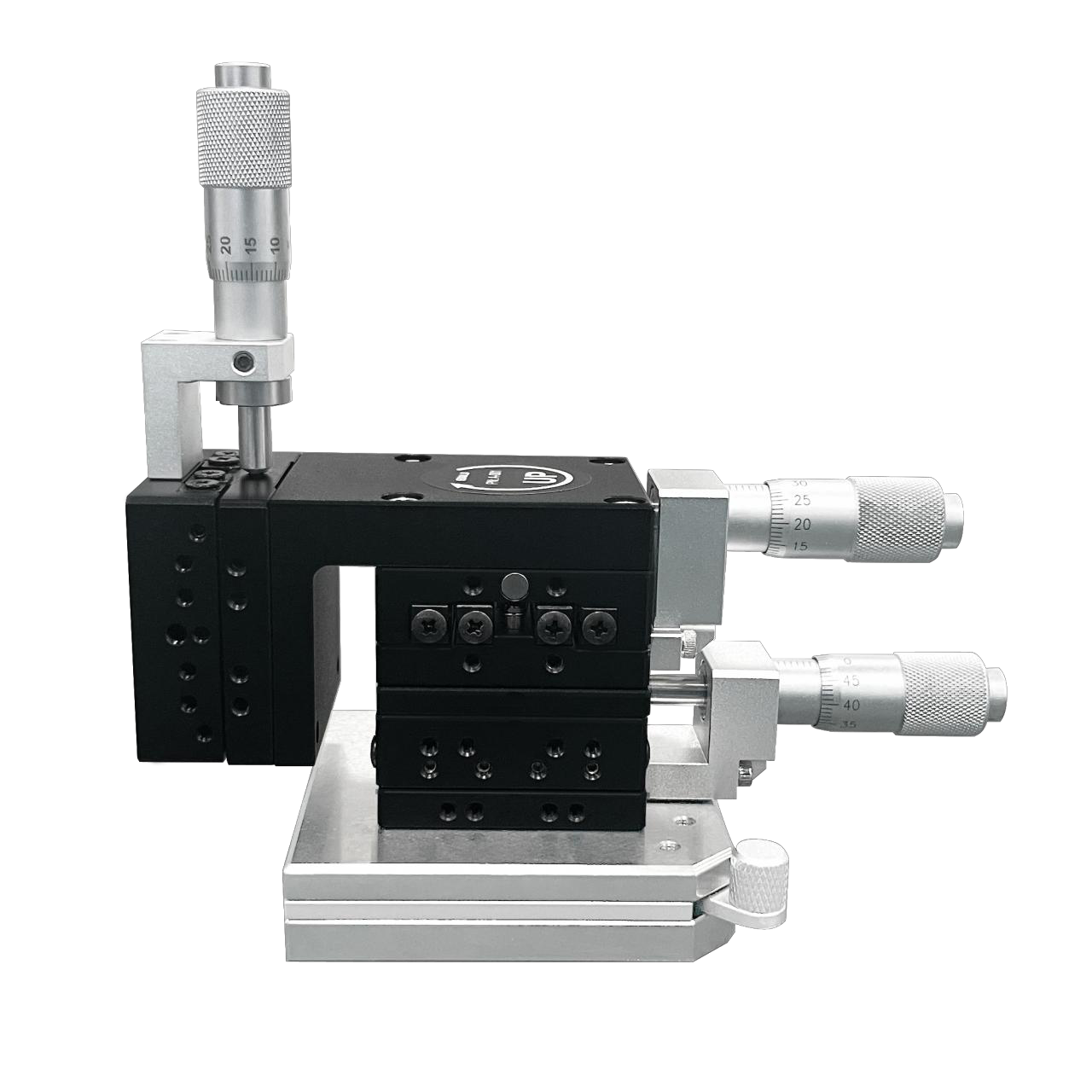

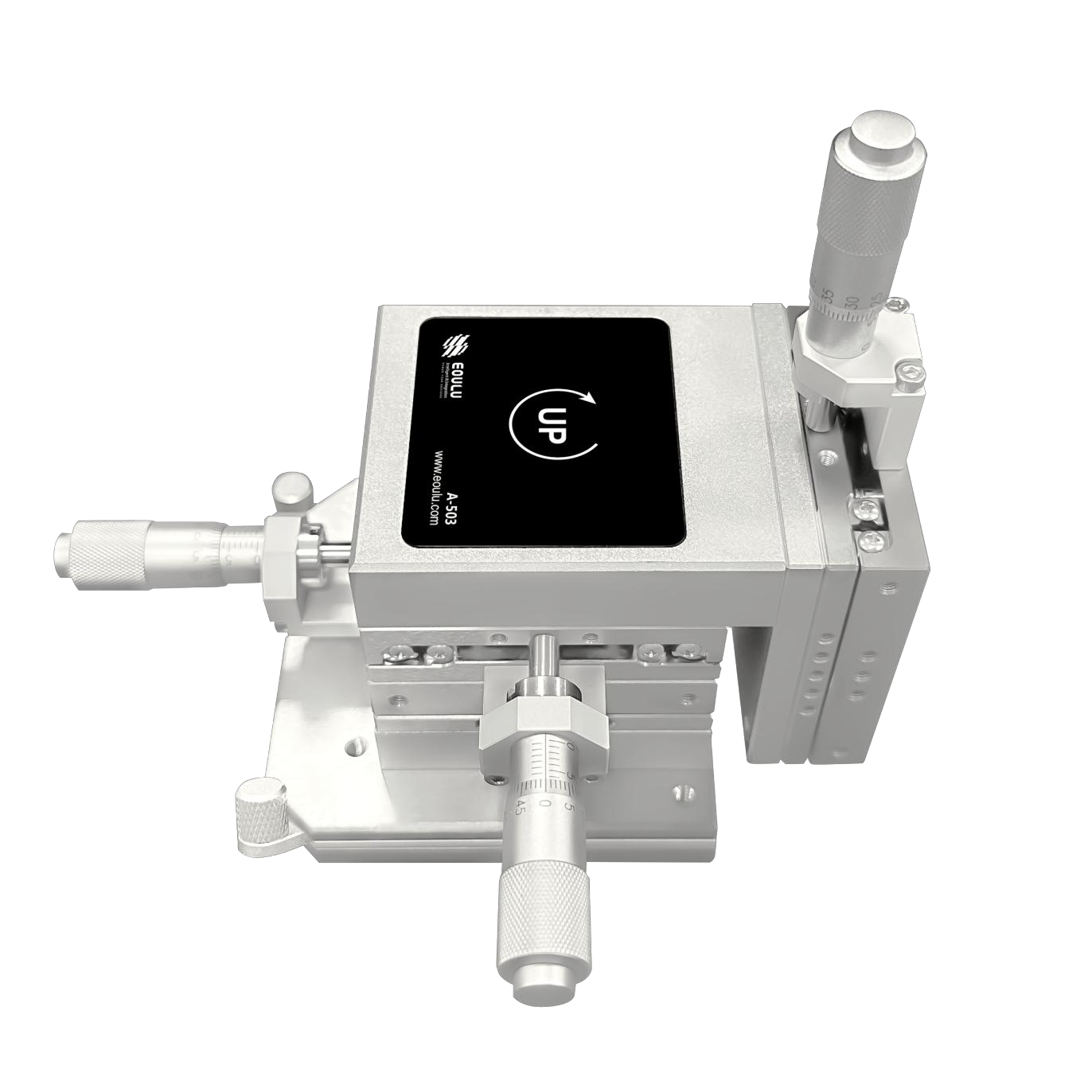

The Positioner Series by EOULU offers a range of high-precision manual and motorized positioners designed for various applications, including IV/CV testing, RF testing, and MMW testing. These positioners are equipped with magnetic or screw fixation and provide exceptional movement resolution and stability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Movement Resolution | <5μm, <2μm |
| Travel Range (X/Y/Z) | 12.5mm/12.5mm/12.5mm, 25mm/25mm/13mm |
| Fixation Method | Magnetic fixation |
| Fixation Method | Screw fixation |
| Fixed Dimensions (W×D) | 65mm×65mm, 83mm×83mm, 113.3mm×142.5mm, 169mm×108mm |
| Applications | IV/CV, RF testing, MMW testing |
Applications
Key Features
Datasheet
