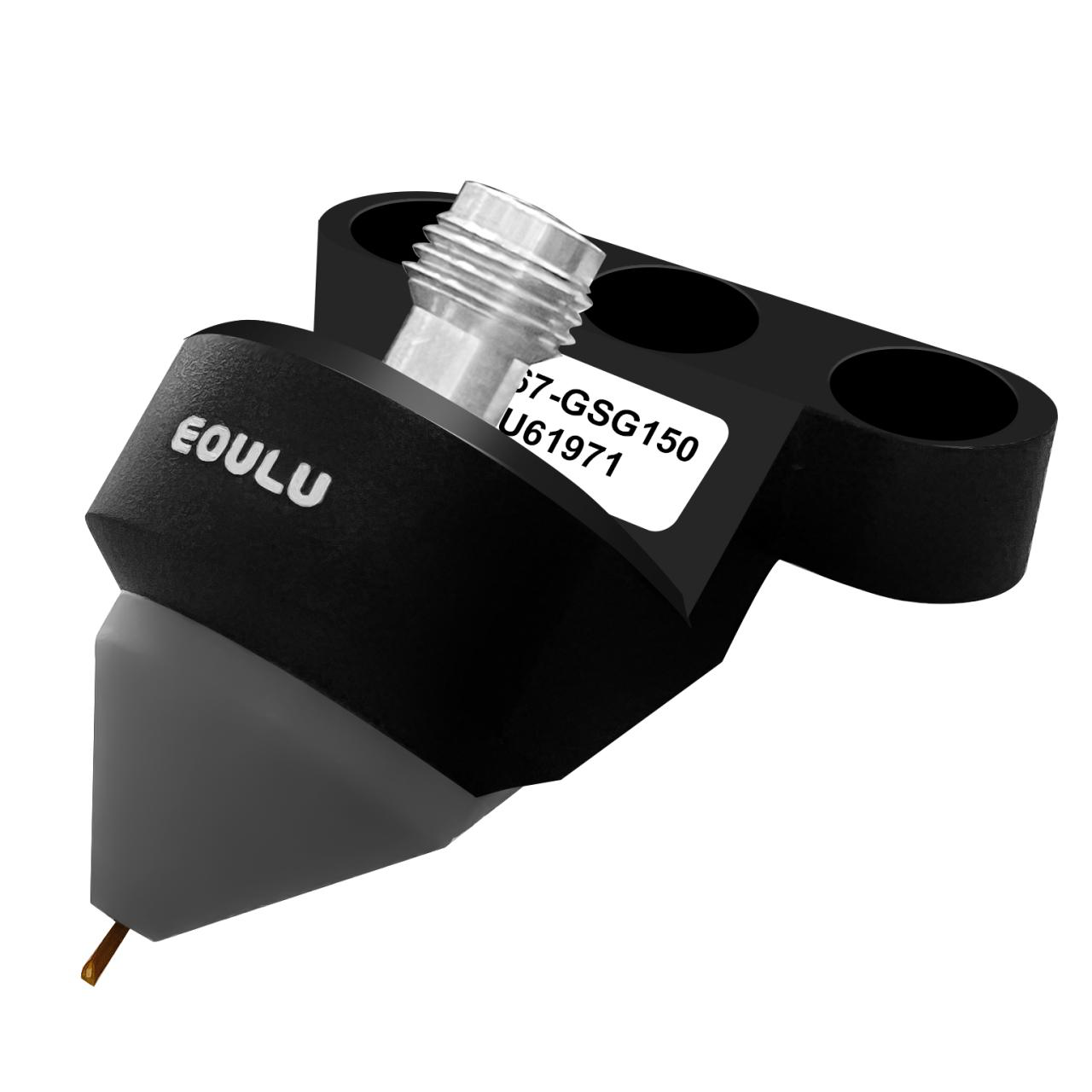

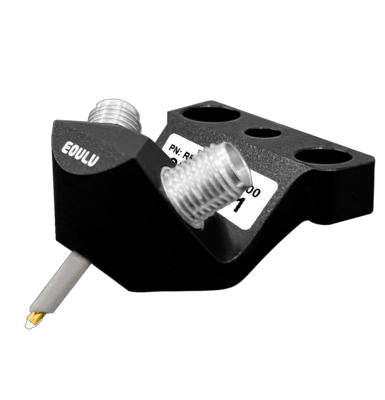

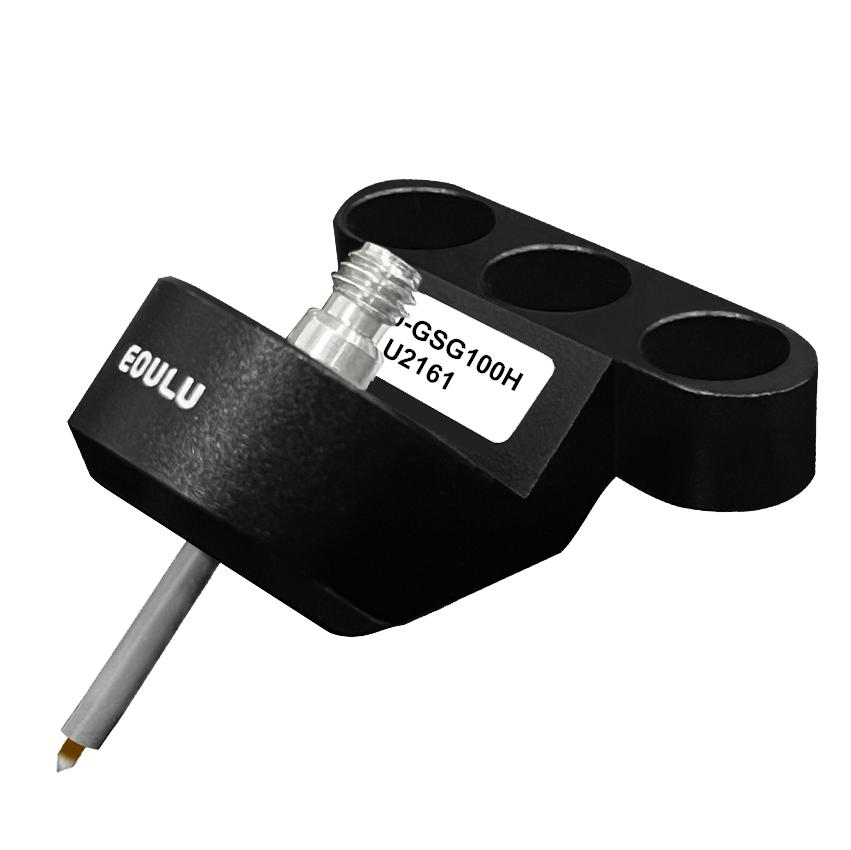

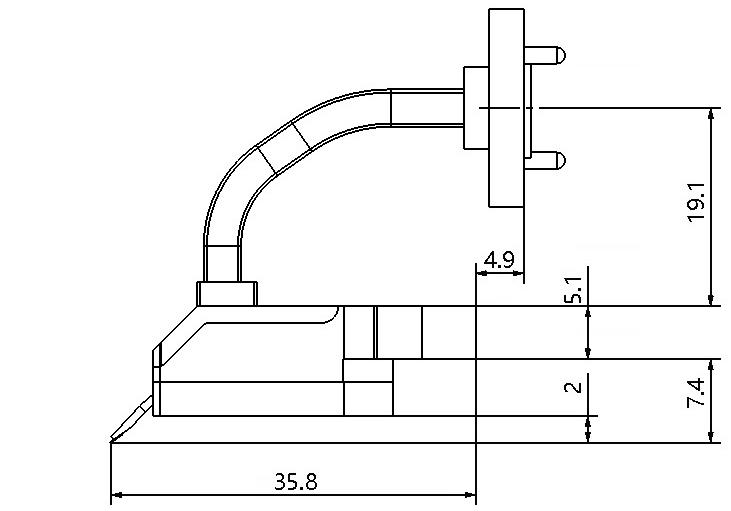

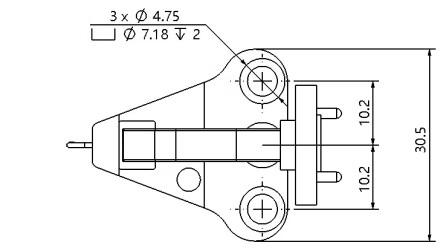

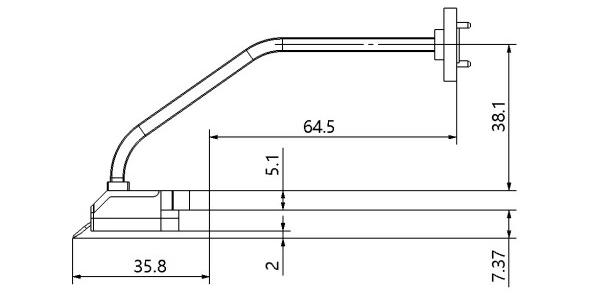

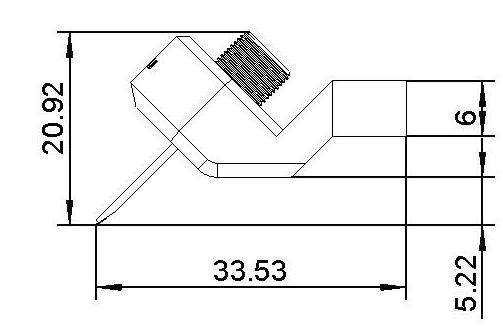

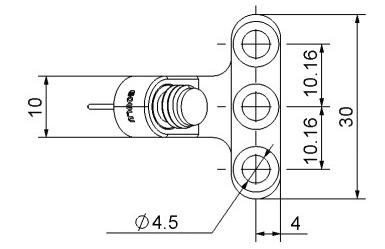

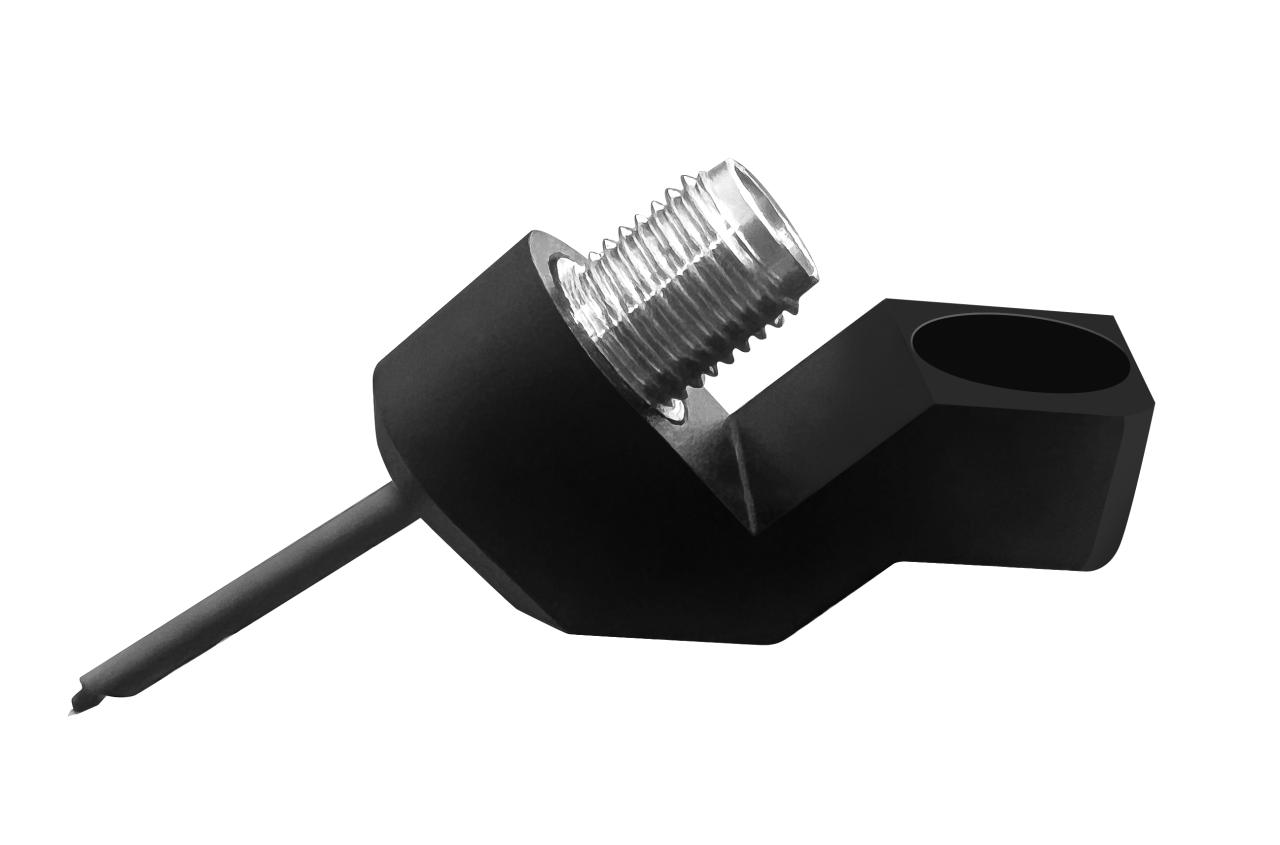

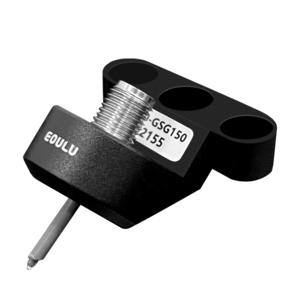

Eoulu Sky Series Probe Needle
Eoulu Sky Series Probe Needle is designed for high-frequency testing applications, offering exceptional precision and reliability. It supports a wide temperature range and is suitable for uneven surfaces.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | DC-40GHz |
| Insertion Loss | ≤0.39dB |
| Return Loss | ≥17.0dB |
| Characteristic Impedance | 50Ω |
| Contact Resistance | <10mΩ |
| Maximum DC Current | 200V |
| Probe Pitch | 50μm-1250μm |
| Tip Material | Gold alloy |
| Durability | ≥1,000,000 |
| Operating Temperature | -60°C-200°C |
| Minimum Pad Size | 70×70μm |
Applications
Key Features
Datasheet
