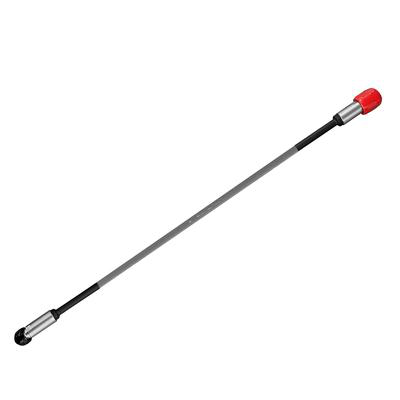

射频线缆
EOULU's RF cables are designed for high-frequency signal transmission with low loss and stable performance, making them ideal for various applications in the optical and electronic industries.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Test Frequency C40-010 | DC~40GHz |
| Test Frequency C50-009 | DC~50GHz |
| Test Frequency C67-009 | DC~67GHz |
| Test Frequency C110-006 | DC~110GHz |
| Test Frequency C110-007 | DC~110GHz |
| Connector Type C40-010 | 2.92mm to 2.92mm (female to male) |
| Connector Type C50-009 | 2.4mm to 2.4mm (female to male) |
| Connector Type C67-009 | 1.85mm to 1.85mm (female to male) |
| Connector Type C110-006 | 1.0mm to 1.0mm (female to male) |
| Connector Type C110-007 | 1.0mm to 1.0mm (female to male) |
| Cable Length C40-010 | 120cm |
| Cable Length C50-009 | 120cm |
| Cable Length C67-009 | 90cm |
| Cable Length C110-006 | 18cm |
| Cable Length C110-007 | 24cm |
| Insertion Loss (dB) C40-010 | 3.50dB |
| Insertion Loss (dB) C50-009 | 4.49dB |
| Insertion Loss (dB) C67-009 | 6.48dB |
| Insertion Loss (dB) C110-006 | 4.38dB |
| Insertion Loss (dB) C110-007 | 5.34dB |
| Typical VSWR C40-010 | 1.25:1 |
| Typical VSWR C50-009 | 1.30:1 |
| Typical VSWR C67-009 | 1.35:1 |
| Typical VSWR C110-006 | 1.35:1 |
| Typical VSWR C110-007 | 1.35:1 |
| Typical Amplitude Stability C40-010 | ±0.05dB |
| Typical Amplitude Stability C50-009 | ±0.05dB |
| Typical Amplitude Stability C67-009 | ±0.05dB |
| Typical Amplitude Stability C110-006 | ±0.05dB |
| Typical Amplitude Stability C110-007 | ±0.05dB |
| Typical Phase Stability C40-010 | ±5° |
| Typical Phase Stability C50-009 | ±6° |
| Typical Phase Stability C67-009 | ±8° |
| Typical Phase Stability C110-006 | ±2° |
| Typical Phase Stability C110-007 | ±2° |
