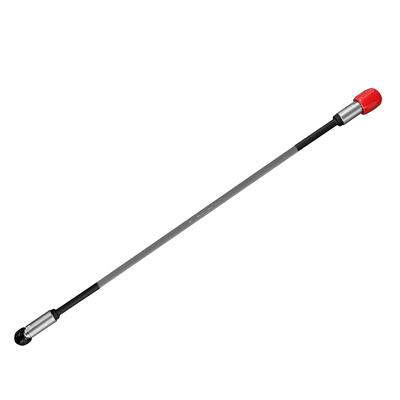

C Series RF Cable
The C Series RF Cable is designed for low loss and low reflection, providing stable phase and amplitude with excellent transmission performance. It is cost-effective and highly reliable.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Test Frequency | DC~40GHz, DC~50GHz, DC~67GHz, DC~110GHz |
| Connector Type | 2.92mm to 2.92mm (male to male), 2.4mm to 2.4mm (female to male), 1.85mm to 1.85mm (female to male), 1.0mm to 1.0mm (female to male) |
| Cable Length | 120cm, 120cm, 90cm, 18cm, 24cm |
| Insertion Loss (dB) | 3.50dB, 4.49dB, 6.48dB, 4.38dB, 5.34dB |
| Typical VSWR | 1.25:1, 1.30:1, 1.35:1, 1.35:1, 1.35:1 |
| Typical Amplitude Stability | ±0.05dB |
| Typical Phase Stability | ±5°, ±6°, ±8°, ±2°, ±2° |
Applications
Key Features
Datasheet
Supplier Information
