FD1700S

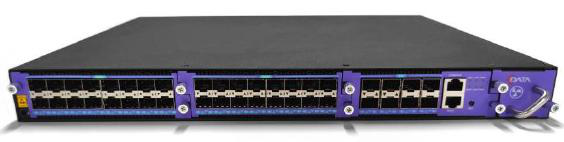

The FD1700S GPON OLT is a 1RU device that complies with ITU G.984.x and FSAN standards. It features uplink SFP ports supporting 1G/10G and 10G/25G configurations, and PON ports available in 4/8/16 configurations with a splitting ratio of 1:128, accommodating up to 4096 terminal connections.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Management Rack | 1U 19-inch standard box |
| Dimensions | 440*375*44mm |
| Weight | About 6kg |

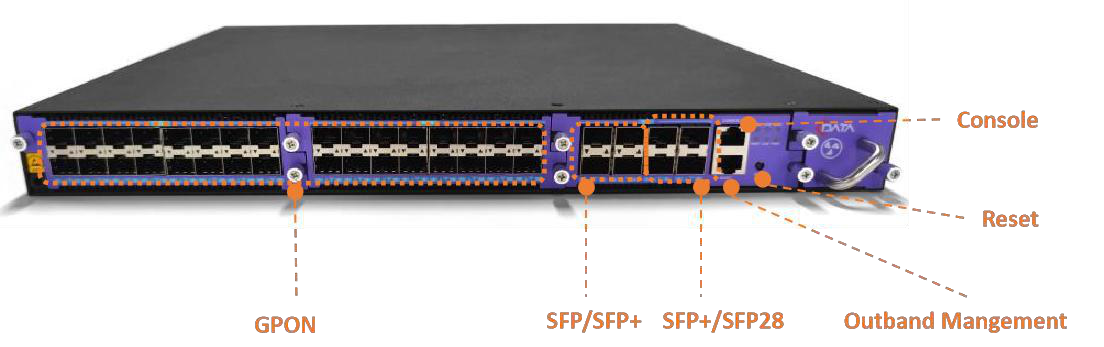

| Uplink Port | 4*1G(SFP)/10G SFP+, 4*10G(SFP+)/25G(SFP28) |
| PON Port Quantity | Two boards, each with 4/8/16 GPON configurations |
| Physical Interface | SFP slot |
| Interface Type | SC/UPC |
| Max Splitting Ratio | GPON: 1:128 |
| Management Port | 1 100/1000BASE-Tx out-band Ethernet port, 1 CONSOLE local management port |
| Transmission Distance | 20KM |
| Port Rate | GPON: Downstream: 2.5Gbps, Upstream: 1.25Gbps |
| Wavelength | Forwarding: 1490nm, Receiving: 1310nm |
| Fiber Type | 9/125μm SMF (Single Mode Fiber) |
| Light Transmission Power | Class B+: +1.5~+5dBm, Class C+: +3~+7dBm |
| Receiving Sensitivity | Class B+: -28dBm, Class C+: -30dBm |
| Saturation Power | Class B+: -8dBm, Class C+: -12dBm |
| Backplane Bandwidth | 400G |
| AC Power Supply | -40~57V |
| DC Power Supply | 90V~240V |
| Working Temperature | -15~50℃ |
| Storage Temperature | -40~85℃ |
| Ambient Humidity | 5~90% (Non-condensing) |
