FD1608S-B2

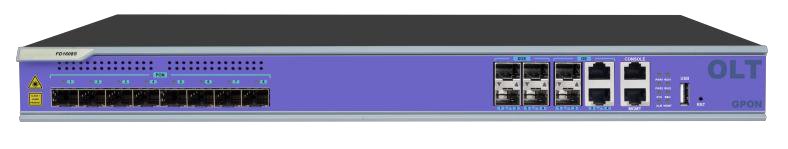

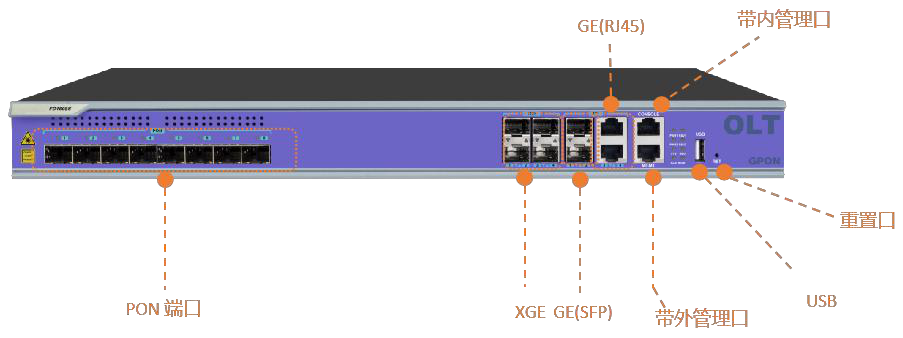

The FD1608S-B2 is a high-performance GPON OLT device that complies with ITU G.984.x and FSAN standards. It is a 1U rack-mounted device equipped with 1 USB port, 2 uplink electrical ports, 2 uplink SFP ports, 4 uplink 10GE ports, and 8 GPON ports. Each GPON port supports a 1:128 split ratio, allowing the GPON system to support up to 1024 ONT connections.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 440mm(L)*276mm(W)*44mm(H) |
| Weight | 4.50kg |
| Number of Uplink Ports | 2 |
| Uplink Port Type | SFP |
| Uplink Port Speed | 10-Gigabit |
| Number of PON Ports | 8 |
| PON Port Type | SFP Slots |
| GPON Standard | ITU-T G.984.2 Class B+/Class C+/Class C++/Class C+++ |
| Maximum Splitting Ratio | 1:128 |
| Number of Management Ports | 1 |
| Management Port Type | CONSOLE 100/1000BASE-T |
| Number of USB Ports | 1 |
| USB Port Function | Backup configuration |
| USB Port Function | upgrade program |
| USB Port Function | log information export |
| Transmission Distance | 20KM |
| Downstream Rate | 2.5Gbps |
| Upstream Rate | 1.25Gbps |
| Downstream Wavelength | 1490nm |
| Upstream Wavelength | 1310nm |
| Fiber Type | 9/125μm SMF |
| Receiver Sensitivity Class B+ | -28dBm |
| Receiver Sensitivity Class C+ | -30dBm |
| Receiver Sensitivity Class C++ | -32dBm |
| Receiver Sensitivity Class C+++ | -35dBm |
| Saturation Power Class B+ | +8dBm |
| Saturation Power Class C+ | +8dBm |
| Saturation Power Class C++ | +12dBm |
| Saturation Power Class C+++ | +10dBm |
| Backplane Bandwidth | 118G |
| AC Power | 100V~240V, 47~63Hz |
| DC Power | -40V~-72V |
| Operating Temperature | -15°C~50°C |
| Storage Temperature | -40°C~85°C |
| Relative Humidity | 5%~90% (non-condensing) |

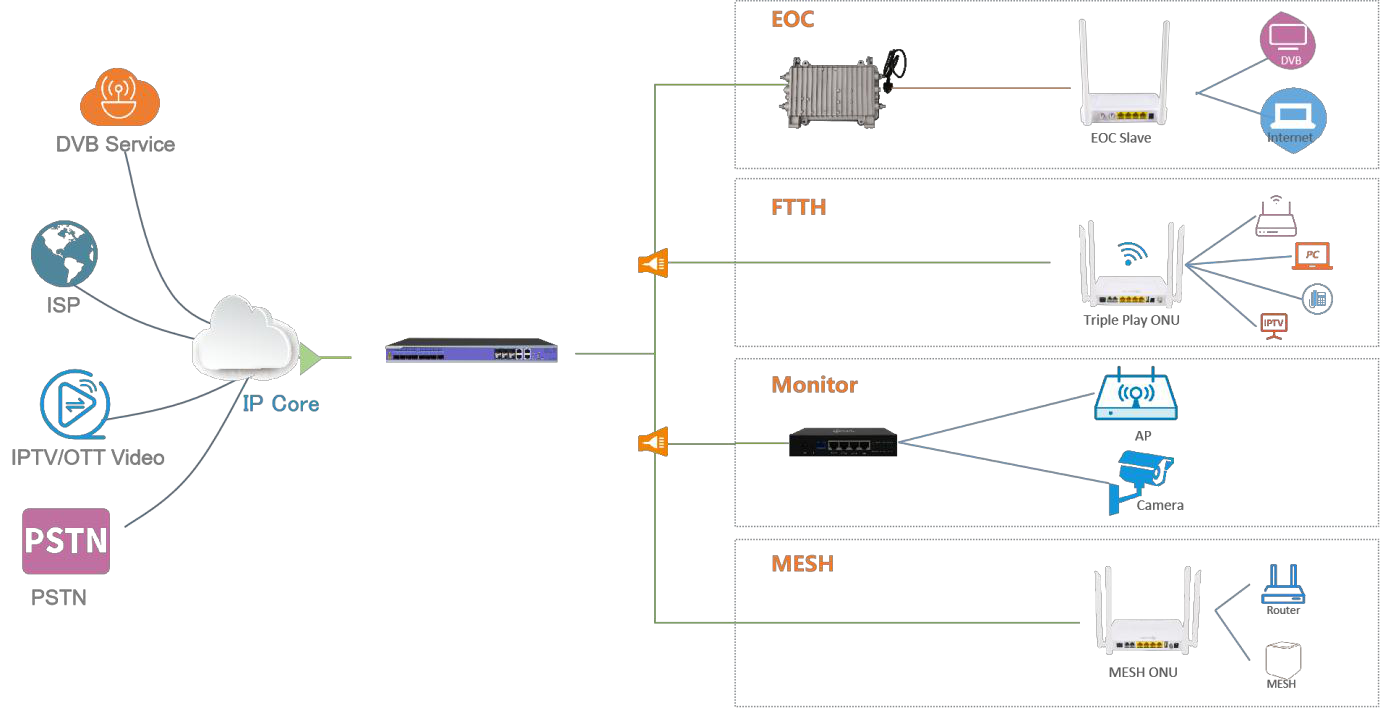

Applications
