FD1608S-B1

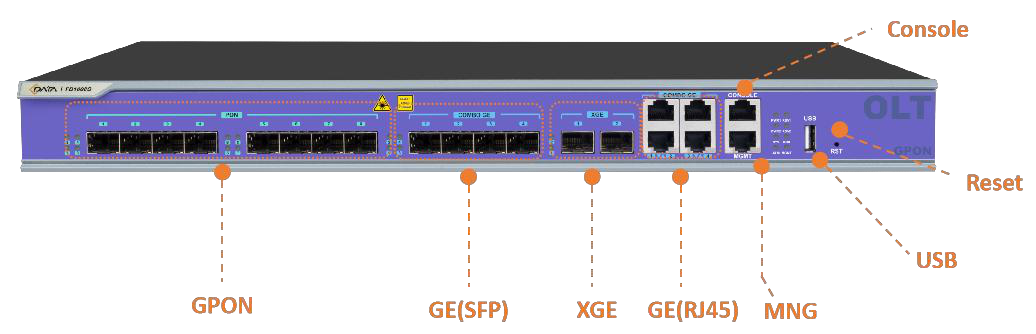

FD1608S-B1 is a high-performance GPON OLT device that complies with ITU G.984.x and FSAN standards. It features 8 GPON ports, 4 uplink GE ports, 4 uplink SFP ports, and 2 10GE uplink ports, supporting up to 1024 terminal connections with a splitting ratio of 1:128.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Rack Type | 1U 19-inch standard box |
| Uplink Port Quantity | 4 |
| Uplink Port Type | 10/100/1000M auto-negotiation Ethernet ports |
| SFP Interface Quantity | 4 |
| 10GE Port Quantity | 2 |
| PON Port Quantity | 8 |
| Physical Interface | SFP |
| Interface Type | ITU-TG.984.2 Class B+/Class C+ |
| Max Splitting Ratio | 1:128 |
| Management Port Type | 1 100/1000BASE-Tx out-band Ethernet port, 1 CONSOLE local management port |
| USB Port Quantity | 1 |
| Transmission Distance | 20KM |
| Port Rate | Downstream: 2.5Gbps, Upstream: 1.25Gbps |
| Wavelength | Forwarding: 1490nm, Receiving: 1310nm |
| Fiber Type | 9/125μm SMF (Single Mode Fiber) |
| Light Transmission Power | Class B+: +1.5~+5dBm, Class C+: +3~+7dBm |
| Receiving Sensitivity | Class B+: -28dBm, Class C+: -30dBm |
| Saturation Power | Class B+: -8dBm, Class C+: -12dBm |
| Network Management Method | Support CLI |
| Network Management Method | SNMP |
| Network Management Method | TELNET |
| Network Management Method | SSH |
| Network Management Method | WEB |
| Business Capabilities | Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration. |
| Backplane Bandwidth | 78G |
| Size | 440*44*276mm |
| Weight | 4.5kg |

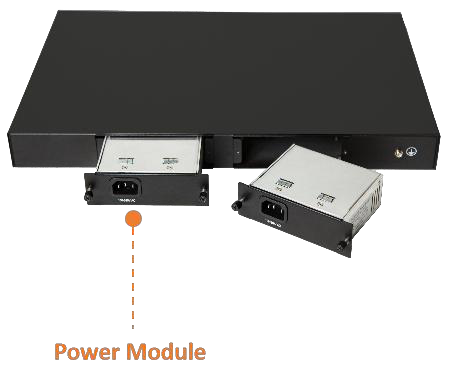

| Power Supply | 220VAC: AC: 100V~240V, 47/63Hz; -48DC: DC: 40V~72V |
| BBU Voltage | DC: 11V~14V |
| Maximum Power | 78W |
| Working temperature | -15~50°C |
| Storage Temperature | -40~85°C |
| Humidity | 5~90% (Non-condensing) |
