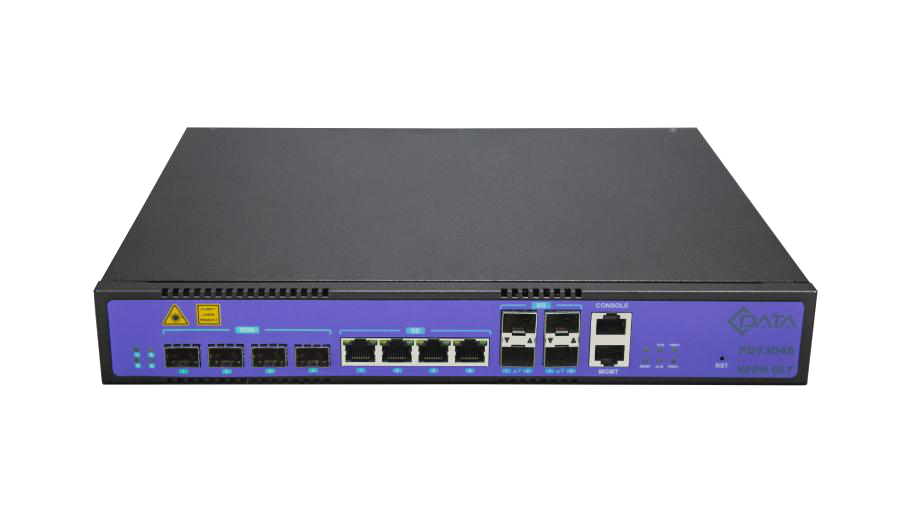

FD1304S 4PON Ports EPON OLT
FD1304S is a 1U rack-mounted EPON OLT device that complies with IEEE 802.3x and FSAN standards. It features 4 uplink Ethernet ports, 4×10GE uplink ports, and 4 EPON ports, supporting a splitting ratio of 1:64 and up to 256 terminal connections.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Management Rack | 1U 19-inch standard box |
| Dimensions | 306mm(L)×44mm(W)×266mm(H) |
| Weight | 5kg |

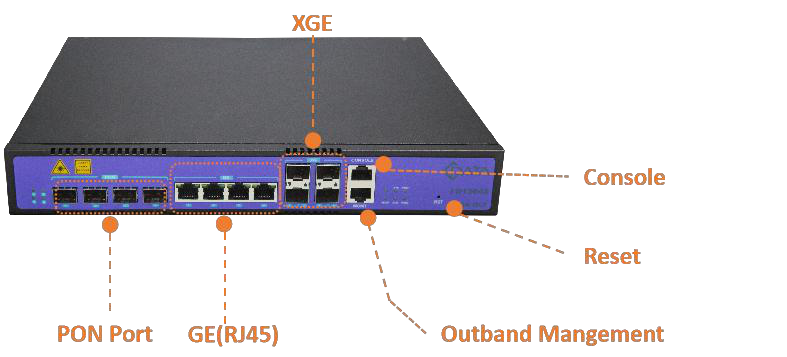

| Uplink Port | 4 10/100/1000M auto-negotiation Ethernet ports |
| 10-Gigabit Port Quantity | 4 |
| 10-Gigabit Physical Interface | 4 SFP+ interfaces |
| PON Port Physical Interface | SFP slot |
| PON Port Interface Type | EPON IEEE802.3ah |
| PON Port Max Splitting Ratio | 1:64 |
| Management Port Quantity | 1 |
| Management Port Type | 100/1000BASE-Tx out-band Ethernet port, 1 CONSOLE local management port |
| Transmission Distance | 20KM |
| Port Rate | EPON: Symmetrical 1.25Gbps |
| Wavelength | Forwarding: 1490nm, Receiving: 1310nm |
| Interface Type | SC/UPC |
| Fiber Type | 9/125μm SMF (Single Mode Fiber) |
| Light Transmission Power | PX20+: 2~5dBm |
| Receiving Sensitivity | PX20+: -28dBm |
| Saturation Power | PX20+: -8dBm |
| Backplane Bandwidth | 98G |
| AC Power Supply | 100V~240V, 47~63Hz |
| DC Power Supply | -36~72VDC |
| Working Temperature | -15~50℃ |
| Storage Temperature | -40~85℃ |
| Ambient Humidity | 5~90% (Non-condensing) |

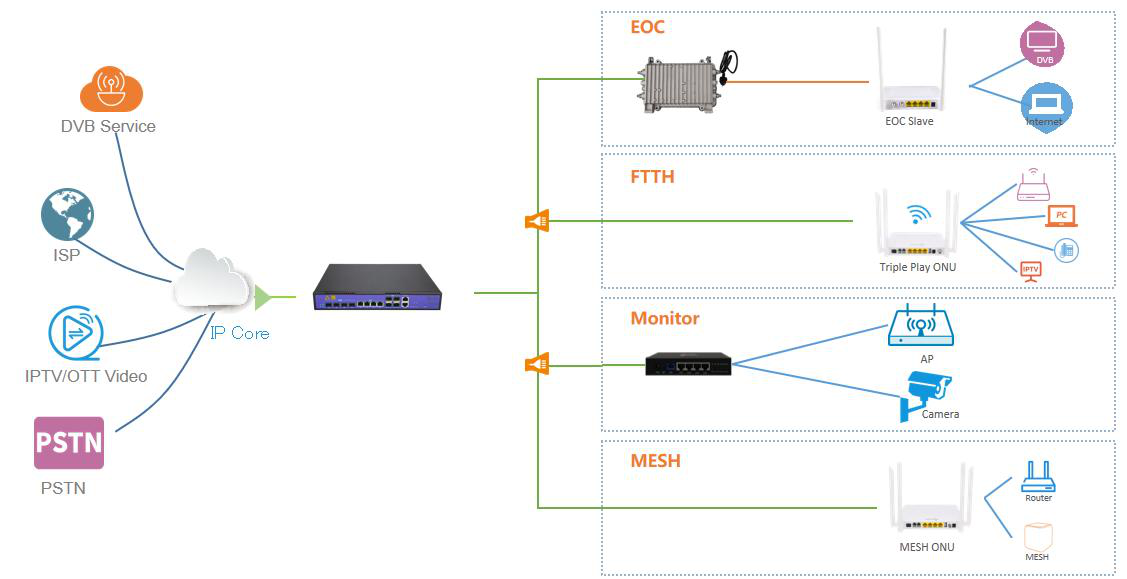

Applications
