CDTrans-EDFA

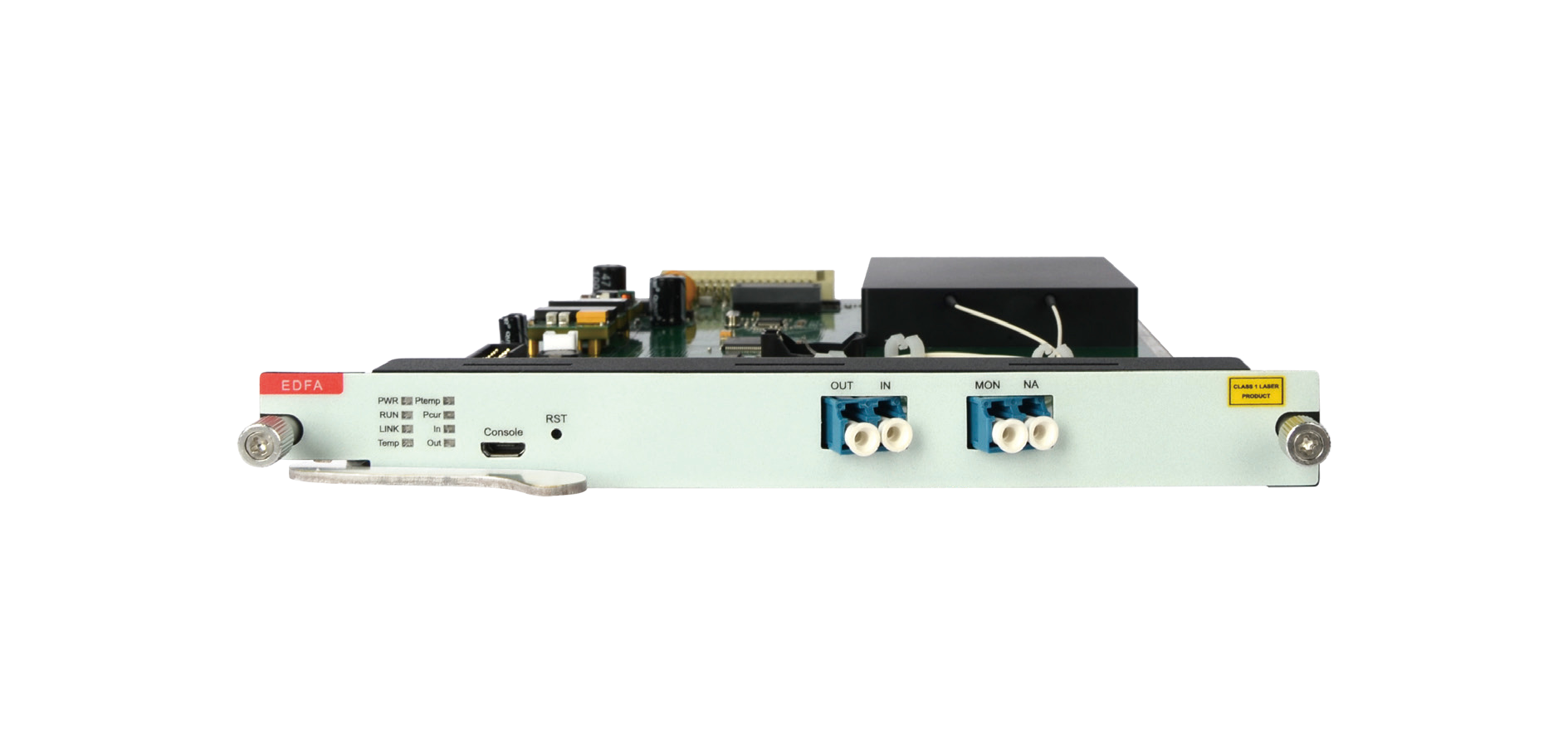

CDTrans-EDFA is a C-Band erbium-doped optical power amplifier with low noise and flat gain. It features a high-reliability pump laser, unique ATC and AGC circuit control, and professionally designed GFF and matched optical path design to optimize flatness and noise. It supports APC and AGC functions and is divided into power amplifier, line amplifier, and pre-amplifier.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Amplifier Type CDTrans-BA20G22 | boost amplifier |
| Amplifier Type CDTrans-LA20G22 | line amplifier |
| Amplifier Type CDTrans-PA20G32 | preamplifier |
| Operating Wavelength Range CDTrans-BA20G22 | 1528-1566nm |
| Operating Wavelength Range CDTrans-LA20G22 | 1528-1566nm |
| Operating Wavelength Range CDTrans-PA20G32 | 1528-1566nm |
| Input Optical Power Range CDTrans-BA20G22 | -23dBm~12dBm |
| Input Optical Power Range CDTrans-LA20G22 | -30dBm~5dBm |
| Input Optical Power Range CDTrans-PA20G32 | -30dBm~5dBm |
| Output Optical Power Range CDTrans-BA20G22 | -4dBm~20dBm |
| Output Optical Power Range CDTrans-LA20G22 | -11dBm~20dBm |
| Output Optical Power Range CDTrans-PA20G32 | -1dBm~20dBm |
| Adjustable Gain Range CDTrans-BA20G22 | 19dB~25dB |
| Adjustable Gain Range CDTrans-LA20G22 | 19dB~25dB |
| Adjustable Gain Range CDTrans-PA20G32 | 29dB~35dB |
| Gain Flatness | 1.5dB |
| Noise Coefficient | 5.5dB |
| Polarization Dependent Gain | 0.5dB |
| Polarization Mode Dispersion | 0.5ps |
| Input Return Loss | 45dB |
| Output Return Loss | 45dB |
| Control Mode | AGC (default), APC, ACC |
| Port | Input, 1*LC; Output, 1*LC; Monitoring, 1*LC |
| Network Management Function | CLI |
| Network Management Function | WEB |
| Dimension (H*W*D) | 170*22*245mm |
| Working Environment | Working temperature: -10°C~60°C; Storage temperature: -40°C~85°C; Humidity: 5%~90% without condensation |
| Power Consumption | <12W |
