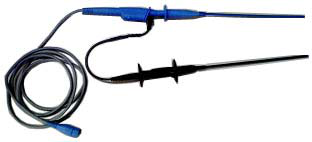

High-Voltage Measurement Accessories
High-Voltage Measurement Accessories are designed to enable safe high-voltage measurements when used with DL750, DL750P, SL1400, and SL1000 isolated input modules.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Bandwidth 10:1 Probe | DC to 100MHz (-3dB) |
| Frequency Bandwidth 100:1 Probe | DC to 200MHz (-3dB) |
| Attenuation Ratio 10:1 Probe | 1/10 (fixed) |
| Attenuation Ratio 100:1 Probe | 1/100 (fixed) |
| Maximum Input Voltage 10:1 Probe | 1000V (DC+ACpeak) |
| Maximum Input Voltage 100:1 Probe | 1000V (DC+ACpeak) / 3540V (DC+ACpeak) |
| Input Resistance 10:1 Probe | 10MΩ/18pF |
| Input Resistance 100:1 Probe | 100MΩ/7pF |
| Compensation Range 10:1 Probe | 20 to 45pF |
| Compensation Range 100:1 Probe | 15 to 45pF |
| Length 10:1 Probe | 1.5m |
| Length 100:1 Probe | 1.5m |
| Length Plug-on Clip | 0.26m/0.3m/0.4m |
| Max Input Voltage Safety BNC Cable | 1000V CATII |
| Length Safety BNC Cable | 1m |
| Max Input Voltage BNC Safety Adapter Lead | 1000V CATII |
| Length BNC Safety Adapter Lead | 1.5m |
| Max Input Voltage Long Test Clips | 1000V CATII |
| Length Long Test Clips | 0.3m |
| Max Input Voltage Safety Mini Clips | 1000V CATII |
| Length Safety Mini Clips | 0.3m |
| Max Input Voltage Large Alligator Clips | 1000V CATII |
| Length Large Alligator Clips | 0.3m |
| Max Input Voltage Alligator Clips | 1000V CATII |
| Length Alligator Clips | 0.3m |
| Max Input Voltage Fork Terminal Adapters | 1000V CATII |
| Length Fork Terminal Adapters | 45mm |
