AQ2200 Series
The AQ2200 Series is a versatile measurement system designed for evaluating optical components and optical transmission systems. It offers a variety of measurement modules, including light sources, optical power meters, optical attenuators, and optical switches.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 1310nm, 1550nm, 1625nm, 1650nm |

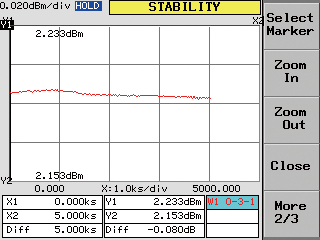

| Power Stability | ±0.005dB |
| Optical Power | +10dBm |
| Insertion Loss | ≤0.01dB |
| Fiber Type | SMF/ITU-T G.652, FC/APC |
| Frequency Range | 196.25-191.50THz (C band), 1570.01-1608.79THz (L band) |
| Frequency Stability | ±0.3GHz |
| Side Mode Suppression Ratio | >45dB |
| Optical Switch Channels | 1x2, 1x4, 1x8, 1x16 |
| Optical Switch Insertion Loss | ≤1.4dB (1x2), ≤7.4dB (1x4), ≤10.8dB (1x8), ≤13.8dB (1x16) |
| Optical Switch Return Loss | ≥50dB |
| Optical Power Meter Wavelength Range | 800-1700nm |
| Optical Power Meter Power Range | -90 to +15dBm |
| Optical Power Meter Probe Size | InGaAs 5.8mm, Si 5.8mm |
| Optical Attenuator Wavelength Range | 1200-1700nm |
| Optical Attenuator Insertion Loss | ≤0.1dB |
| Optical Attenuator Attenuation Range | 0-60dB |
| Optical Attenuator Return Loss | ≥45dB |
| Optical Receiver Interface | SFP |
| Optical Receiver Interface | XFP |
| Optical Receiver Interface | XENPAK |
| Power Supply Voltage Range | -7.5V to +5.25V |
| Power Supply Current Range | 0.1A to 3.0A |
