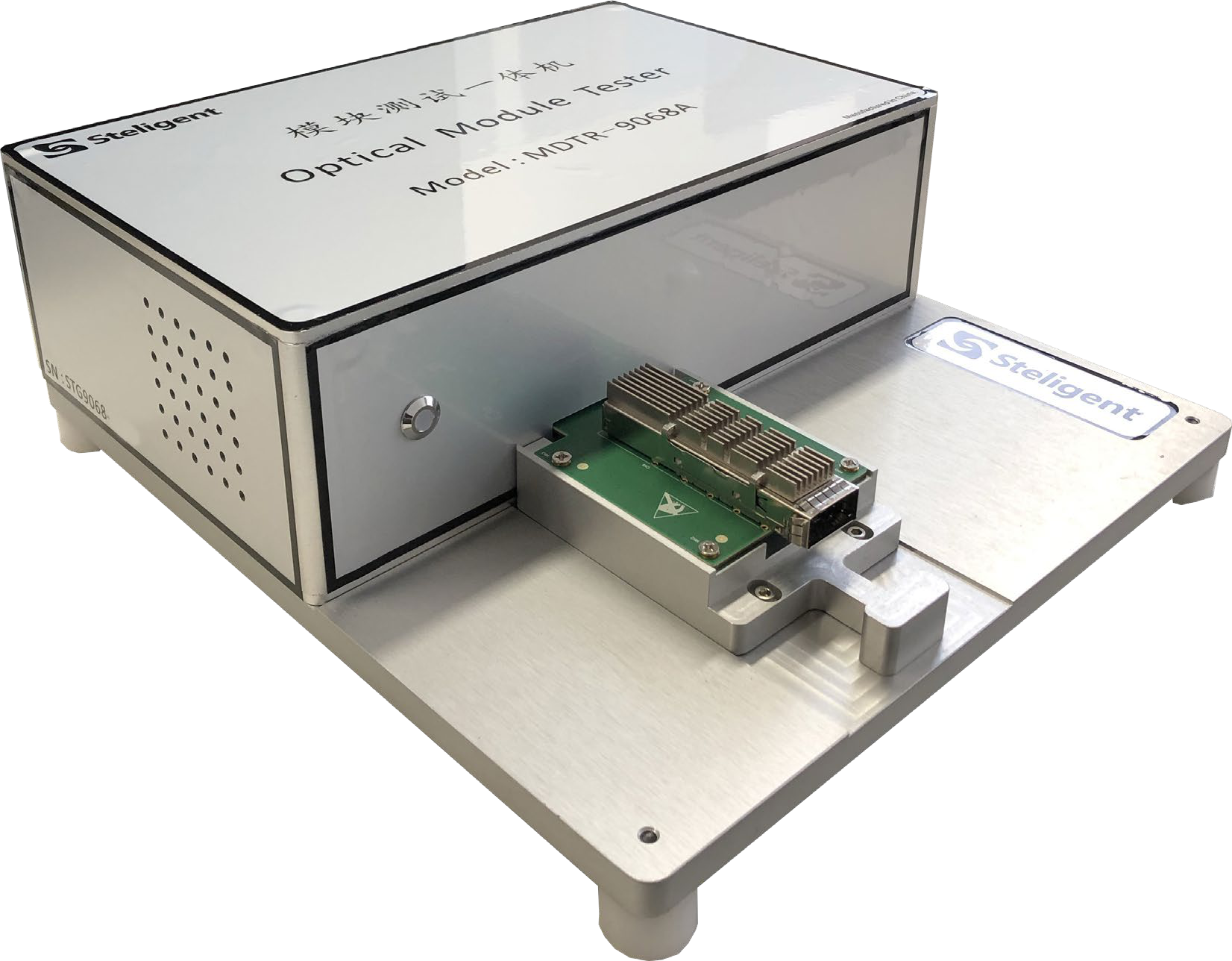

MDTR-9068A Optical Module Tester
MDTR-9068A is a high-performance integrated optical module tester designed for flexible testing, verification, and analysis of 25G, 100G, and 400G optical modules. It supports high-speed testing and module state monitoring, making it ideal for large-scale module production testing.
Specification Snapshot
Maximum Differential Input Voltage
1.0V
Request a Quote
Download Datasheet
Overview
MDTR-9068A is a high-performance integrated optical module tester designed for flexible testing, verification, and analysis of 25G, 100G, and 400G optical modules. It supports high-speed testing and module state monitoring, making it ideal for large-scale module production testing.
Specifications

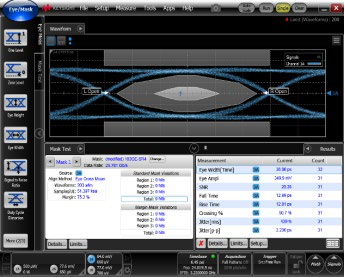

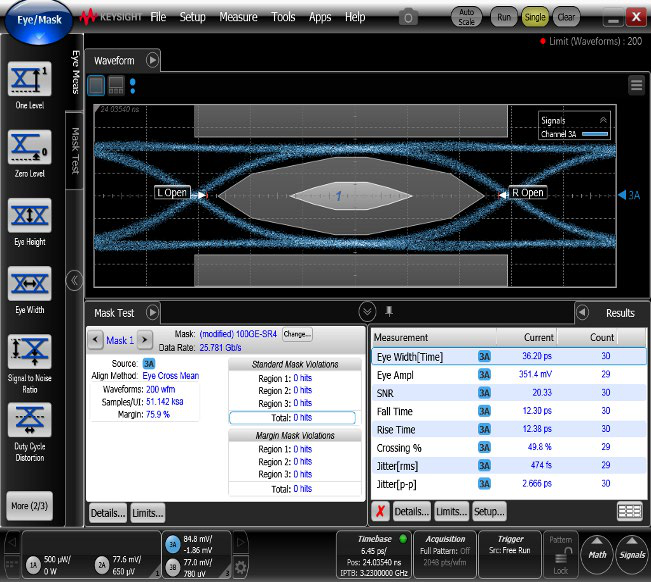

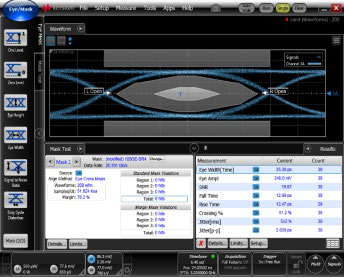

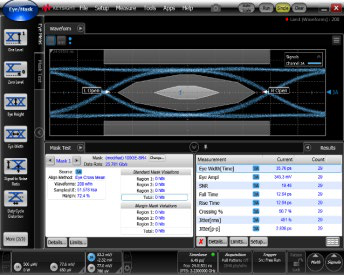

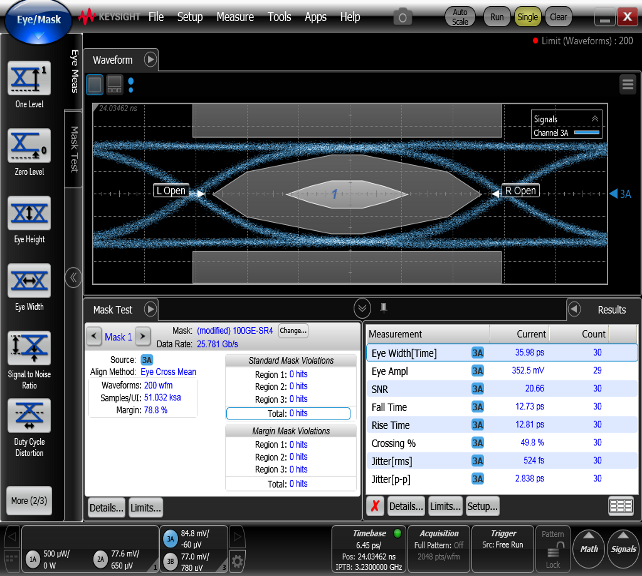

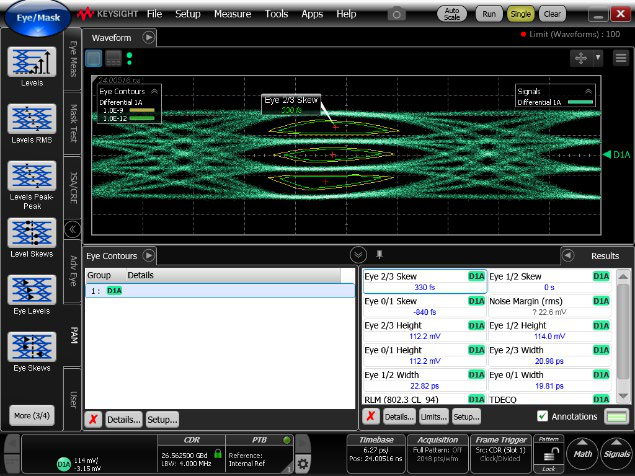

| Parameter | Value |
|---|---|
| Supported Patterns | PRBS7/9/11/13/15/16/23/31/58, PRBS7/9/11/13/15/16/23/31/58Q, SSPRQ |
| Standard Channel Output Clock Frequency | 8.5GHz-28GHz |
| Output NRZ Rate | 25.78125/26.5625GbpsGbps |
| Output PAM4 Rate | 25.78125/26.5625Gbaud |
| Clock Input | Internal clock |
| Random Jitter Rj | ≤300ps@20MHz |
| Total Jitter Tj | ≤0.25UI |
| Duty Cycle Distortion DCD | ≤0.035UI |
| Deterministic Jitter Dj | ≤0.15UI |
| Rise/Fall Time | ≤13ps |
| Single-ended Output | 200-550mV |
| Differential Output | 400-1100mV |
| Polarity Inversion | Supported |
| Post-cursor1 | 0-6dB, 12 levels adjustable |
| Post-cursor2 | 0-6dB, 12 levels adjustable |
| Pre-cursor1 | 0-6dB, 12 levels adjustable |
| Coupling | DC |
| Clock Pattern | CLK, CLK_DIV2, CLK_DIV4, CLK_DIV8, CLK_DIV16, CLKDIV_32 |
| Random Pattern | PRBS7/9/11/13/15/16/23/31/58, PRBS7/9/11/13/15/16/23/31/58Q, SSPRQ |
| PAM4 Supported Pattern | PRBS7/9/11/13/15/16/23/31/58, PRBS7/9/11/13/15/16/23/31/58Q, SSPRQ |
| Custom Pattern | 128bit custom |
| Maximum Differential Input Voltage | 1.0V |
| Input Sensitivity | 40mV |
| Input Pattern | NRZ or PAM4 |
| Built-in CDR Input Rate | 25.78125/26.5625Gbps NRZ, 25.78125/26.5625Gbaud PAM4 |
| Maximum Idle Code Length | 120bit running length |
| Module Control Power Specification | DC Supply 2V-4V, Maximum Output Current 6A |
| Module Operating Current Detection Accuracy | 0.1mA |
| Module Plug-in Statistics | Supported |
Applications
1. Flexible testing, verification, and analysis of 25G, 100G, and 400G optical modules 2. High-density module testing for fast production lines and expansion 3. Module characterization, code stream detection, direct current supply, and module state monitoring
Key Features
1. High-speed testing and verification of optical modules 2. Supports multiple module types including SFP28, QSFP28, and 400G QSFP DD 3. Integrated error code testing and reading 4. Supports MSA protocol and module direct current testing 5. Supports deep temperature sensing with up to 8 channels 6. Complete FEC functionality including pre and post error rate testing 7. Supports software control of DSP for line side testing
Datasheet
Product Datasheet
PDF
